Weldy

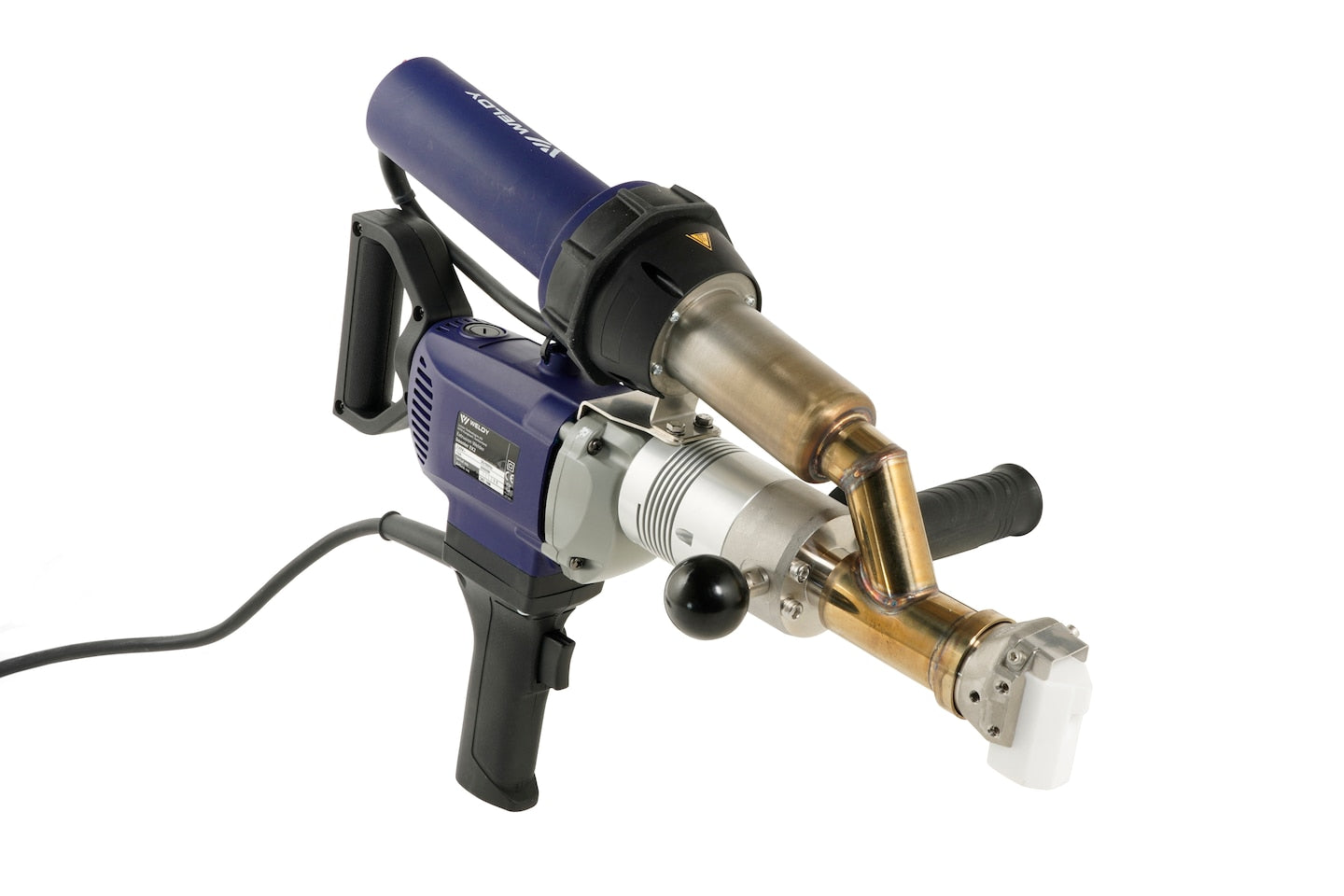

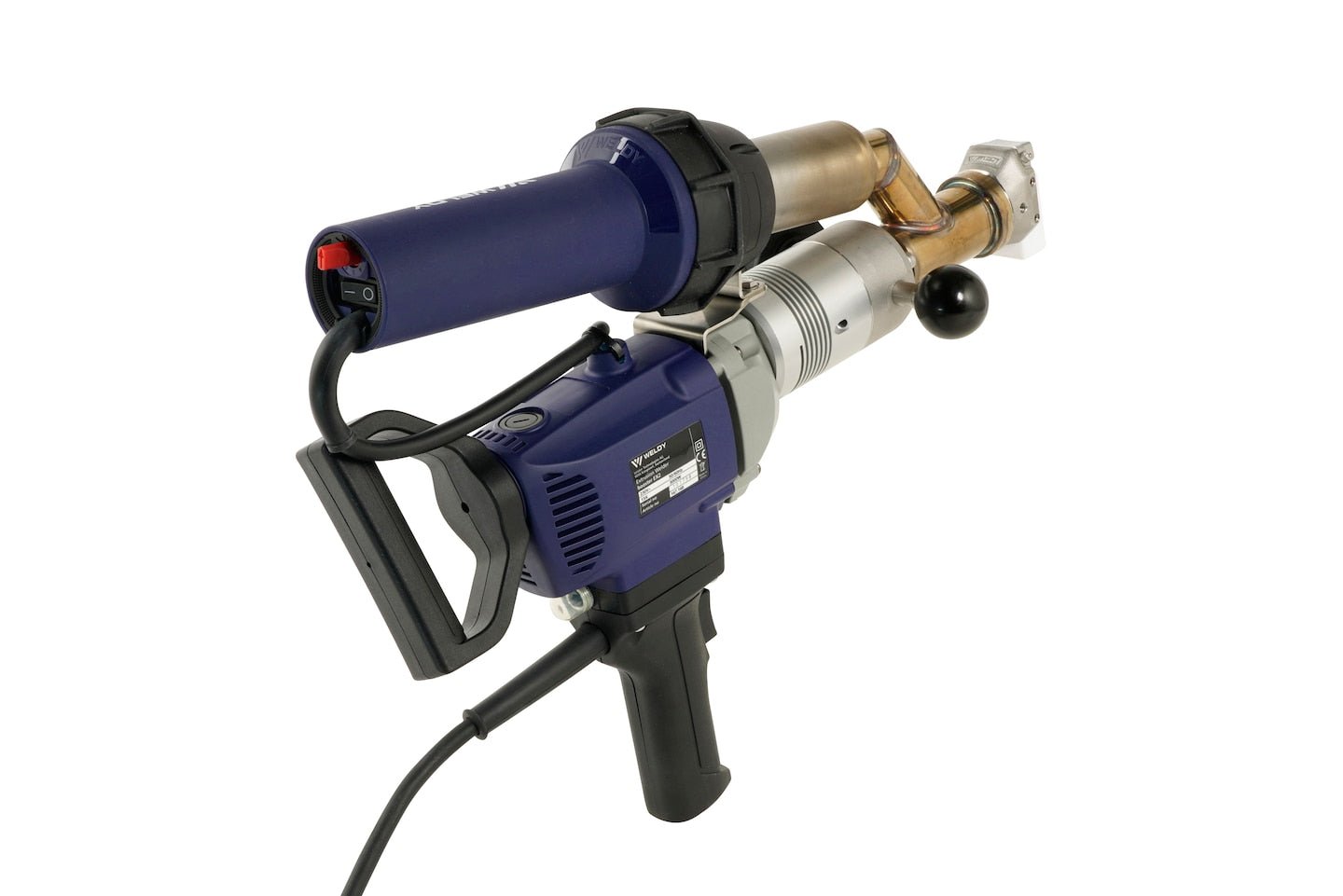

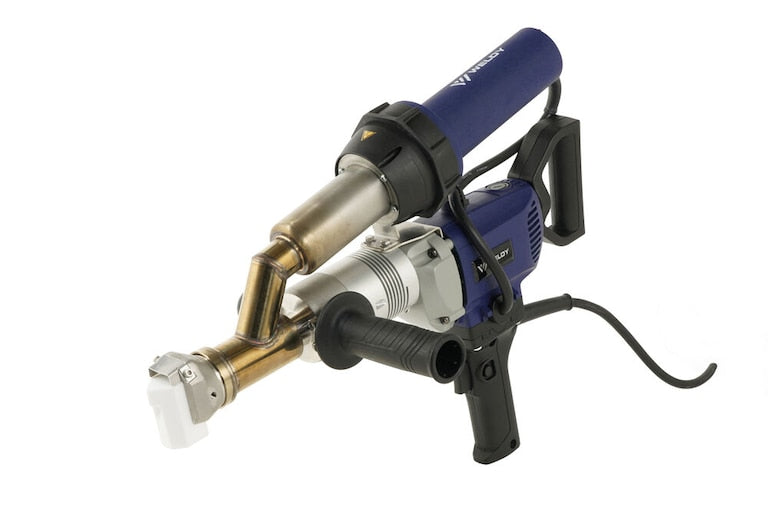

Booster EX2 Welding Extruder 230 V / 3000 W

The compact, hand-held extrusion welder, booster EX2, from Weldy is well-suited for plastic welding in tank and container construction. Whenever complete plastic containers and pipes are welded, this extruder excels with its maximum output of 2.5 kg/h. The Weldy booster EX2 processes the common polyolefins or thermoplastics PE and PP. Its multi-position, mountable handle makes the booster EX2 extremely ergonomic.

The double-sided wire retraction from the left or right side facilitates work in tight spaces. Thanks to these features, the booster EX2 extrusion welder is light, compact, versatile and can be used with little effort in container construction. The powerful blower with an easy to change heating element ensures the reliability of this hand extruder welder. The durable transport case included in the scope of delivery ensures that the hand extruder and accessories are kept safe and free of any dust/debris.

Highlights
  • Optical overload protection for more control
  • lockable button for continuous welding
  • Welding rod can be used on both sides
  • Welding shoes 360° adjustable
  • Easily replaceable carbon brush

Applications

  • Aquaculture construction and repair
  • Boat construction and repair
  • Pipe and tube welding

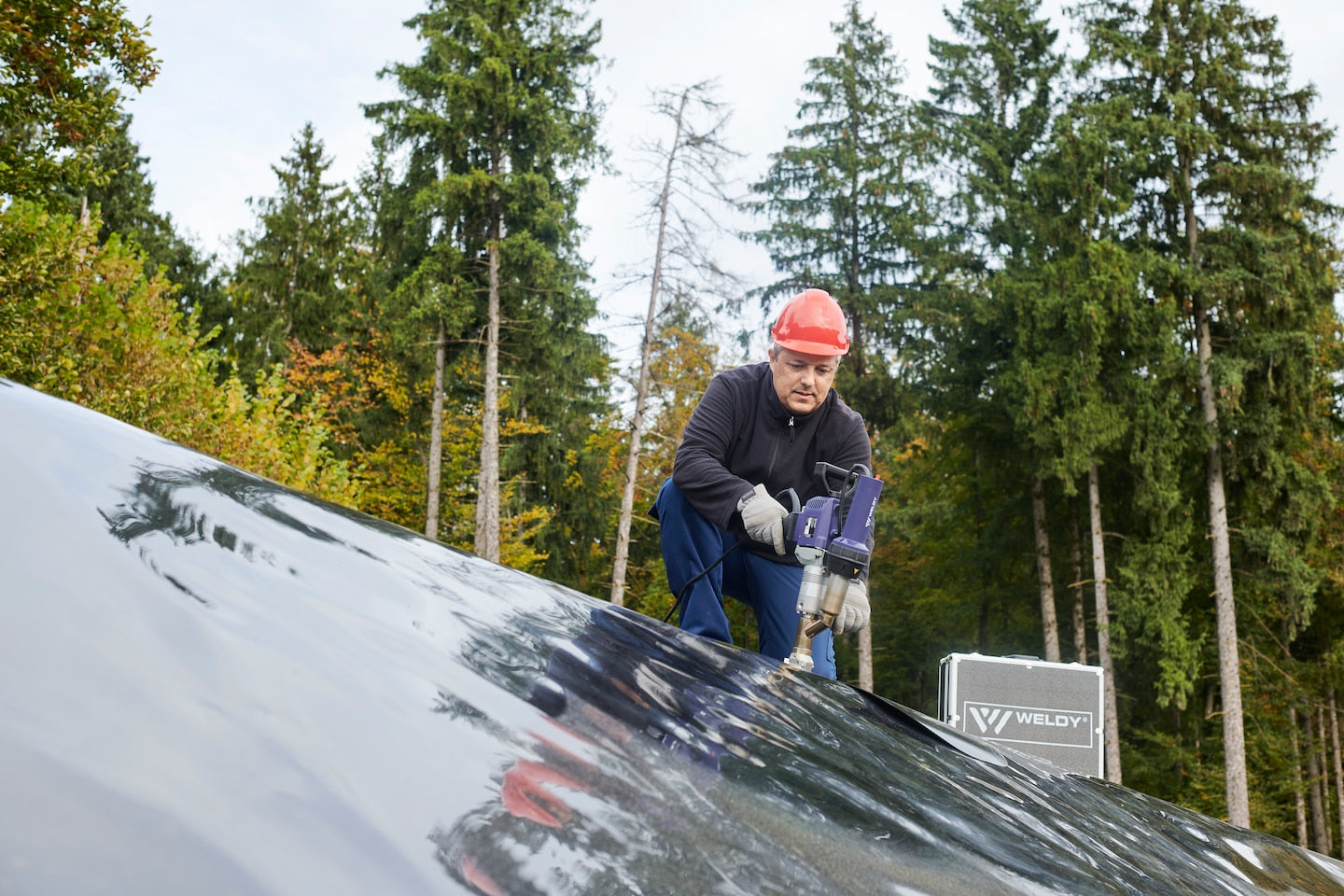

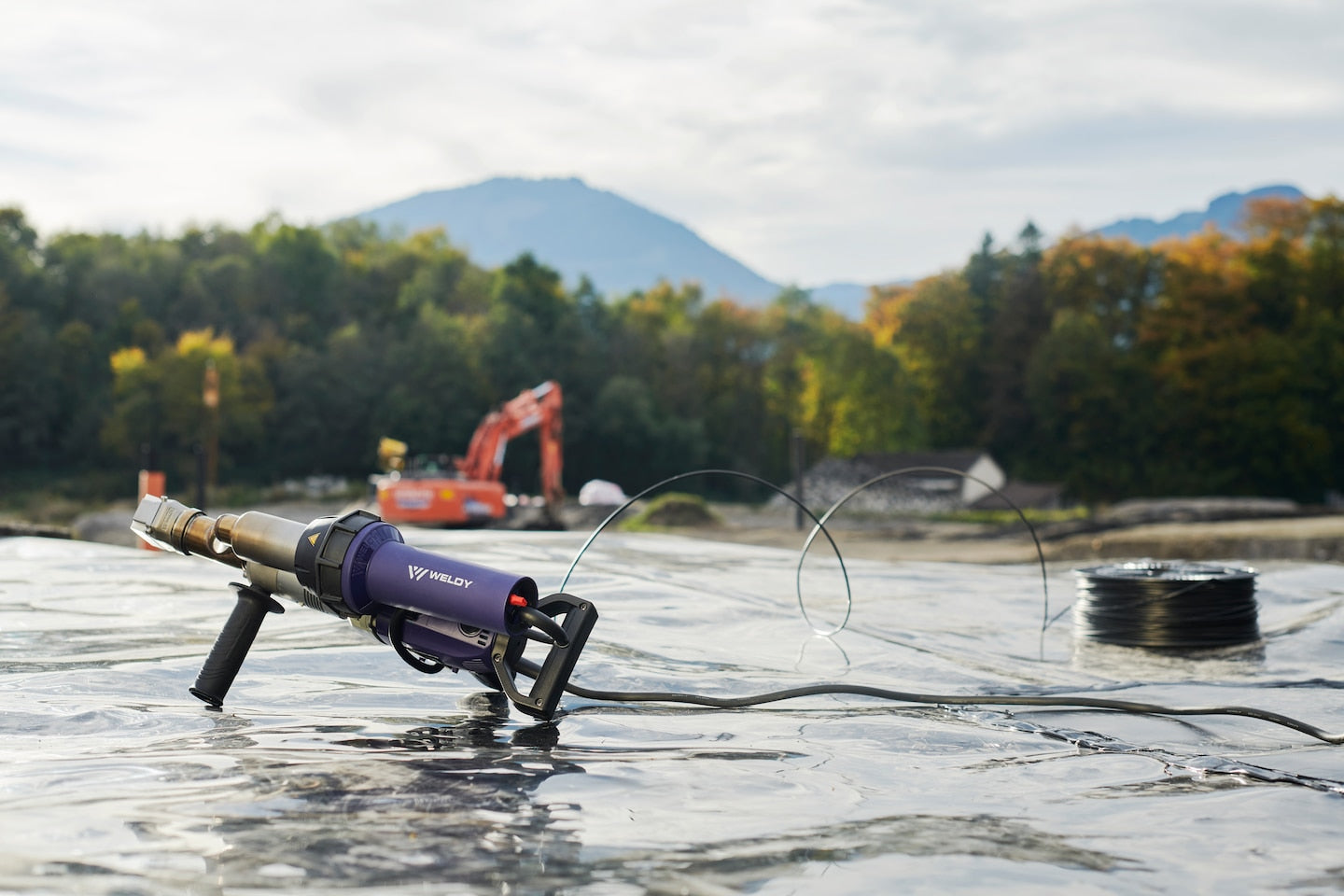

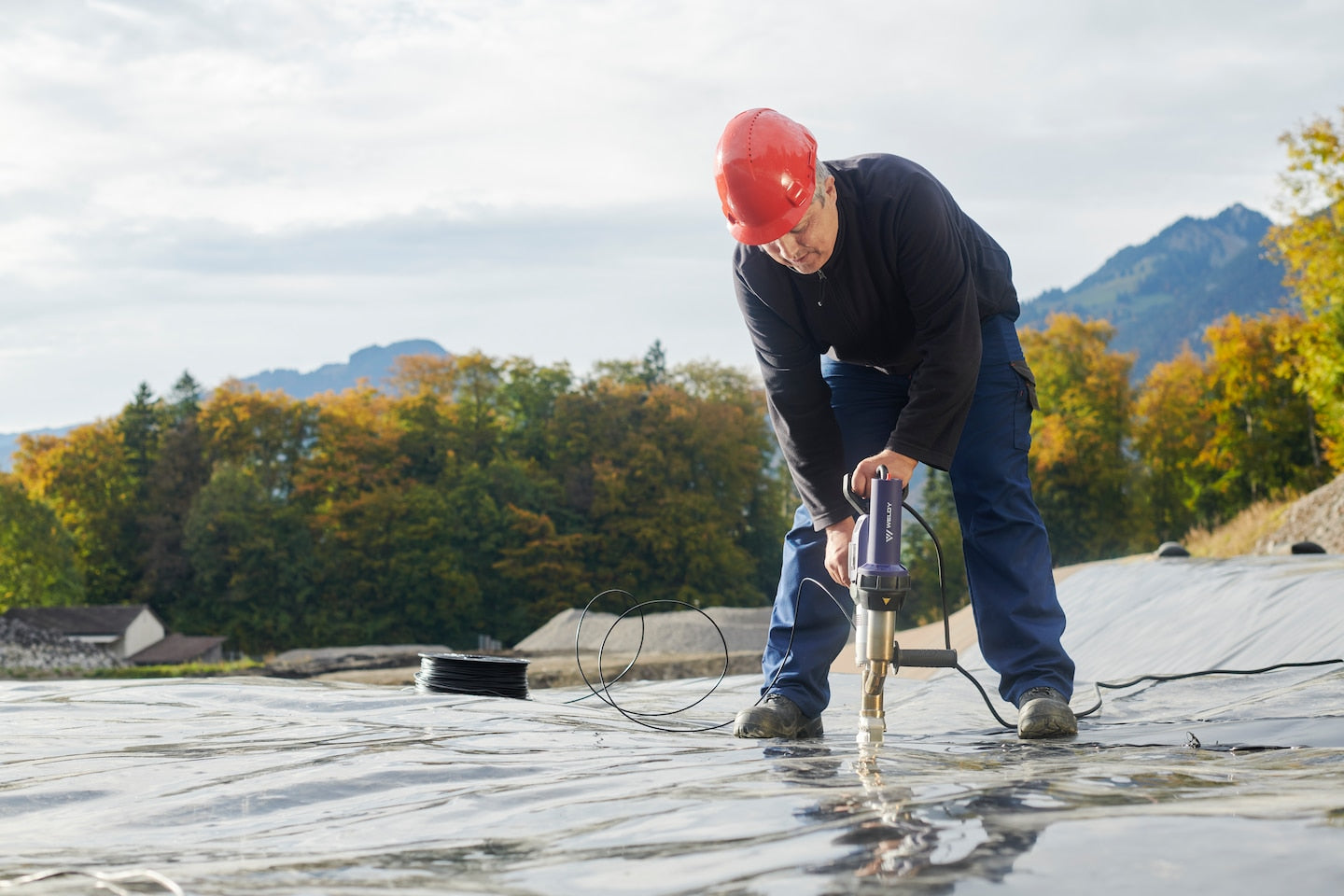

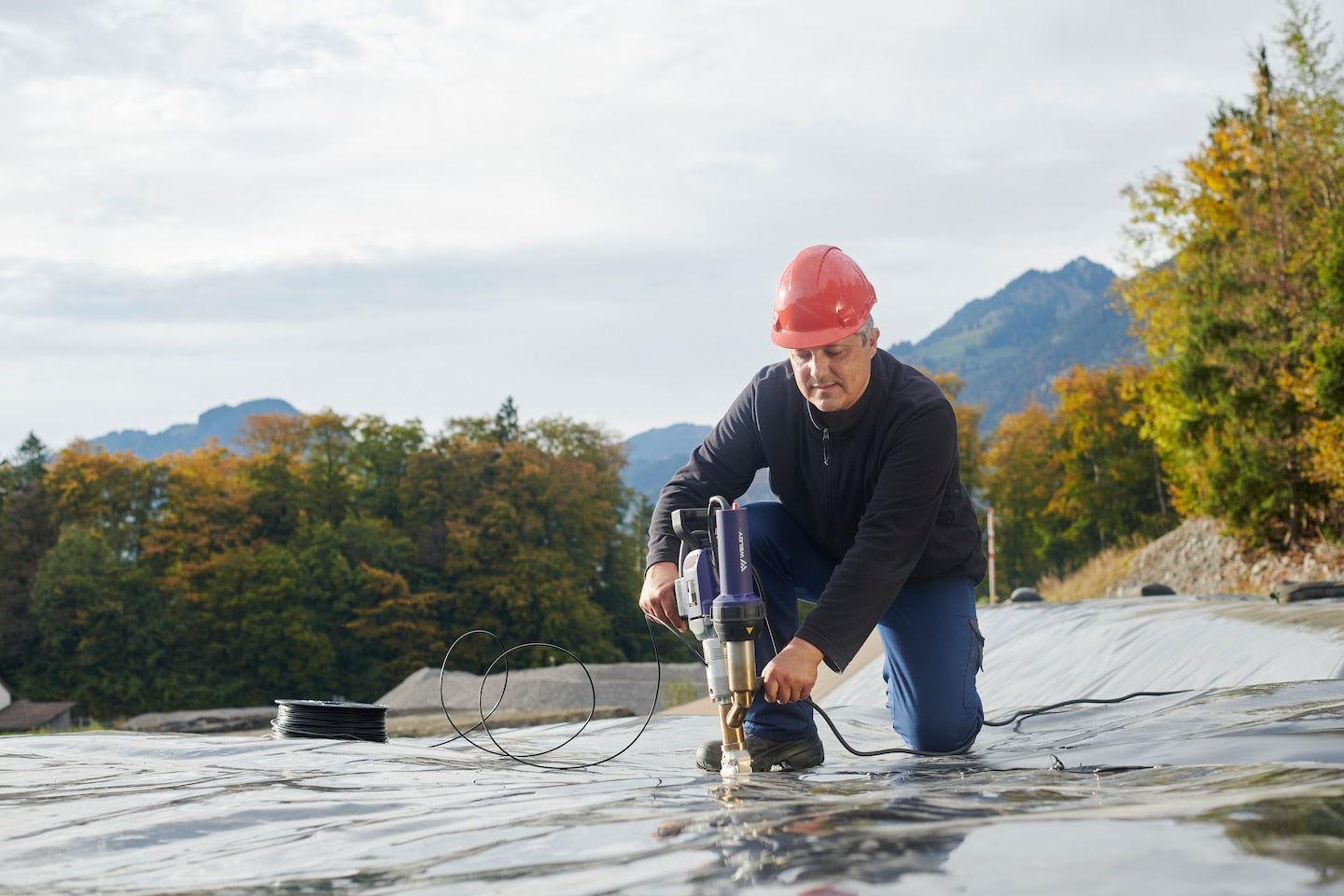

  • Reservoirs and canals waterproofing

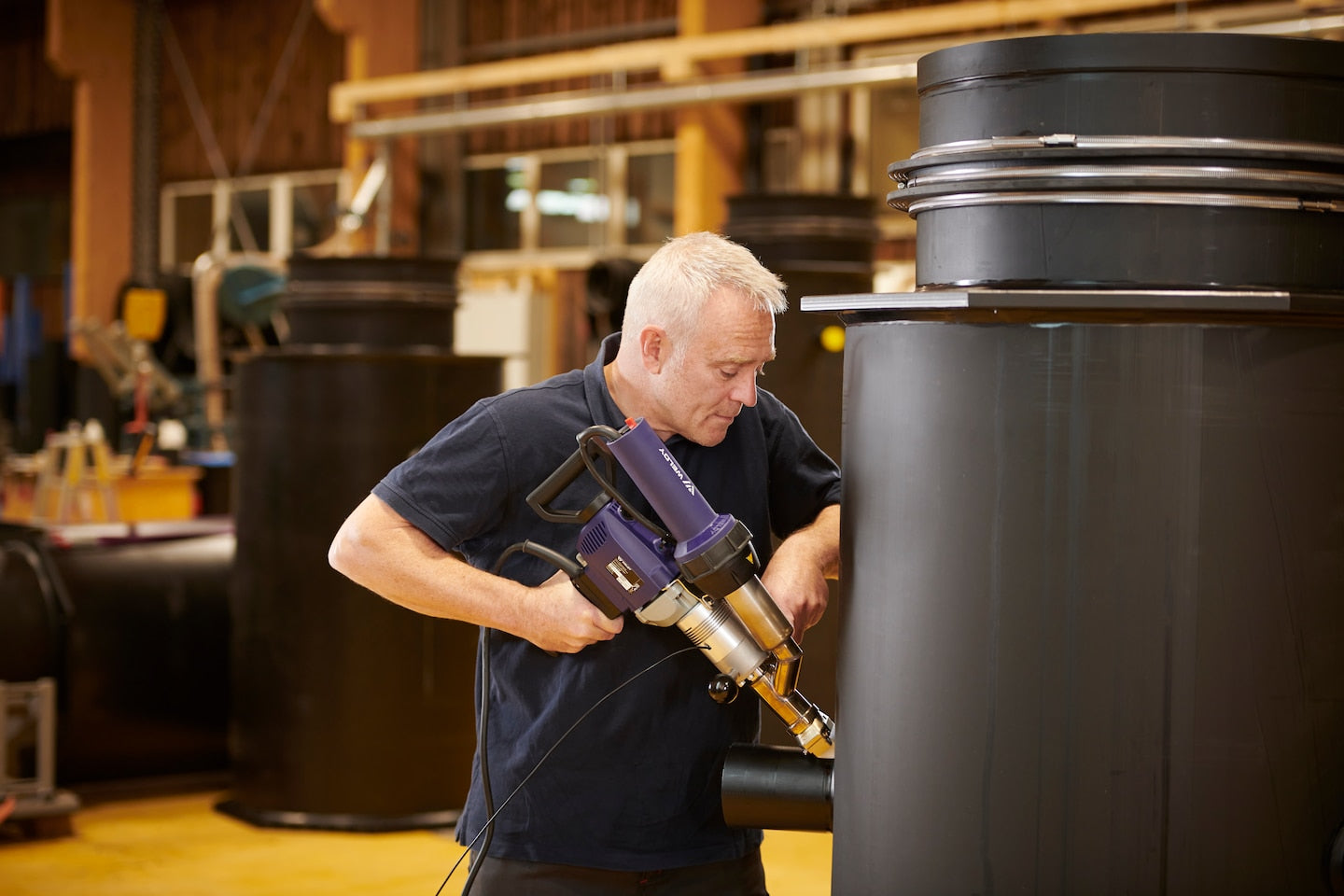

  • Plastic tank fabrication
Technical Data

VOLTAGE 230 V
FREQUENCY
 50/60 Hz
POWER 3000 W
WELDING ADDITIVE ø 3–4 mm / 0.12–0.16 in
MATERIAL OUTPUT Ø 3 MM 1.5 kg/h
MATERIAL OUTPUT Ø 4 MM 2.2 kg/h
WELDING MATERIALS HDPE , LDPE , LLDPE , PP
WELDABLE SHEET THICKNESS 10 - 15 mm
AIR GUIDE Internal
SCREW HEATING Air heated
AIR TEMPERATURE CONTROL Open loop
LQS No
DISPLAY No
BRUSHLESS BLOWER MOTOR No
BRUSHLESS DRIVE MOTOR No
LED WORKING LIGHT No
DIMENSION (L x W x H) 500 x 140 x 380 mm
WEIGHT 6.4 KG
POWER CABLE LENGTH 3.0 M
PLUG EU, 2 poles, 16A
NOISE EMISSION LEVEL
 74 dB (A)
CONFORMITY MARK
CE
PROTECTION CLASS
 II
COUNTRY OF ORIGIN
 CN
