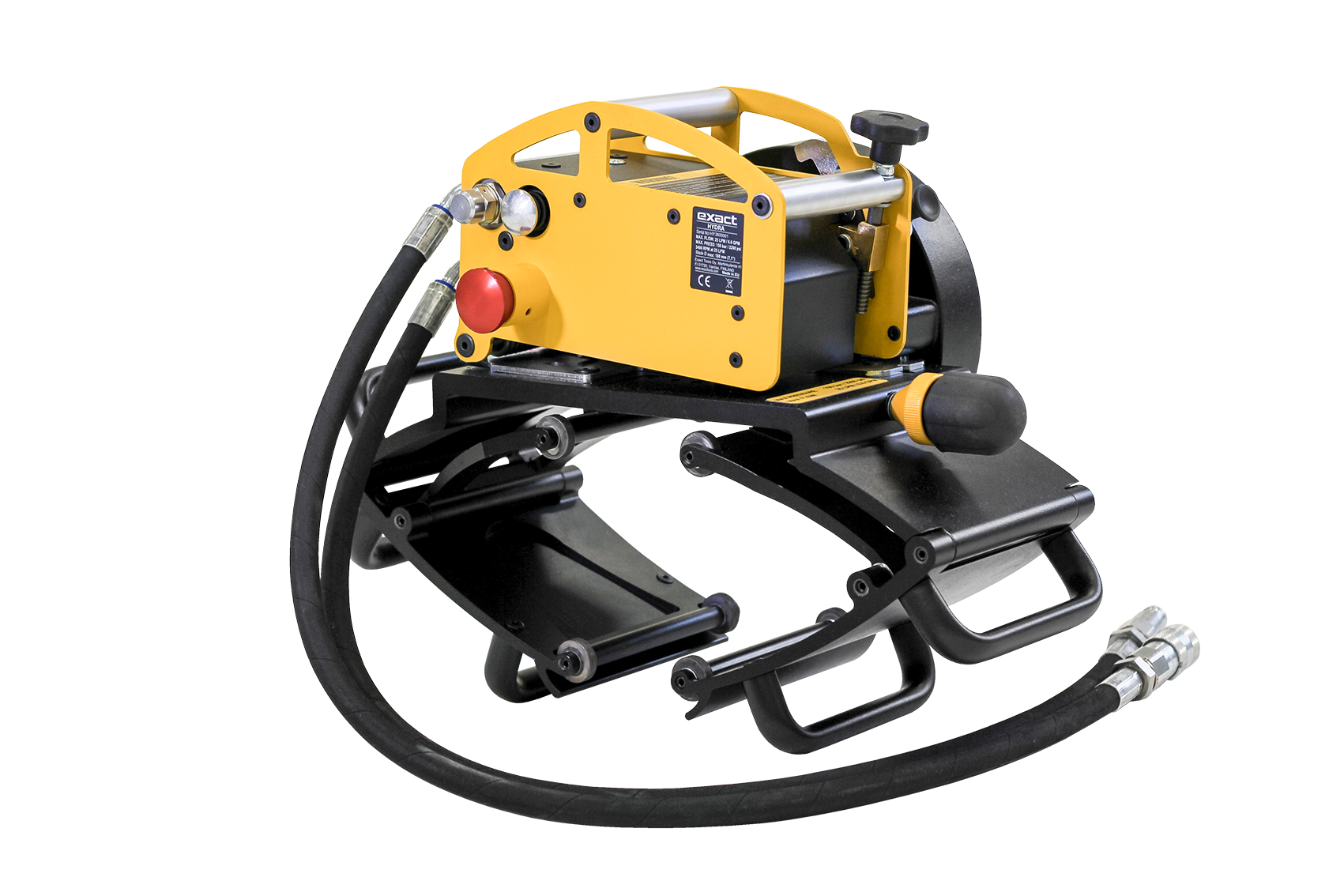

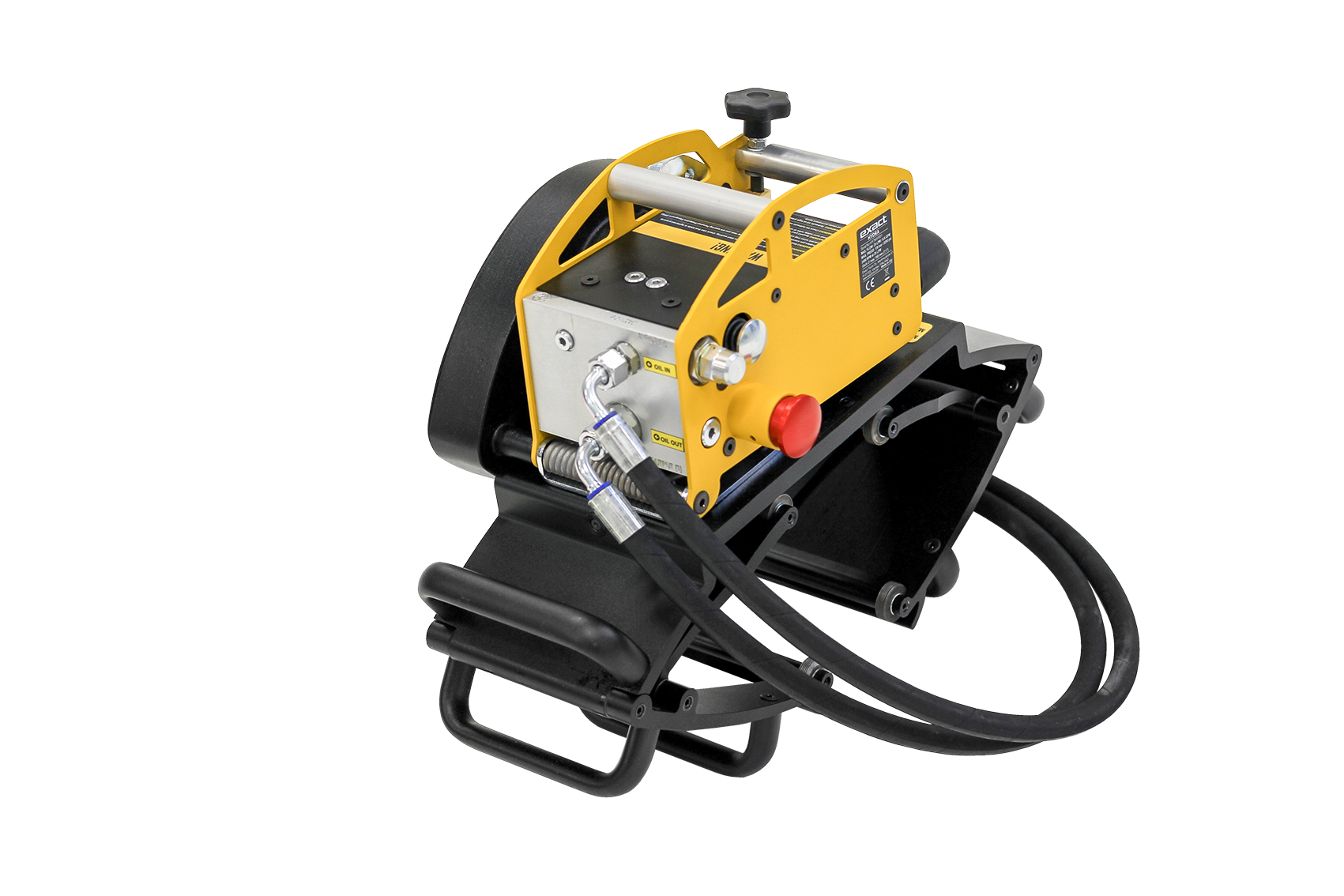

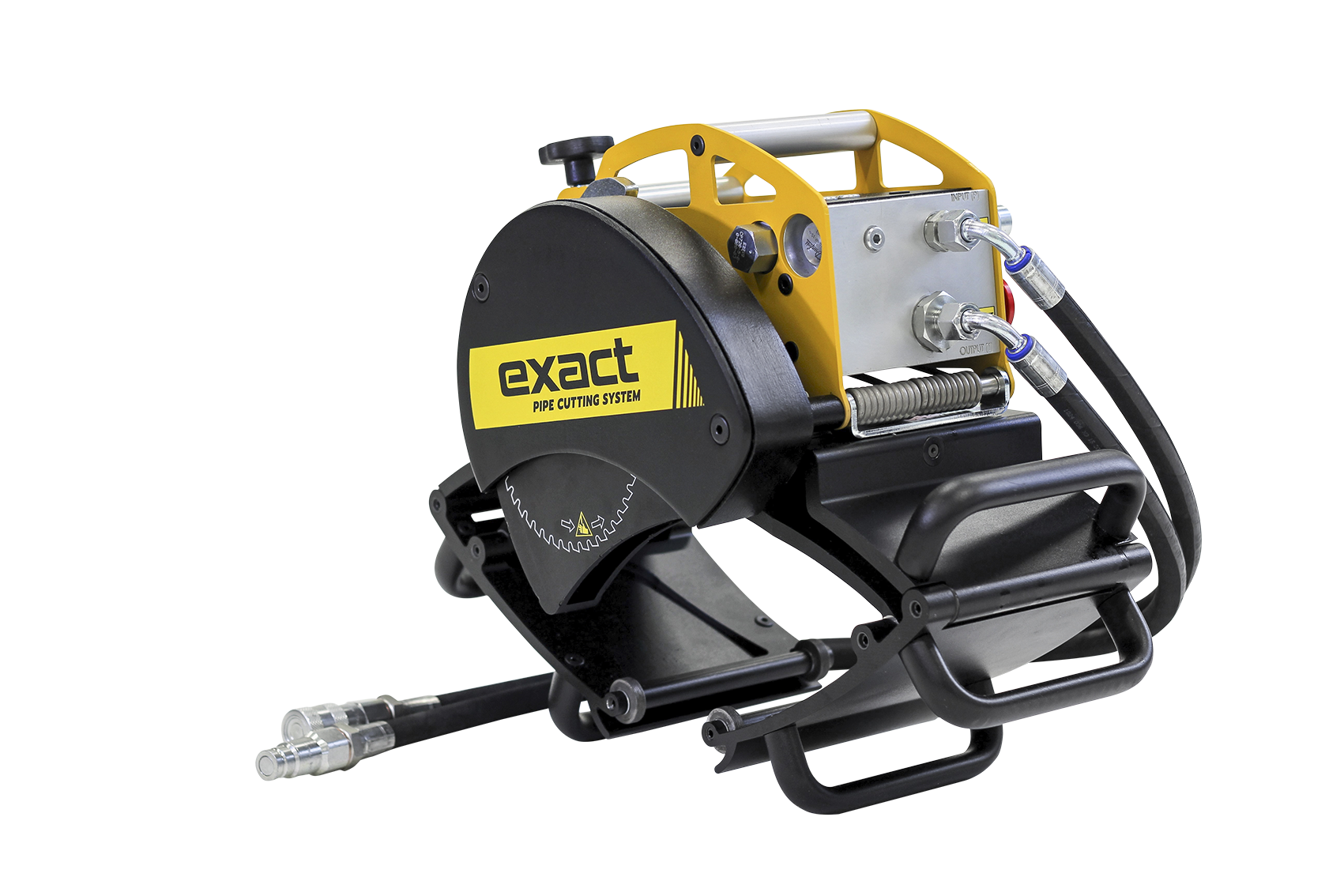

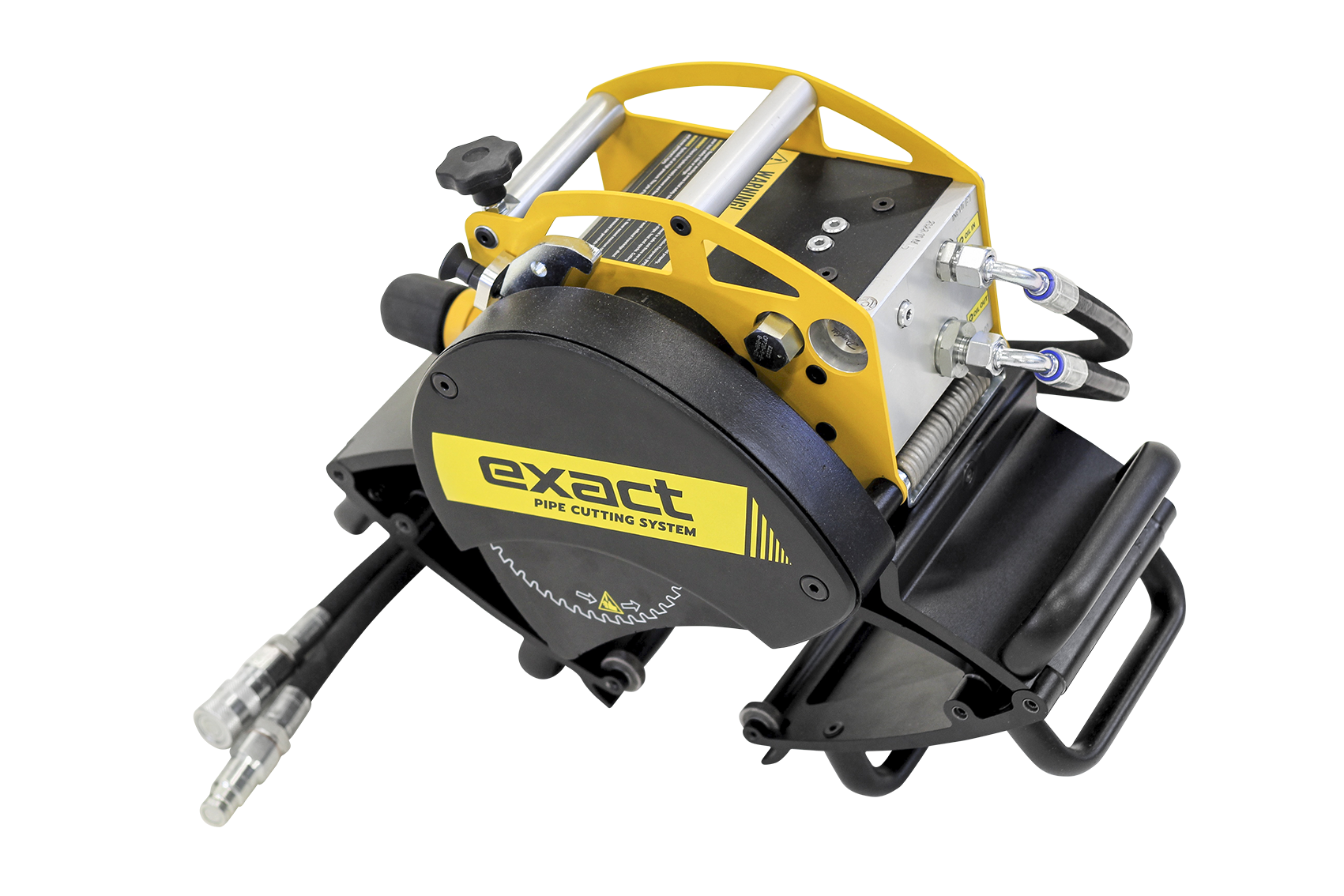

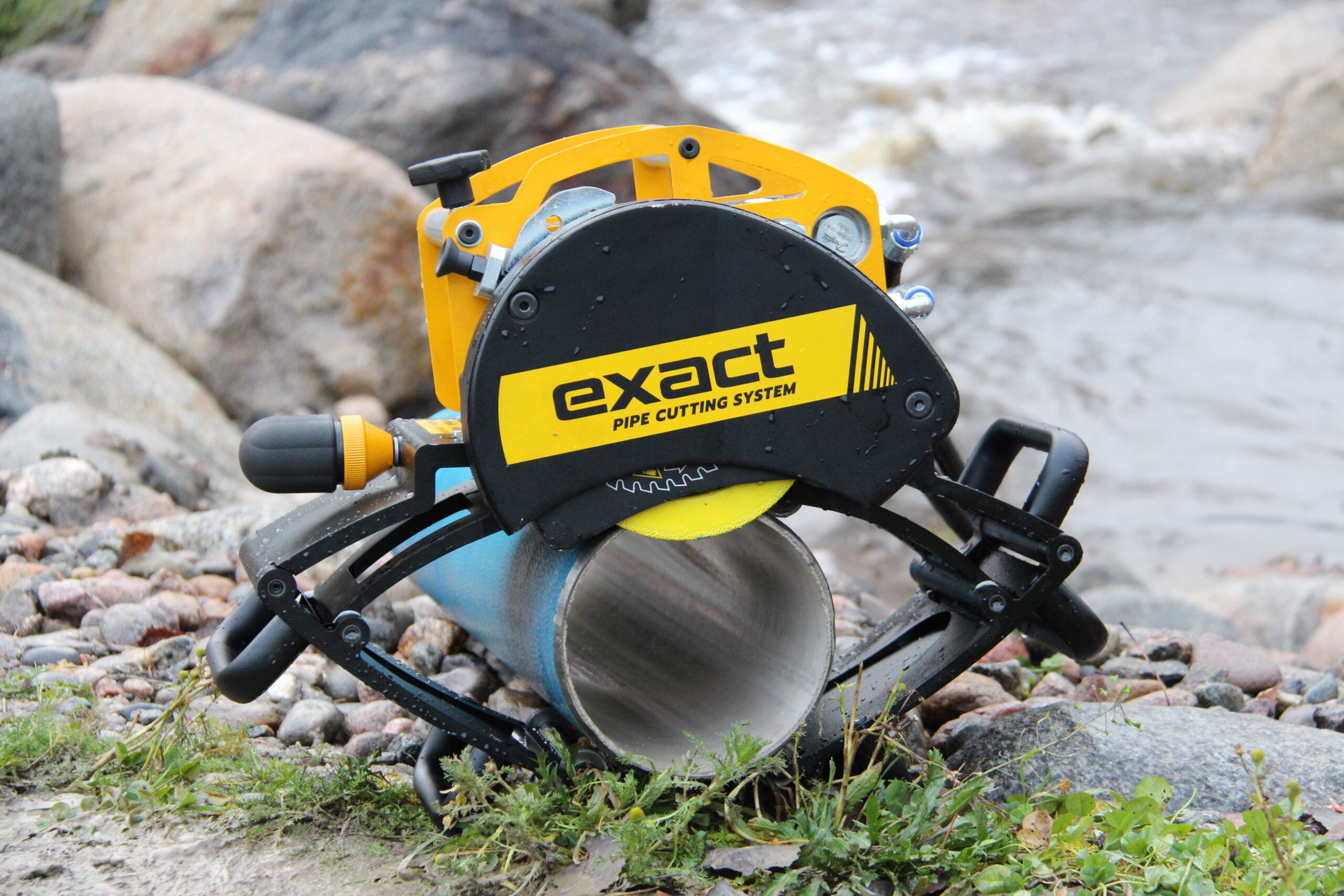

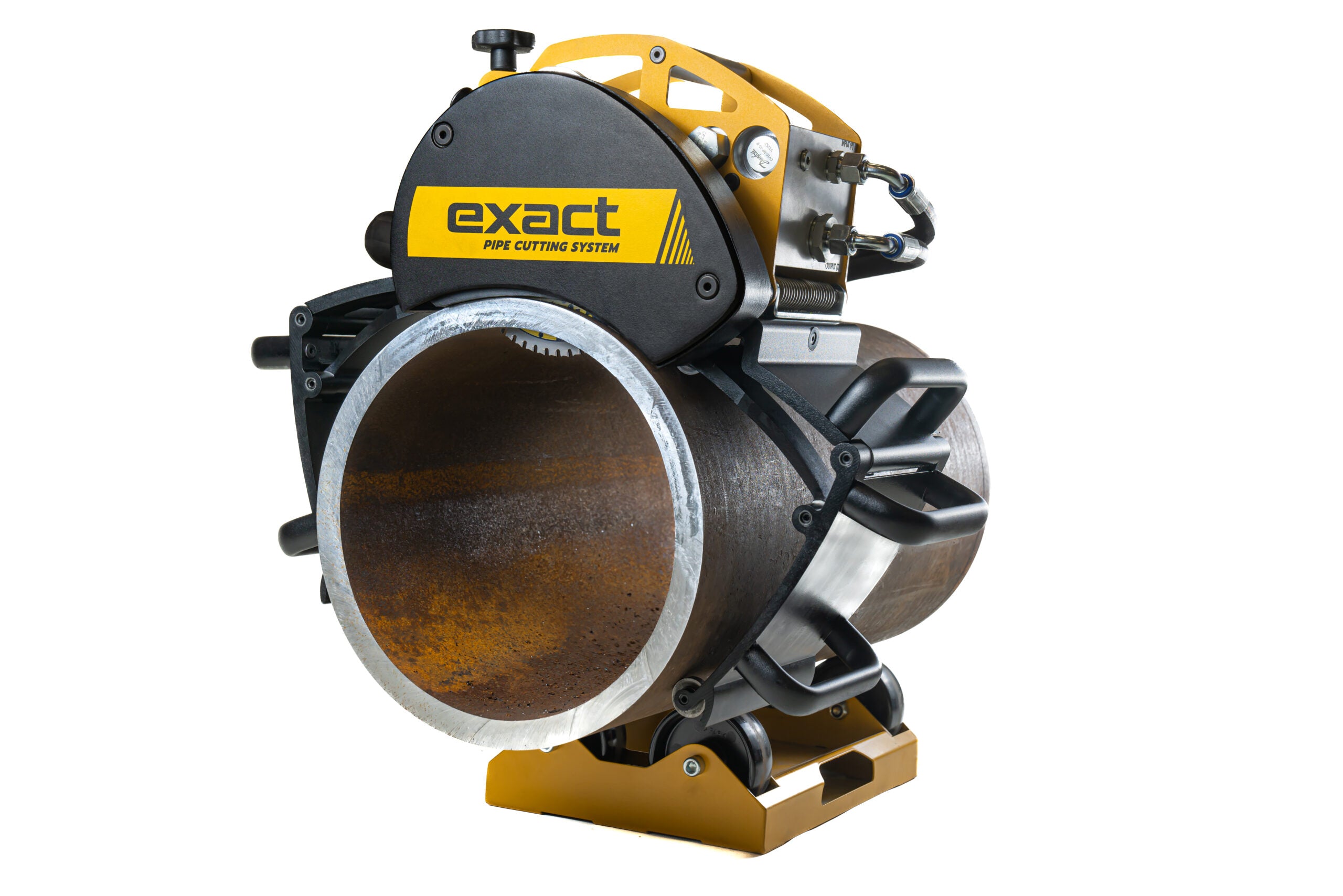

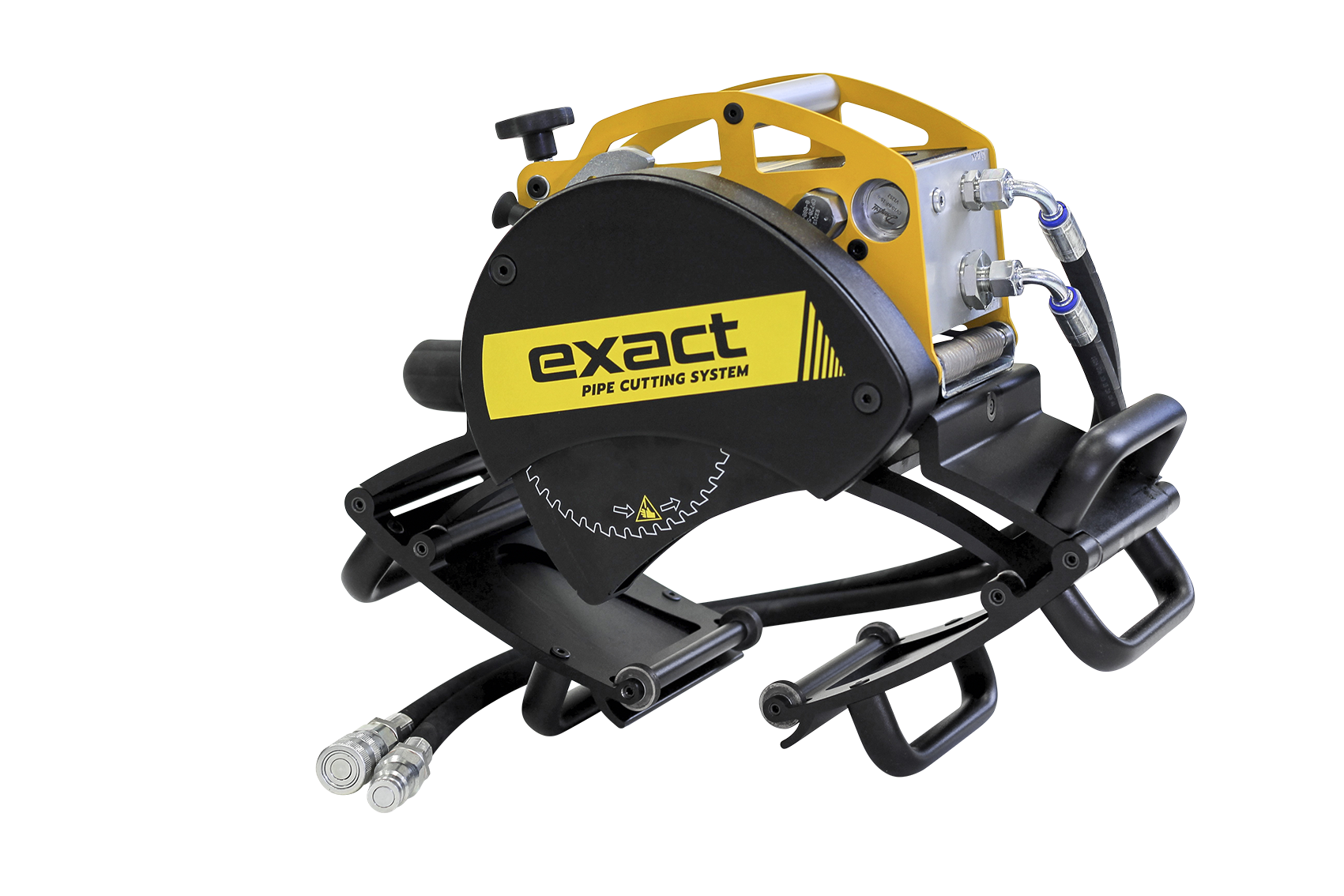

Exact HYDRA 360

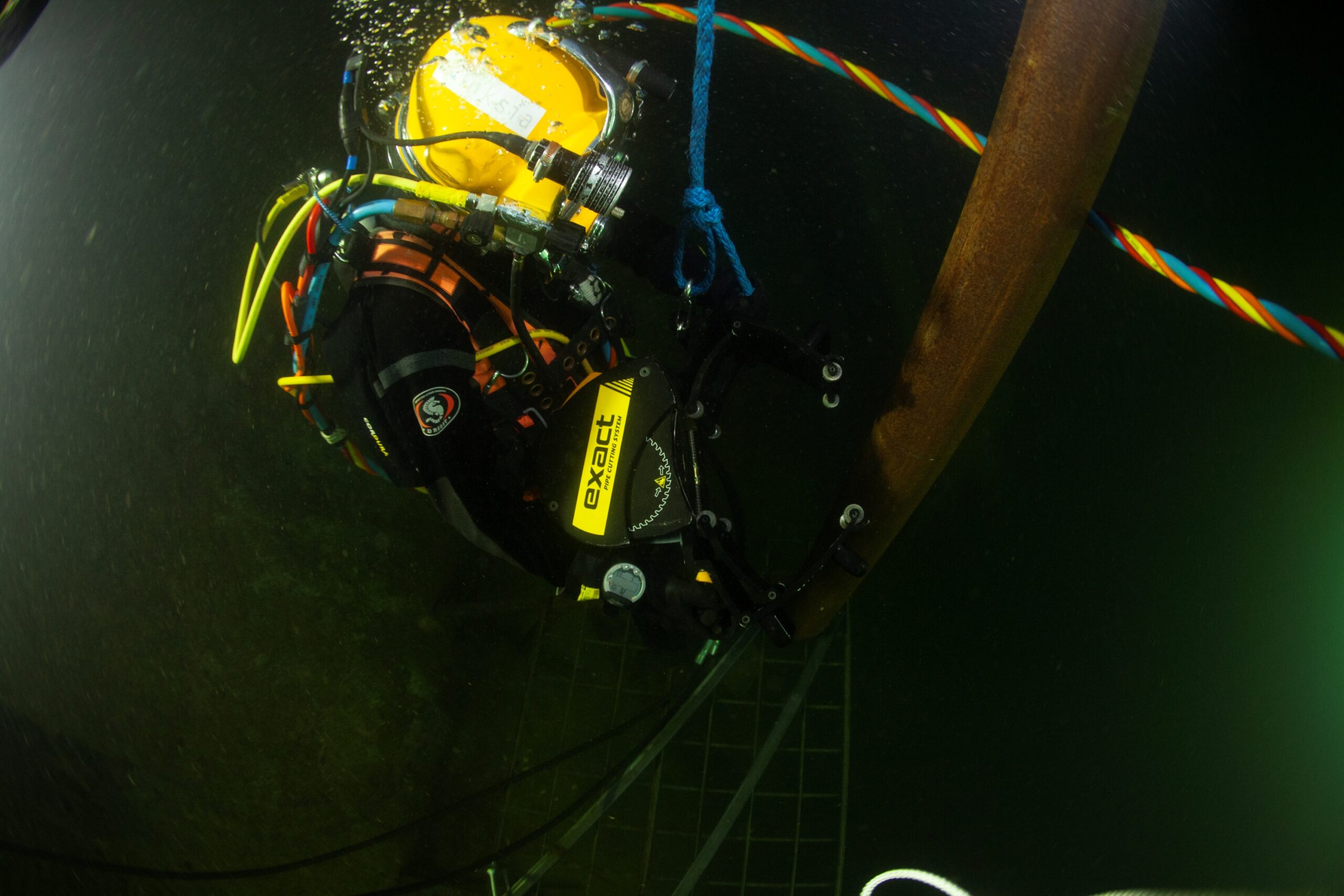

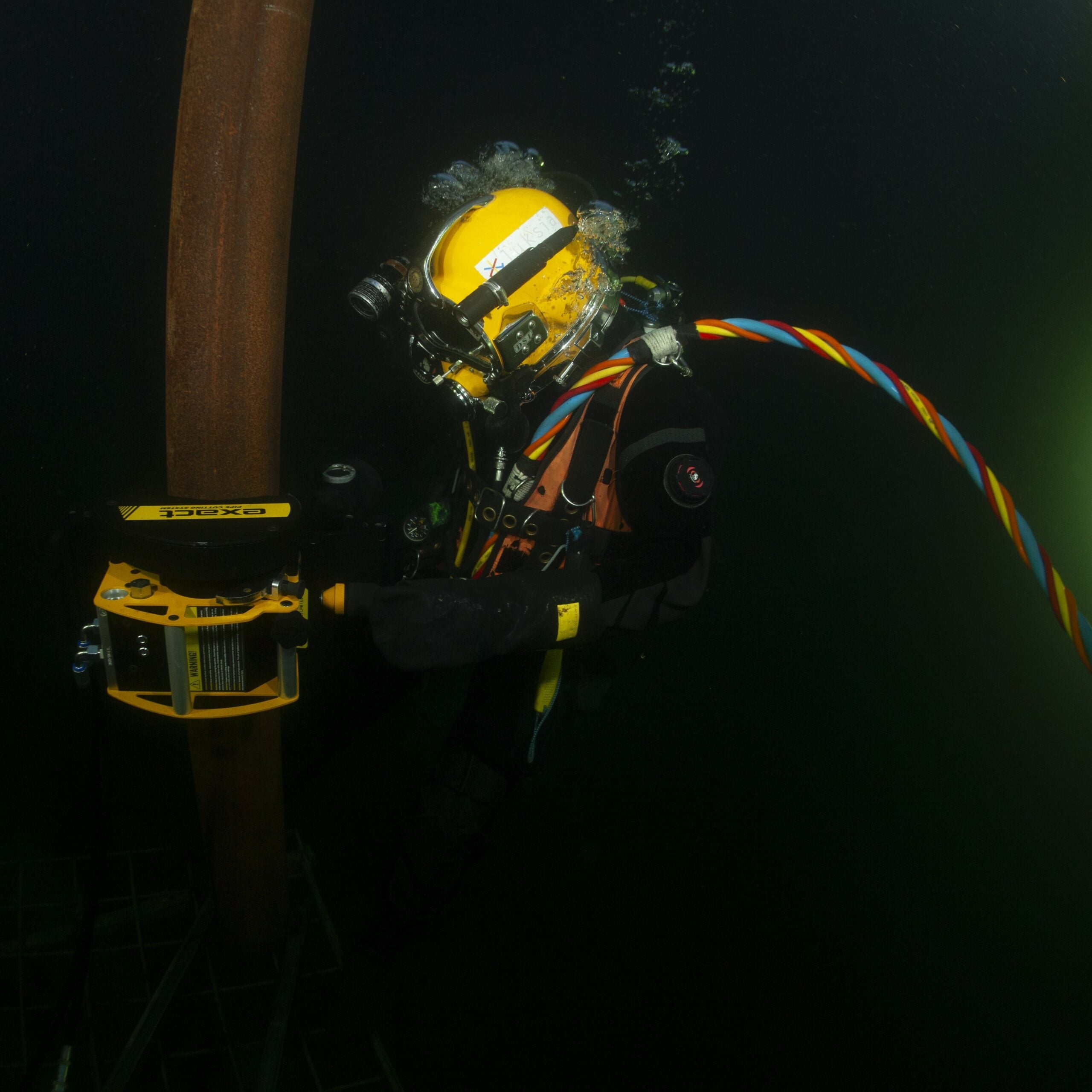

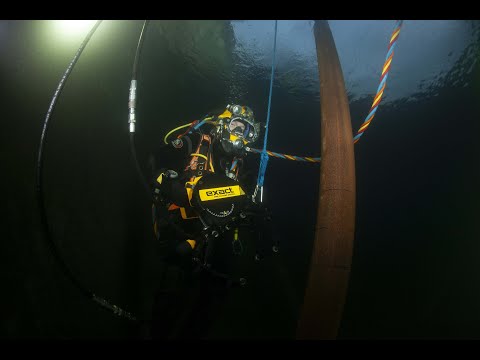

Pipe cutting machine for wet and under water conditions

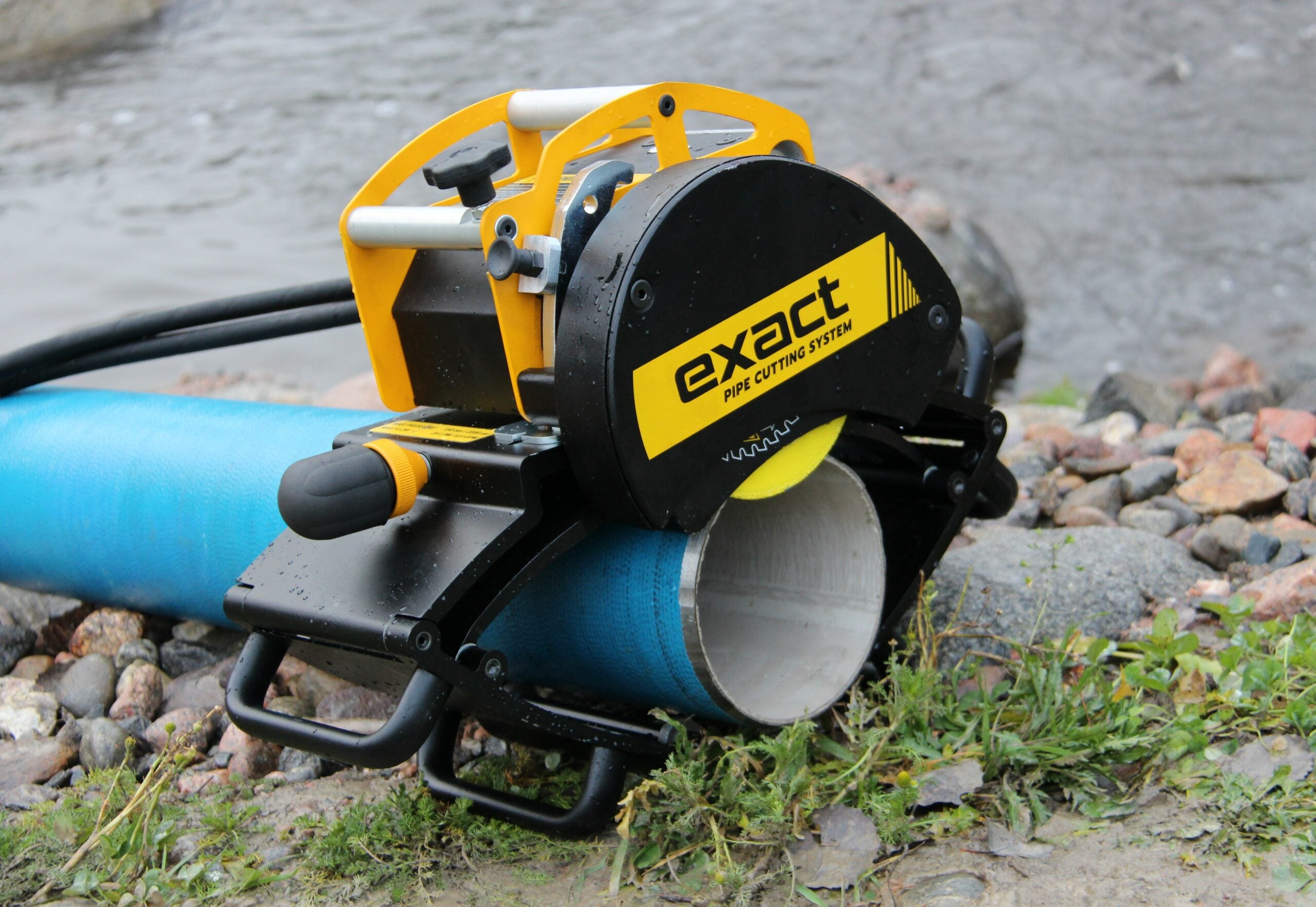

Thanks to the advanced features, the Exact PipeCut HYDRA 360 saw is ideal for challenging and wet environments, particularly at renovation sites where safe, quick, and reliable repairs are essential. This tool is powered by a compact hydraulic power unit or can be connected to a hydraulic system of machinery, such as an excavator (max. 150 bar, 25 l/min).
Did you know?
The Exact HYDRA saw efficiently cut materials such as steel, stainless steel, cast iron, aluminum, copper, and various plastics. When equipped with the Exact Diamond Cut Bevel blade, the tools can simultaneously cut and bevel cast iron pipes, greatly speeding up the process. The saw is suitable for pipes with a diameter of 75 mm – 360 mm. Max. wall thickness is 25 mm for steel, 45 mm for plastics.
Includes:
- Exact HYDRA 360 machine
- Two connecting hoses (1 meter)
- Exact Cermet 165 blade
- Tools for changing the blade
- Operating instructions
Technical Specification
| Pipe OD |
75mm – 360mm (3”- 14”) |
|---|---|
| Max. wall thickness |
25 mm (steel), 45 mm (plastics) |
| Pipe material |
Cast iron, Ductile (nodular cast iron), Plastic, Stainless/Inox steel, Steel |
| No-Load speed |
3400r/min |
| Mounting bore |
62mm (2.44”) |
