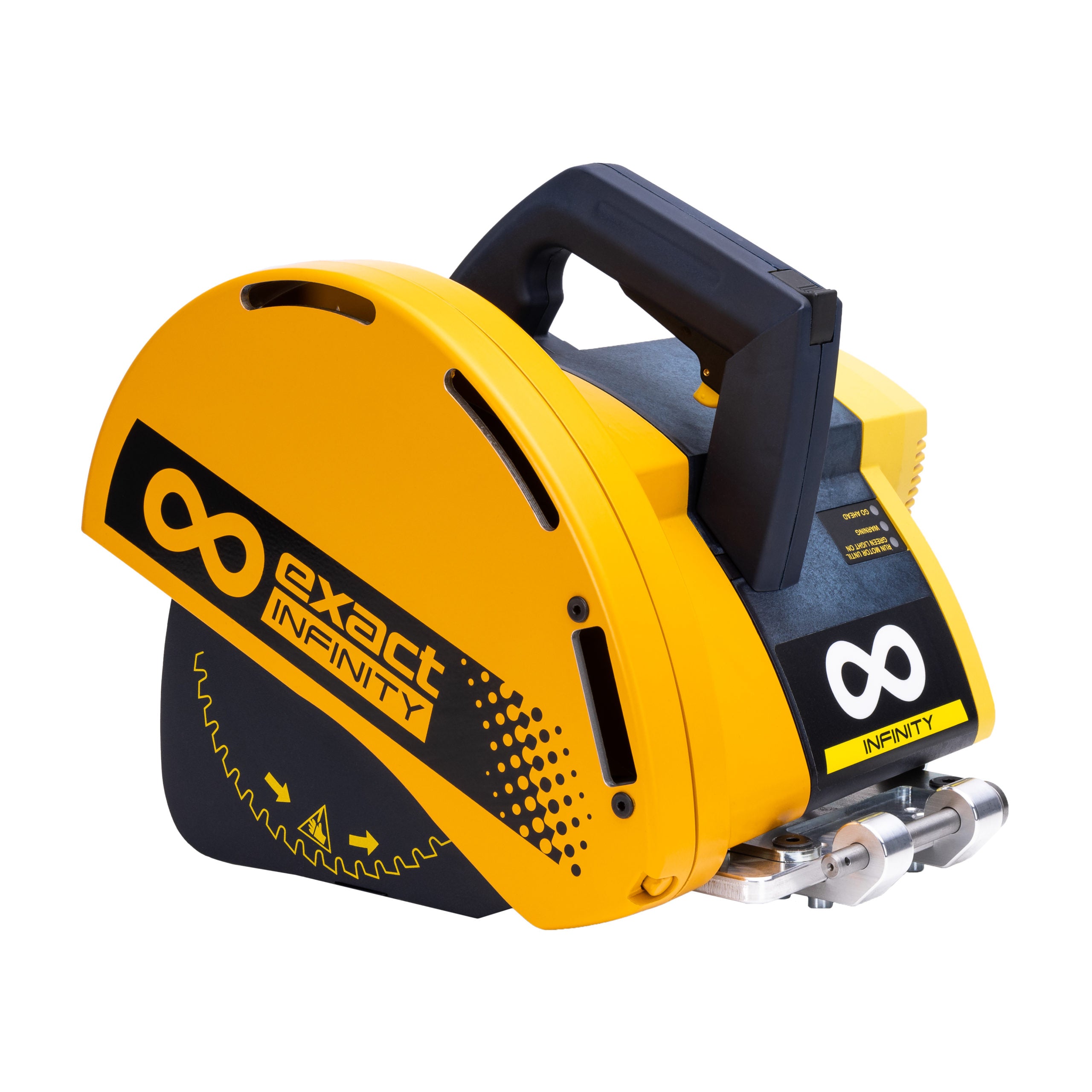

Exact Infinity

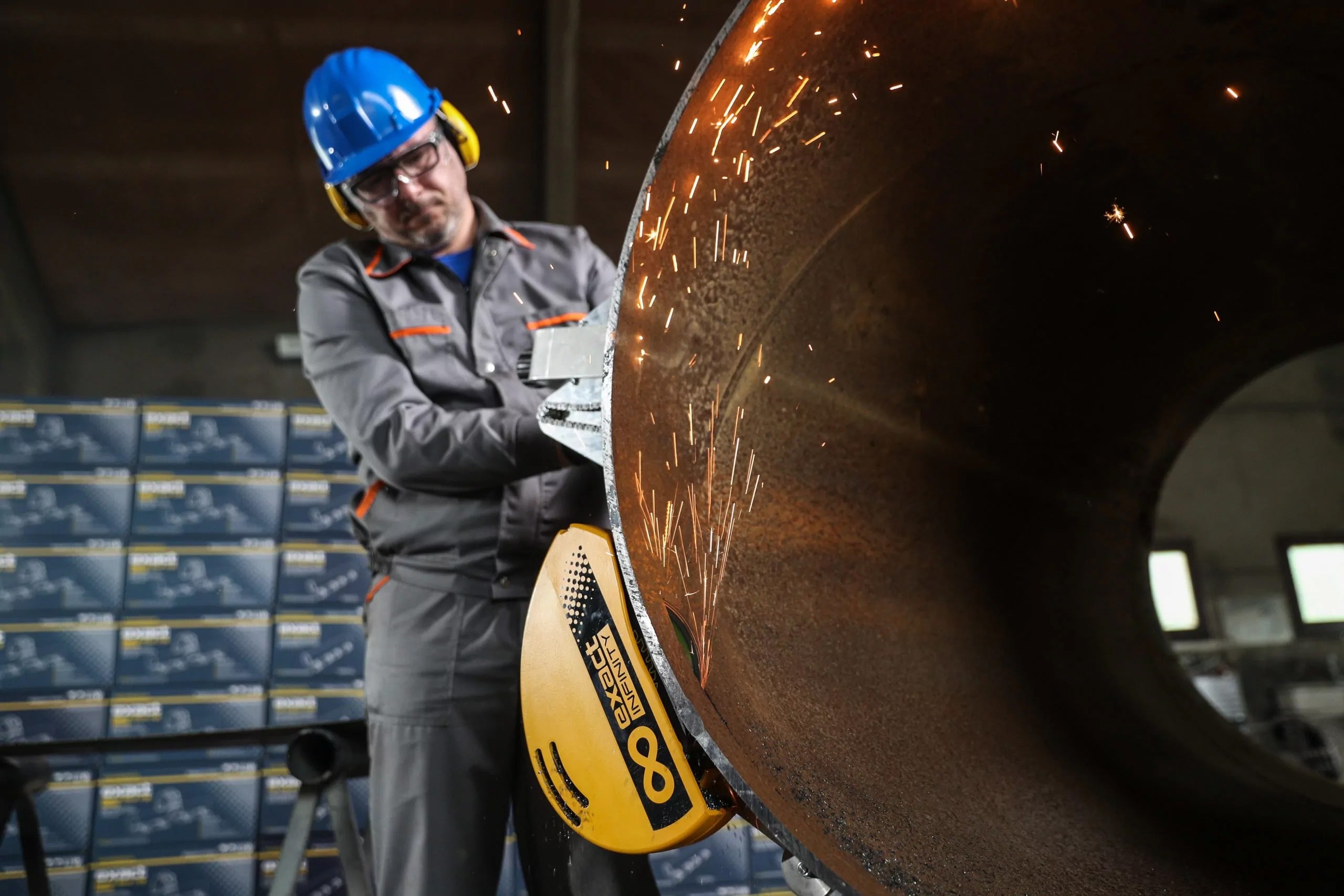

Cutting the world’s largest pipes with Infinity

As the name indicates, Infinity is pipe cutting without boundaries in terms of cutting capacity for pipe outside diameter. You can basically cut all pipe sizes (outside diameter) from 360 mm (14”) upwards.

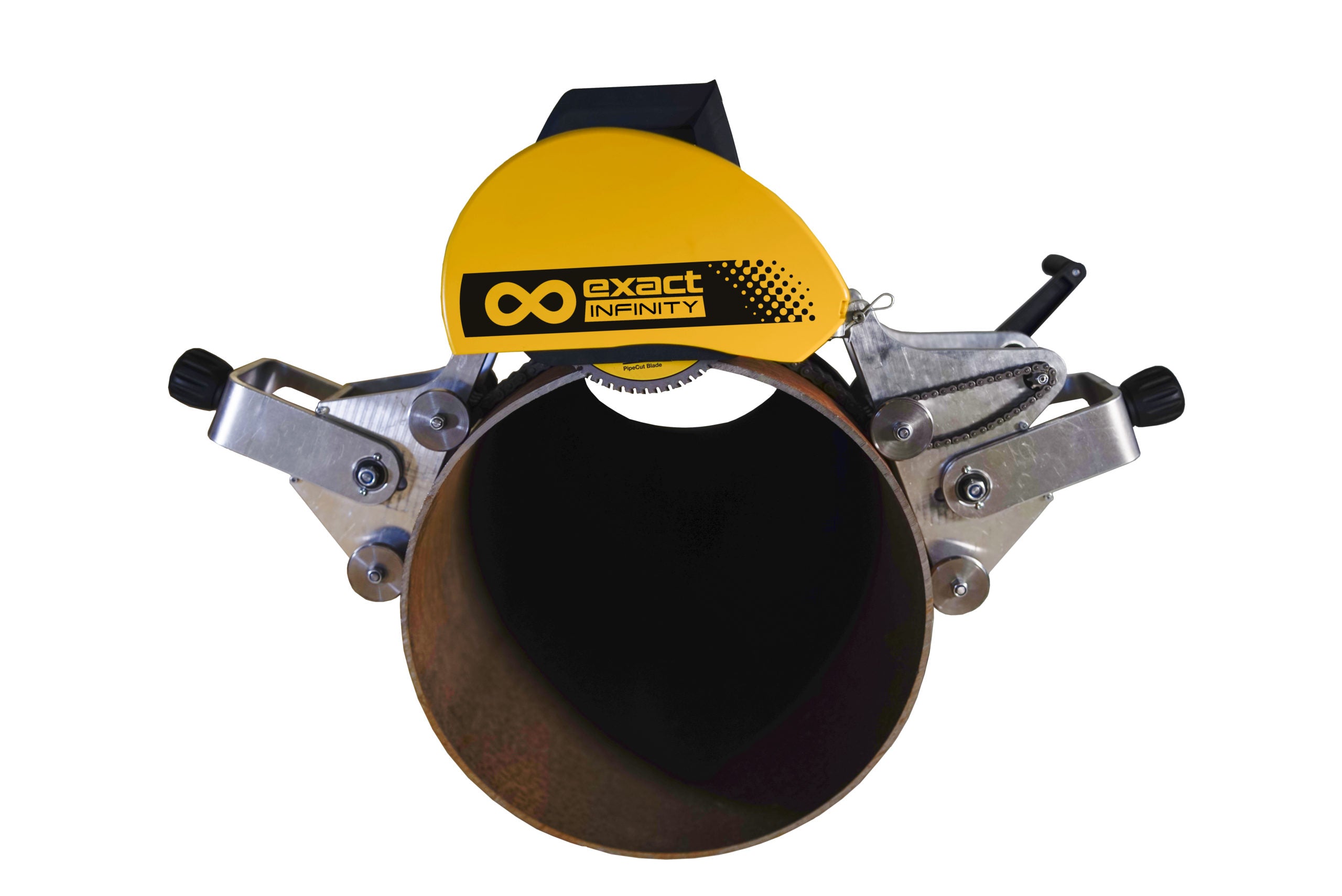

Exact Infinity is a completely new type of pipe cutting system, unlike the other exact models, it uses a chain type of gripping mechanism. Thanks to the flexibility of the chain segments, it allows you to extend the chain segment gripping unit as much as you like.

Thanks to this innovative method, the boundaries of pipe cutting diameter limitations are no longer an issue.

Also available as a Cut+Bevel option for cutting and bevelling cast iron & plastic pipes in one process.

Infinity is available in (3) different models depending on your needs

Infinity can cut all pipes from OD 14″ / 360 mm upwards: Steel, stainless steel, plastics, cast/ductile iron.

Special blade guard and disc for cutting and bevelling cast iron are standard equipment in Cut+Bevel model. Also the cutting depth adjustment is a standard feature on Cut+Bevel model. This mechanism allows you to cut multi-layer pipes, on any pipe materials as needed.

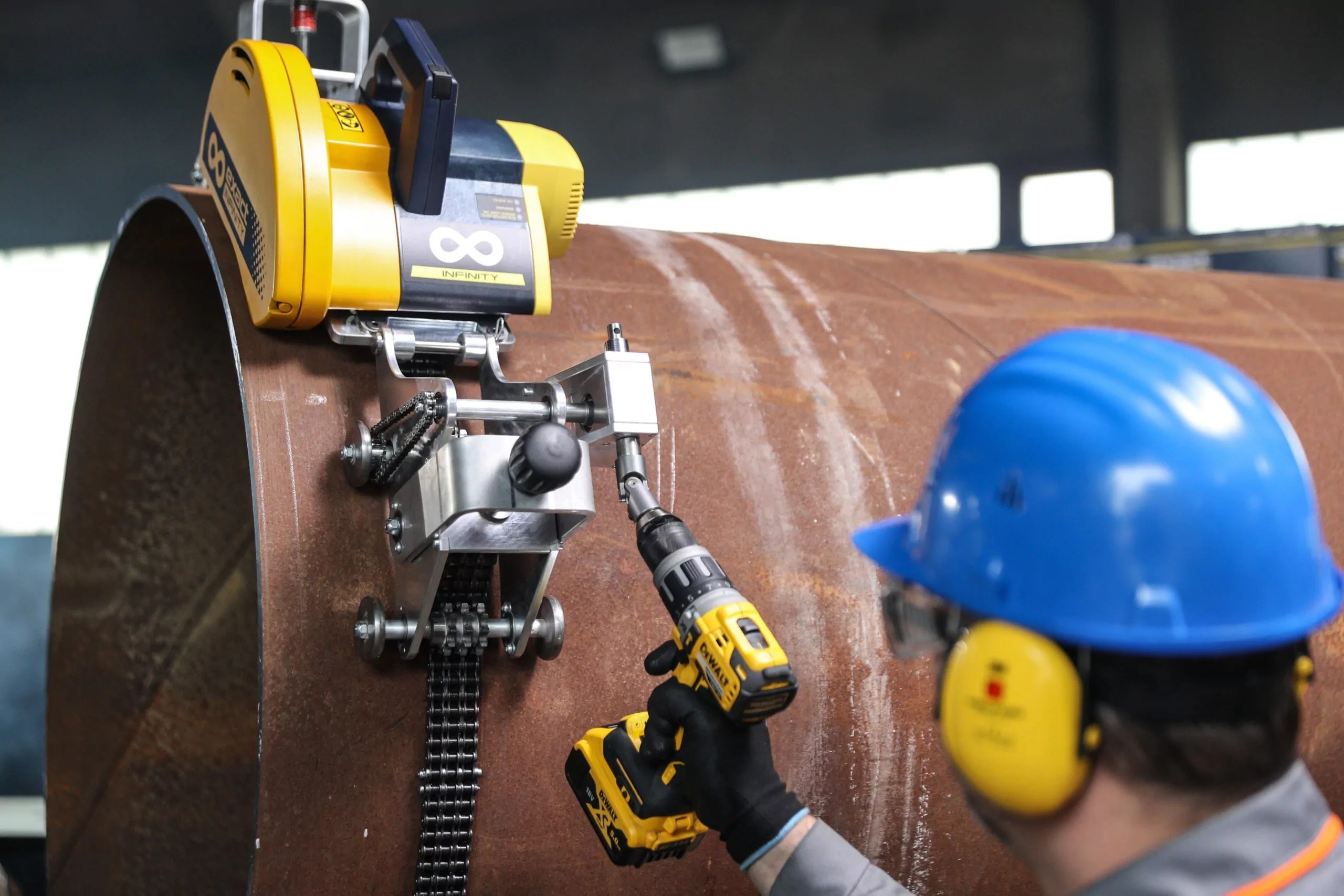

The Infinity Plus model has constant saw feed with power drill connection: the model has a gearbox, that can be connected to a power drill for even easier working. Plus model has also the cutting depth adjustment.

The gearbox and cutting depth adjustment mechanism are also available separately, if needed.

Please note

The standard equipment of Infinity includes chains to cover pipe sizes (outside diameter) from 360 mm (14”) to 1850 mm (73”).

If you need chains to cut pipes over 1850 mm (73”), simply order additional chain segments, which are sold in 2 m (78”) increments.

The standard equipment chains cover the most common large pipe sizes.

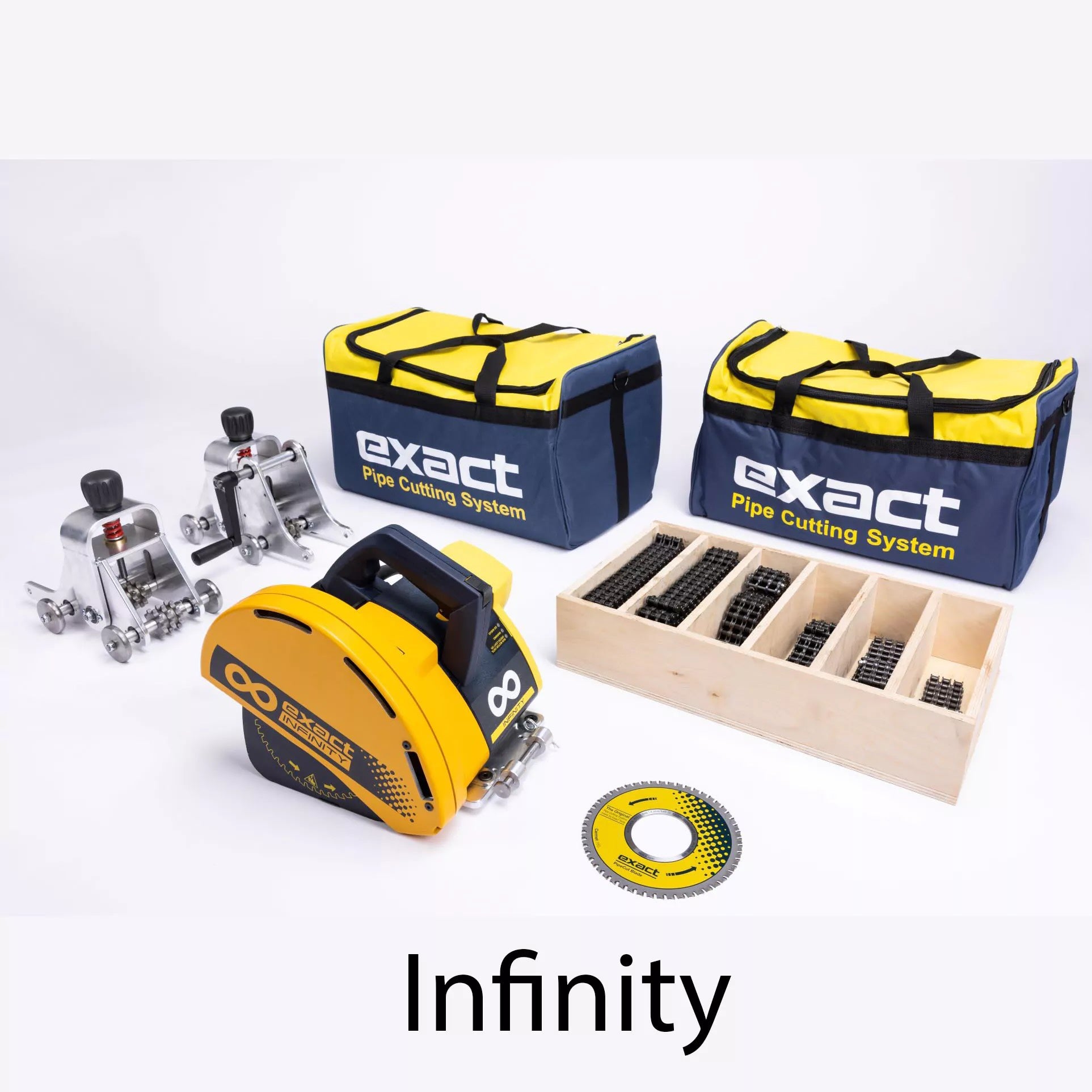

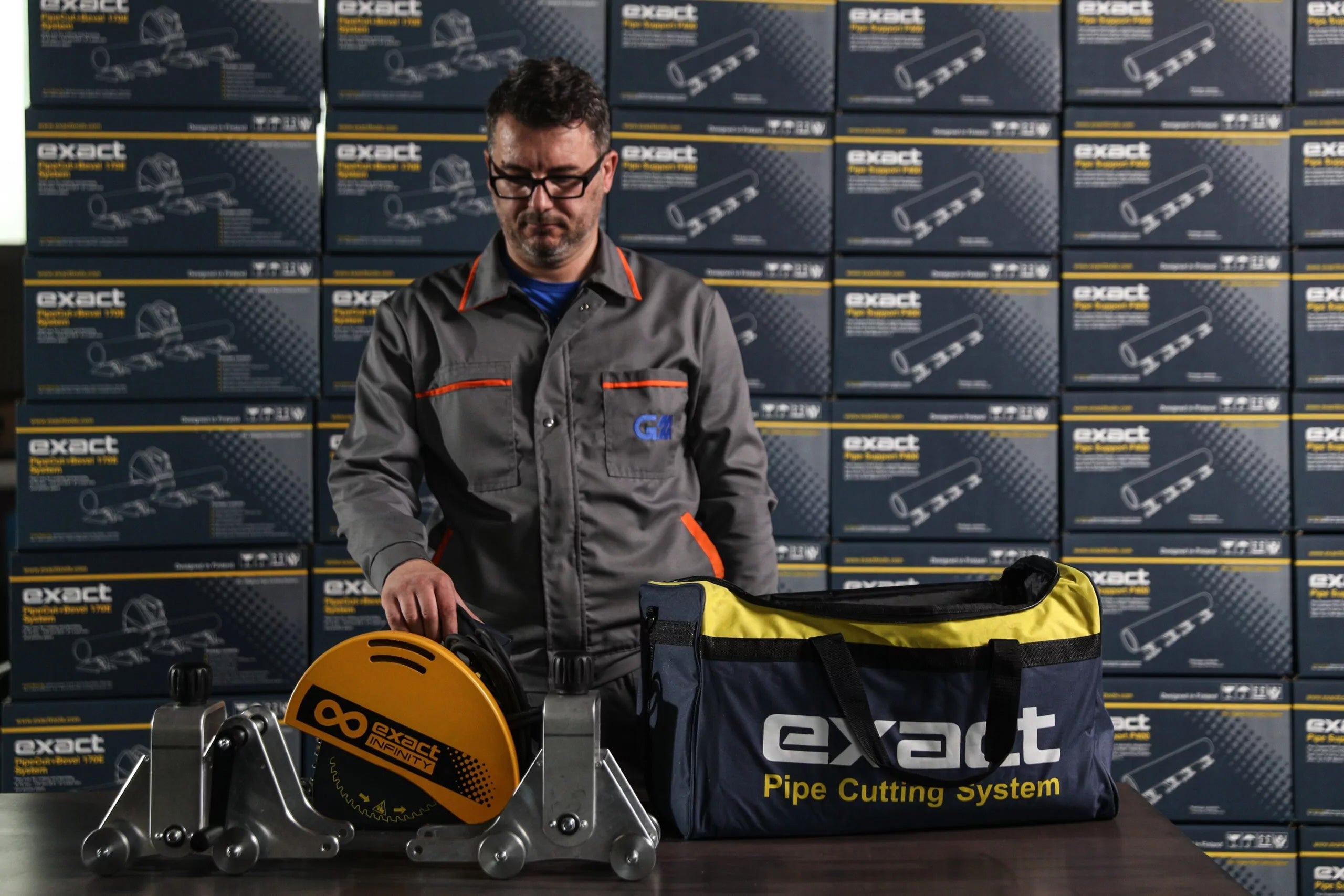

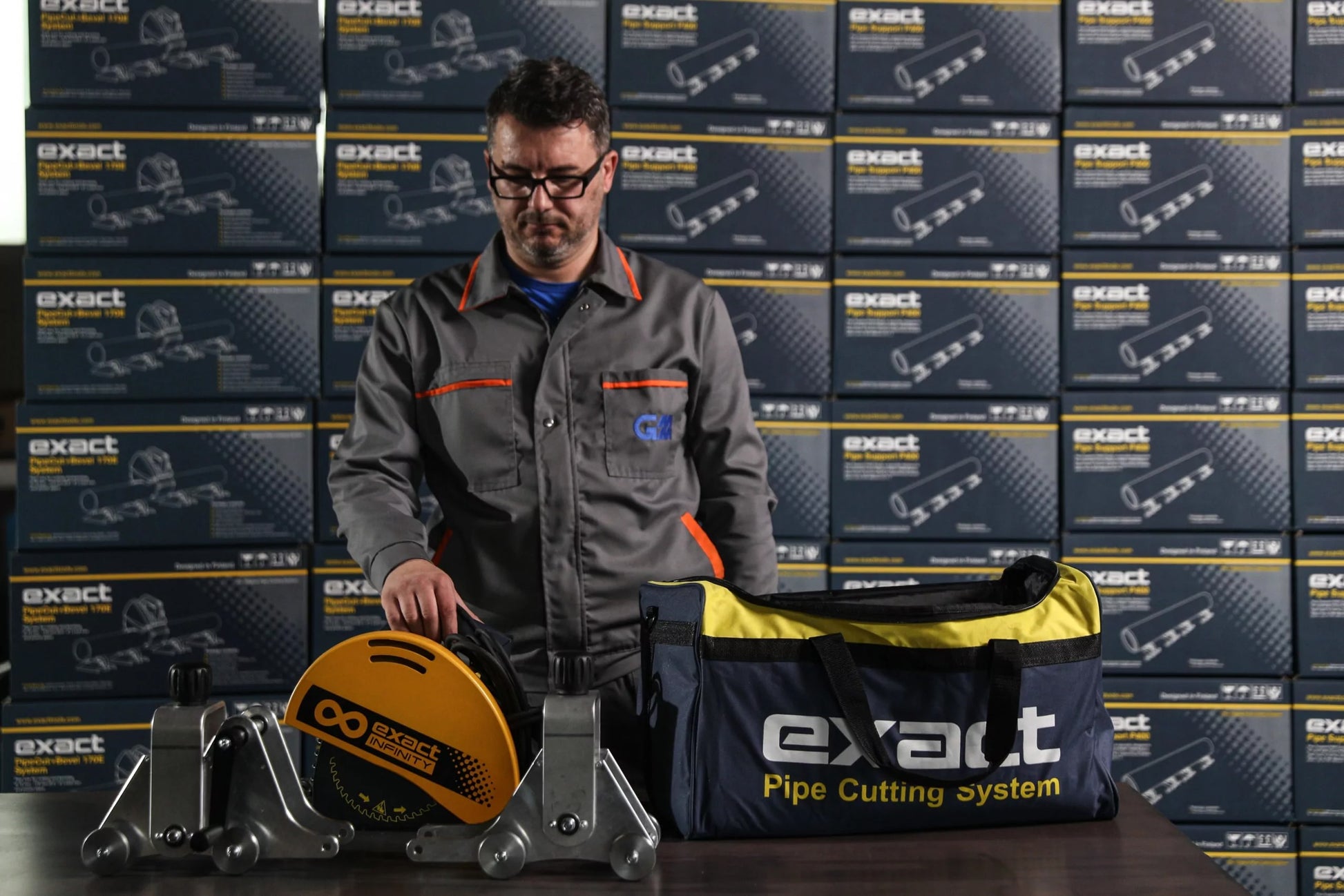

Infinity standard equipment

  1. Exact PipeCut System Shoulder Bags, 2 pcs
  2. Exact PipeCut Infinity motor unit with Cermet 165 blade installed
  3. Tensioner device
  4. Tensioner device with crank
  5. Chain segments for attaching the saw to pipe:
    2 m, 2 pcs
    1 m, 1 pc
    0,5 m, 1 pc
    0,2 m, 2 pcs
    0,1 m, 1 pc
  6. Operating instructions
  7. Allen keys, 5 mm and 2 mm, attached to saw

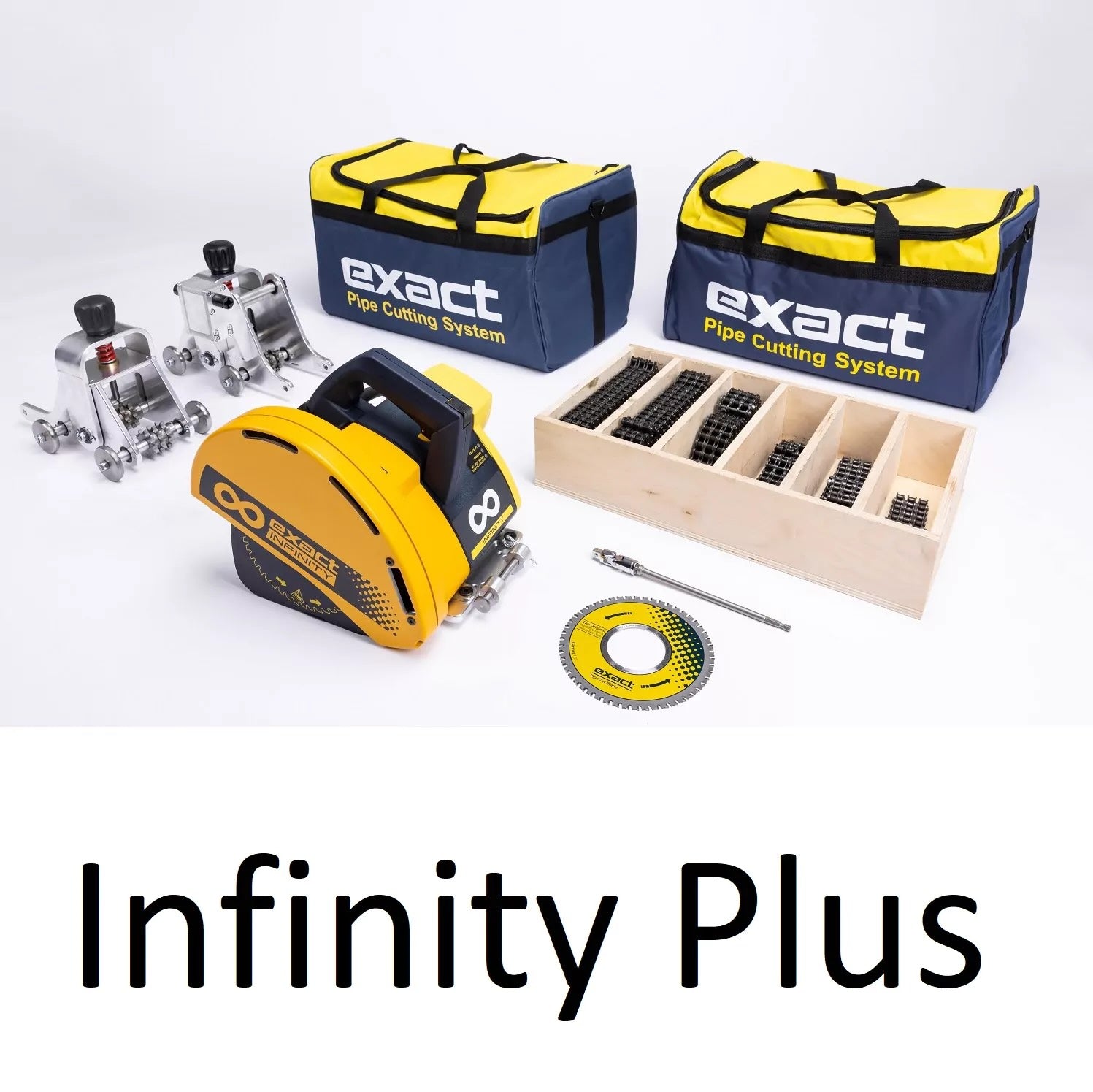

Infinity Plus

In addition to the standard equipment the tensioner device is modified to include gearbox for power drill connection. Also a cutting depth adjustment is included.

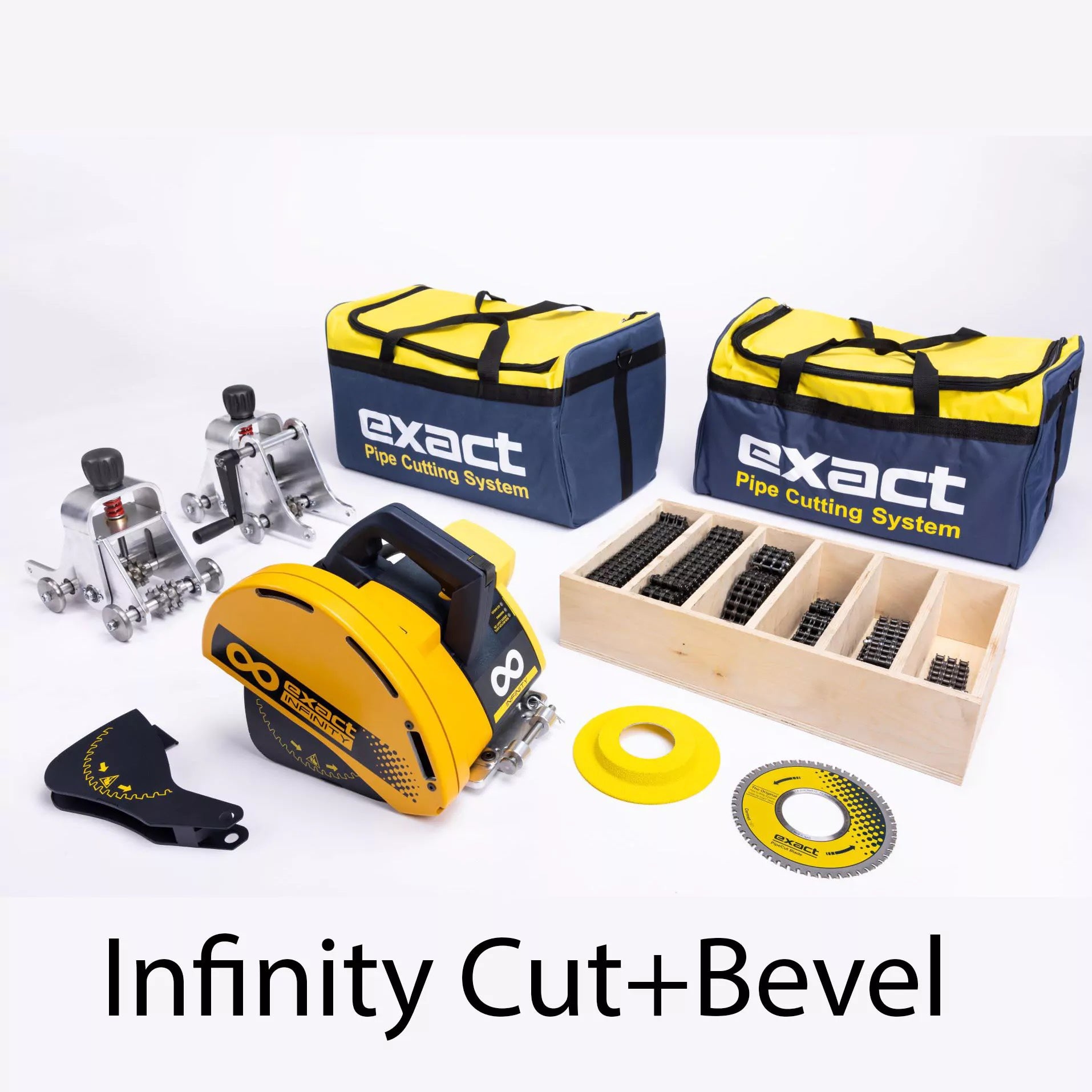

Infinity Cut+Bevel

In addition to the standard equipment, includes cutting depth adjustment, Diamond Cut+Bevel 165 disc, and a blade guard for it.

Technical Specification

Max. wall thickness

43 mm (1.7”) plastic, 20mm (0.8”) steel / 230V

Pipe material

Aluminum, Cast iron, Copper, Glass fiber, Plastic, Stainless/Inox steel, Steel

Mounting bore

62mm (2.44”)

No-Load speed

I (low) = 1900/min, II (high) = 2885 /min

Recommended generator capacity

4,9kVA for 230V, 3kVA for 100 V-120V
