Munsch Plastic Welding

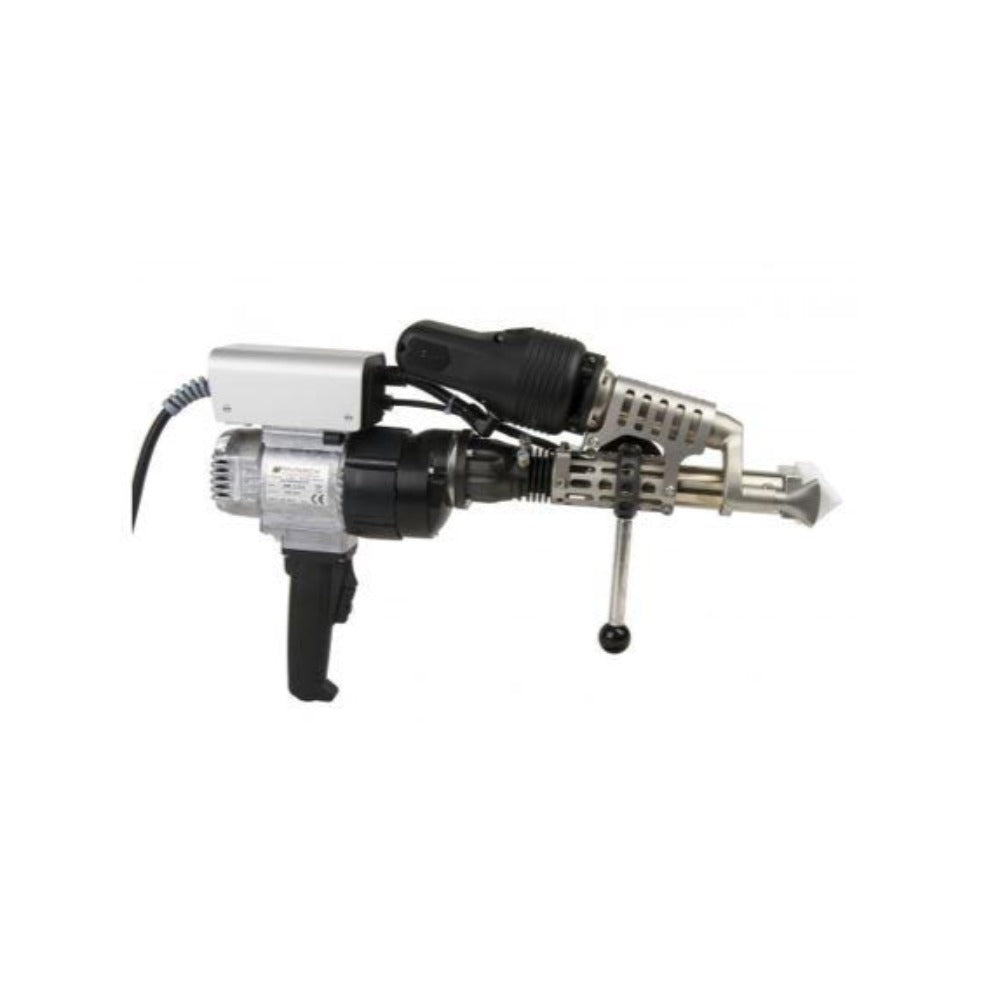

MAK-36-B

The "small powerful". This extruder is driven by a powerful 2000W drive. With an output of 3.6kg per hour it is perfect for usage of sheet thicknesses from 8 to 30mm. By non-simultaneous heating of mass and air temperature, this machine can be used on normal house connection.

    Features

    • Brushless preheating blower

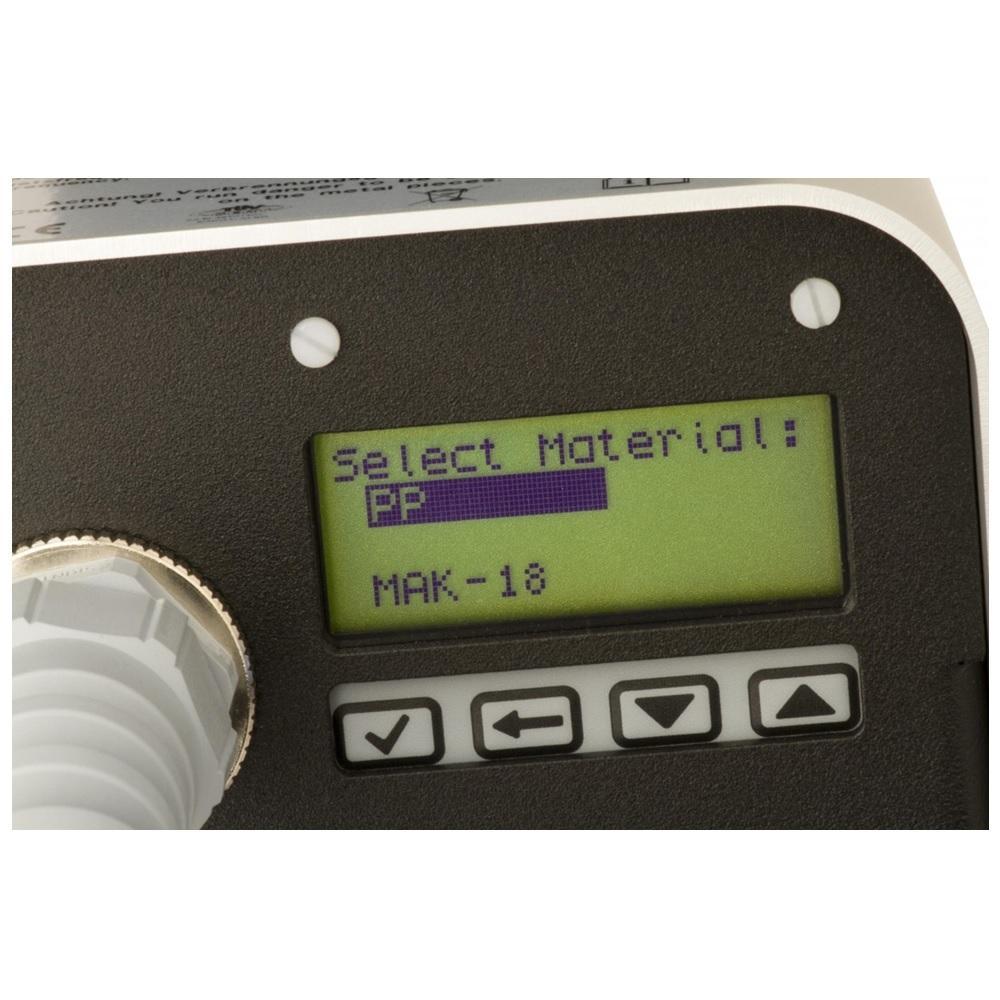

    • Comfortable user menu with automatic temperature setting
    • Three materials preset, more program spaces free to set your own material
    • Machine stand included, mounted

    Technical Data

    Max. welding capacity 3.6 kg/h, Ø 5mm
    2.0 kg/h, Ø 4 mm
    Welding material PP/PE/PVDF
    Material type Round rod Ø 4/ 5mm
    Application range Thicknesses from 8 - 30mm
    Weight 7.5kg
    Length 570mm
    Electronic Speedcontrol Yes
    Mass heating 650 W
    Powerbox needed No
    Preheating 2300W
