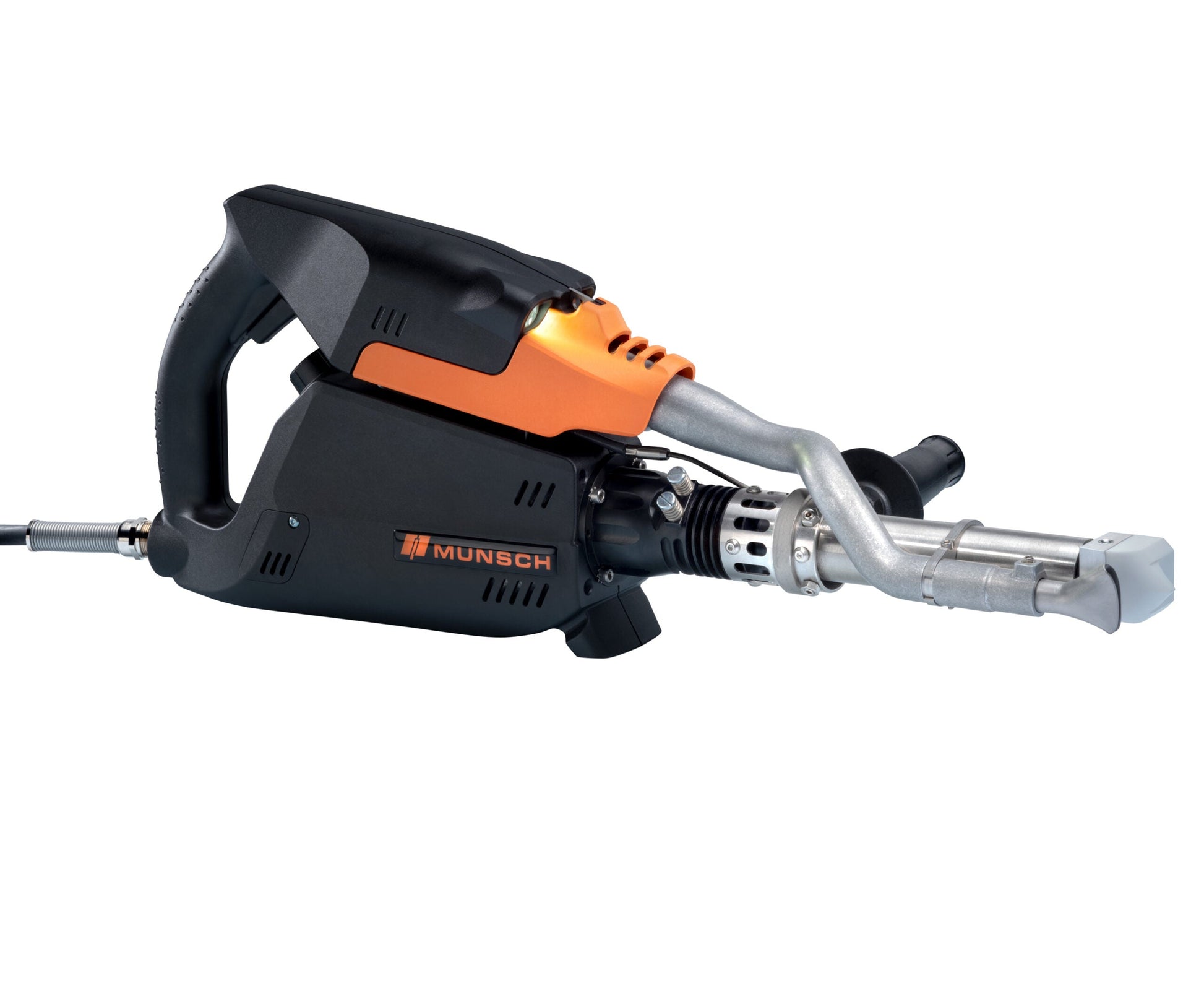

MAX-32-B
More output. More power. Made for plastic container construction.
When thicker sheets need to be welded, the MAX-32 really comes into its own: With an output of up to 3.2 kg/h (with 4 mm wire) and a welding range of 8 to 30 mm wall thickness, it is the right choice for plastic container construction with thicker-walled constructions made of PE / PP sheets.

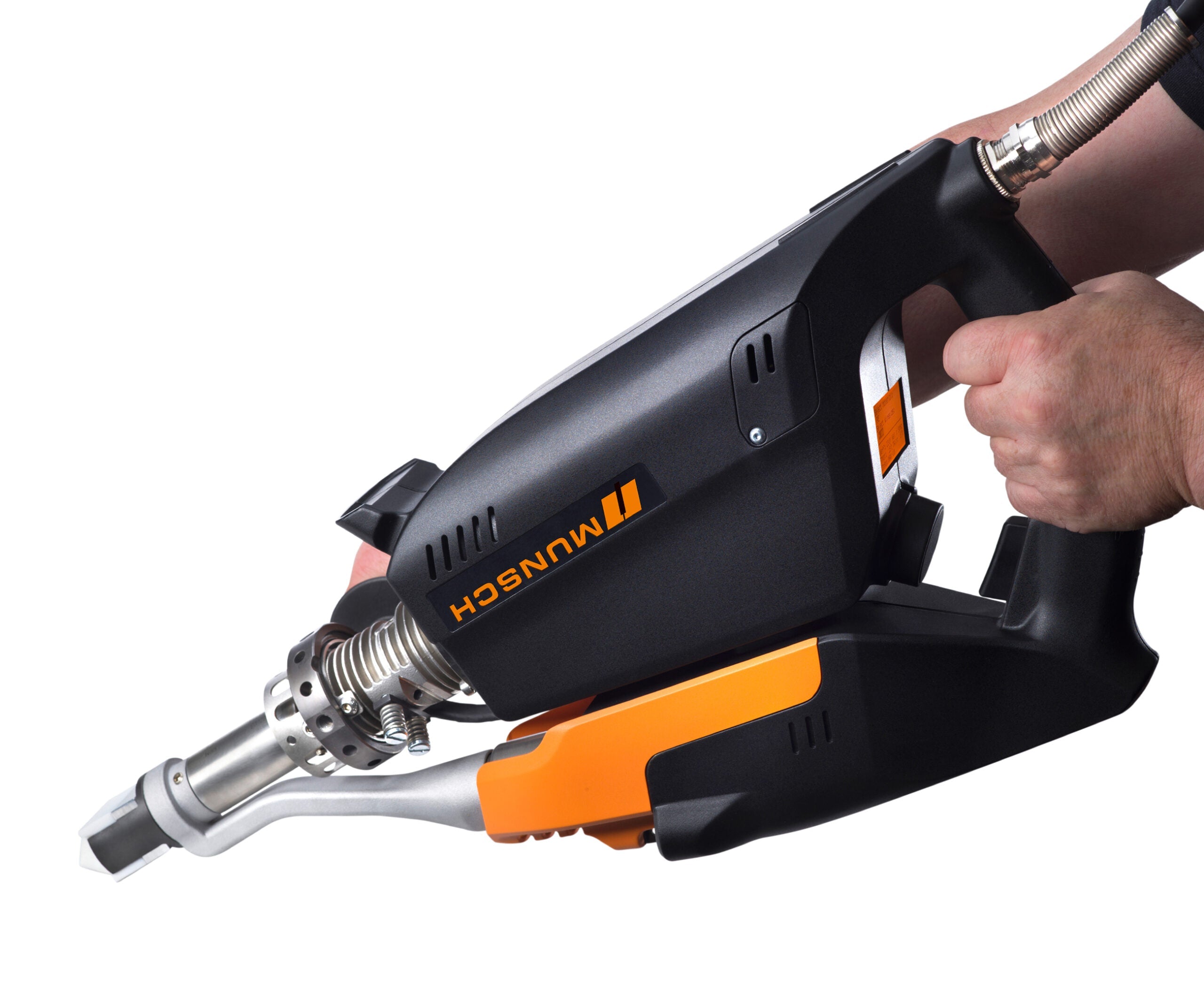

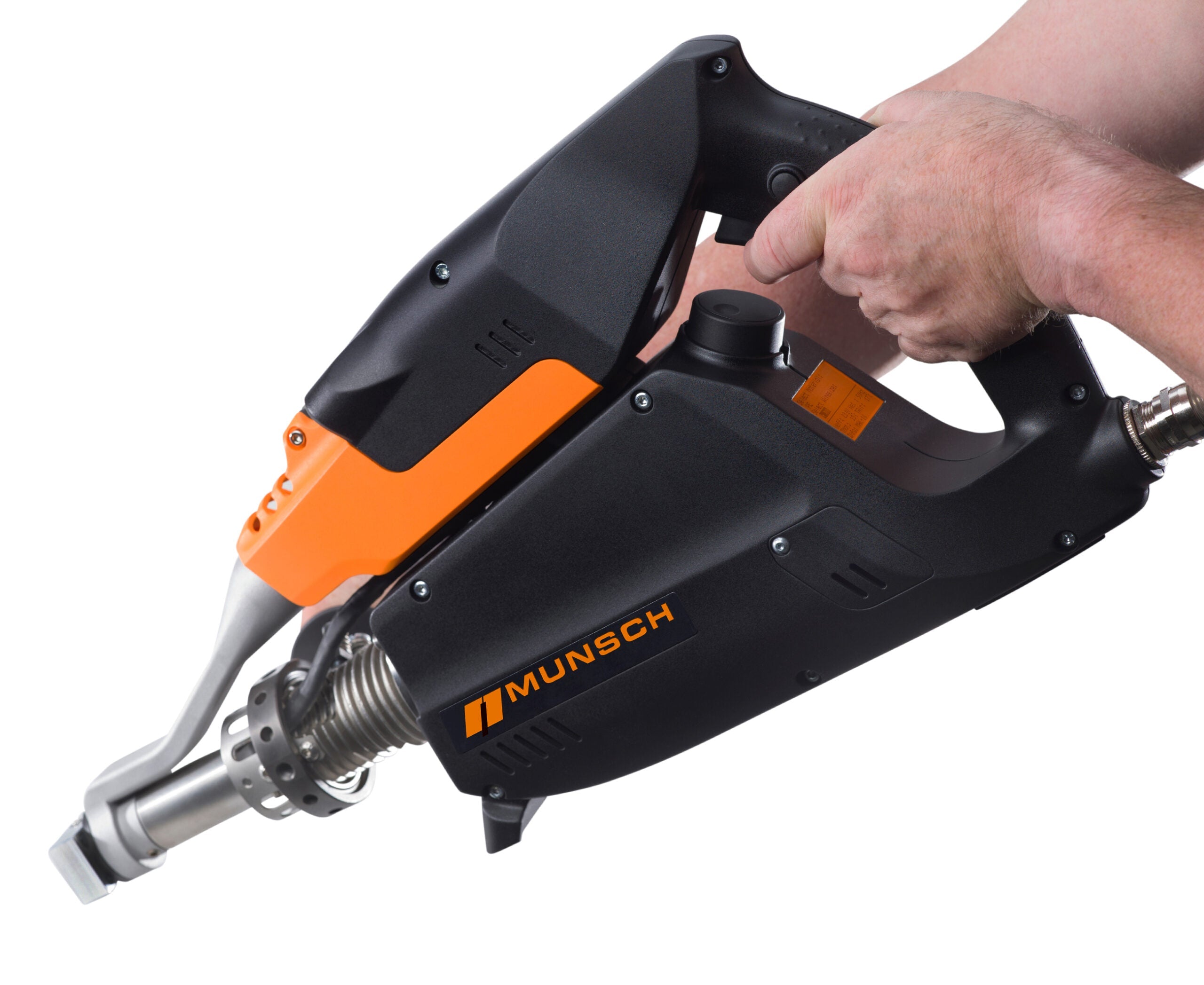

Despite its power, the MAX-32 remains pleasantly handy with a weight of just 7.4 kg. The side-mounted preheater is ideal for the usual weld seams and requirements in plant and container construction.
Digital temperature control, intuitive menu navigation, integrated high-performance LEDs and the energy-efficient standby function make it a reliable partner that saves you up to 60% energy in standby mode.
Advantages
- Output up to 3.2 kg/h (with 4 mm wire)
- For wall thicknesses from 8-30 mm
- Side-mounted preheating – ideal for plastic container construction (can be converted to top-mounted preheating)
- Digital control with display – DVS-compliant & material-accurate
- Powerful & yet lightweight: only 7.4 kg in weight

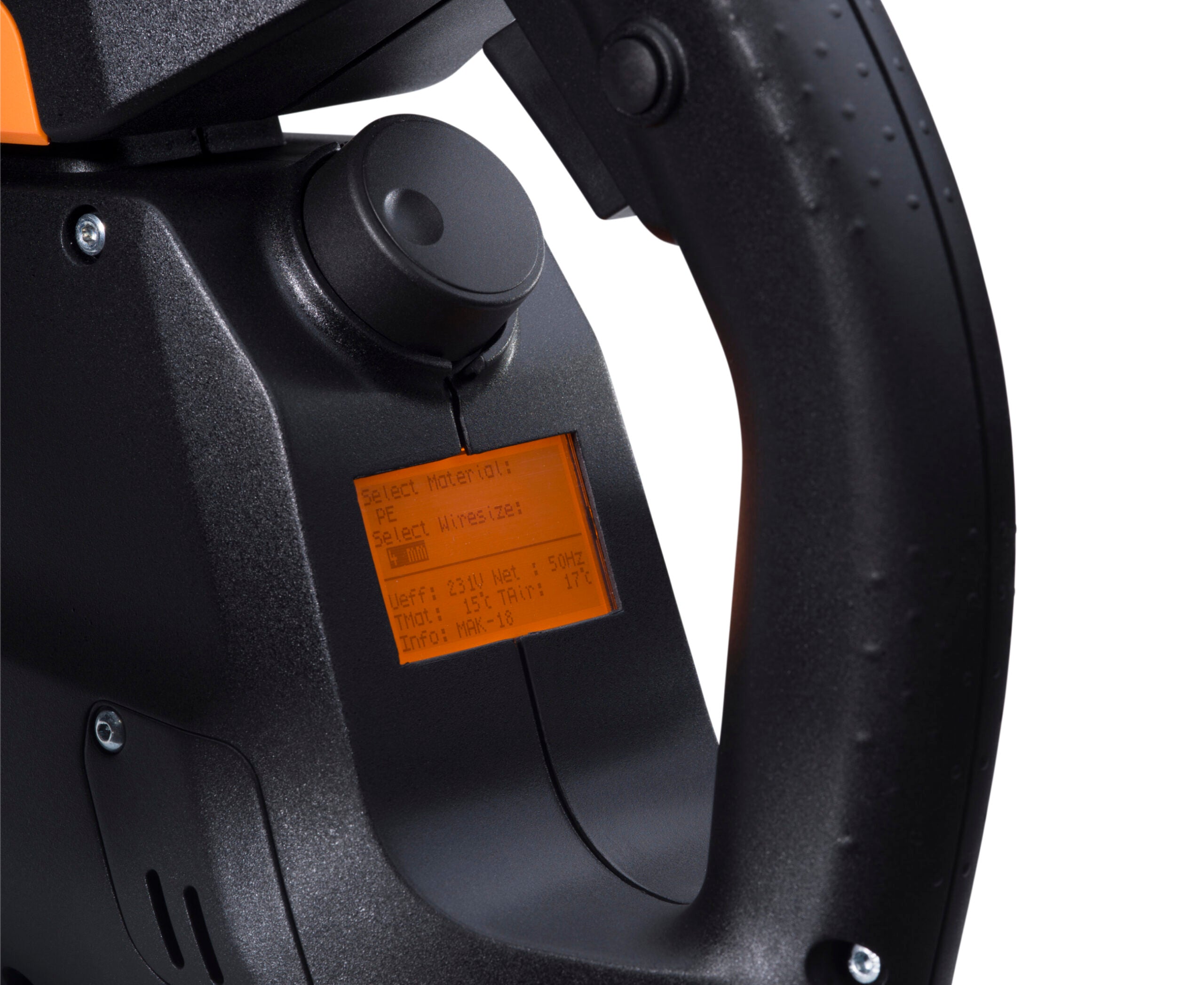

- Comfort menu with material presets & individual memory locations

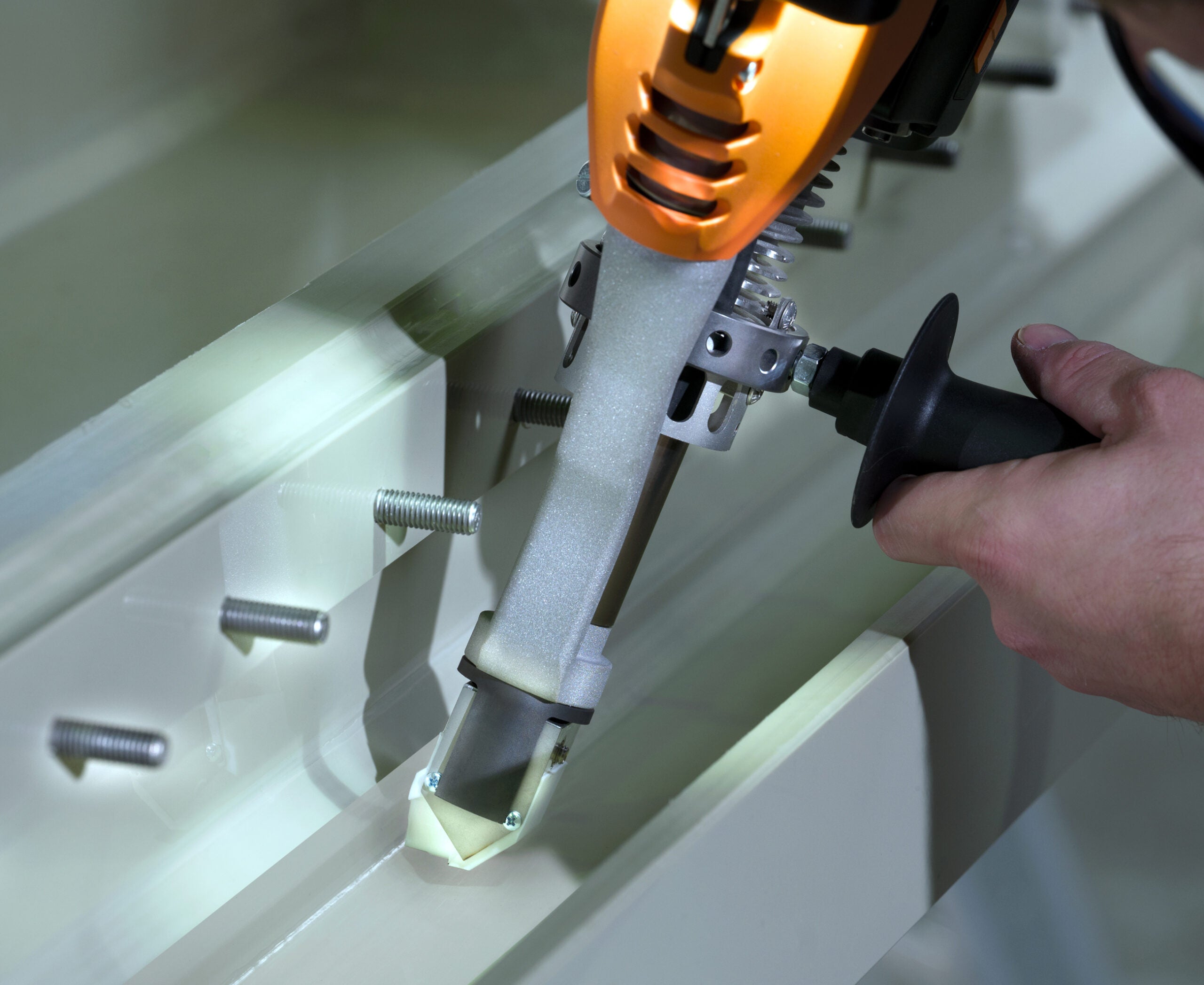

- High-performance LEDs – for perfect illumination
- Brushless fan with standby & auto switch-off – quiet & energy-saving
- WiFi-ready – prepared for digital services

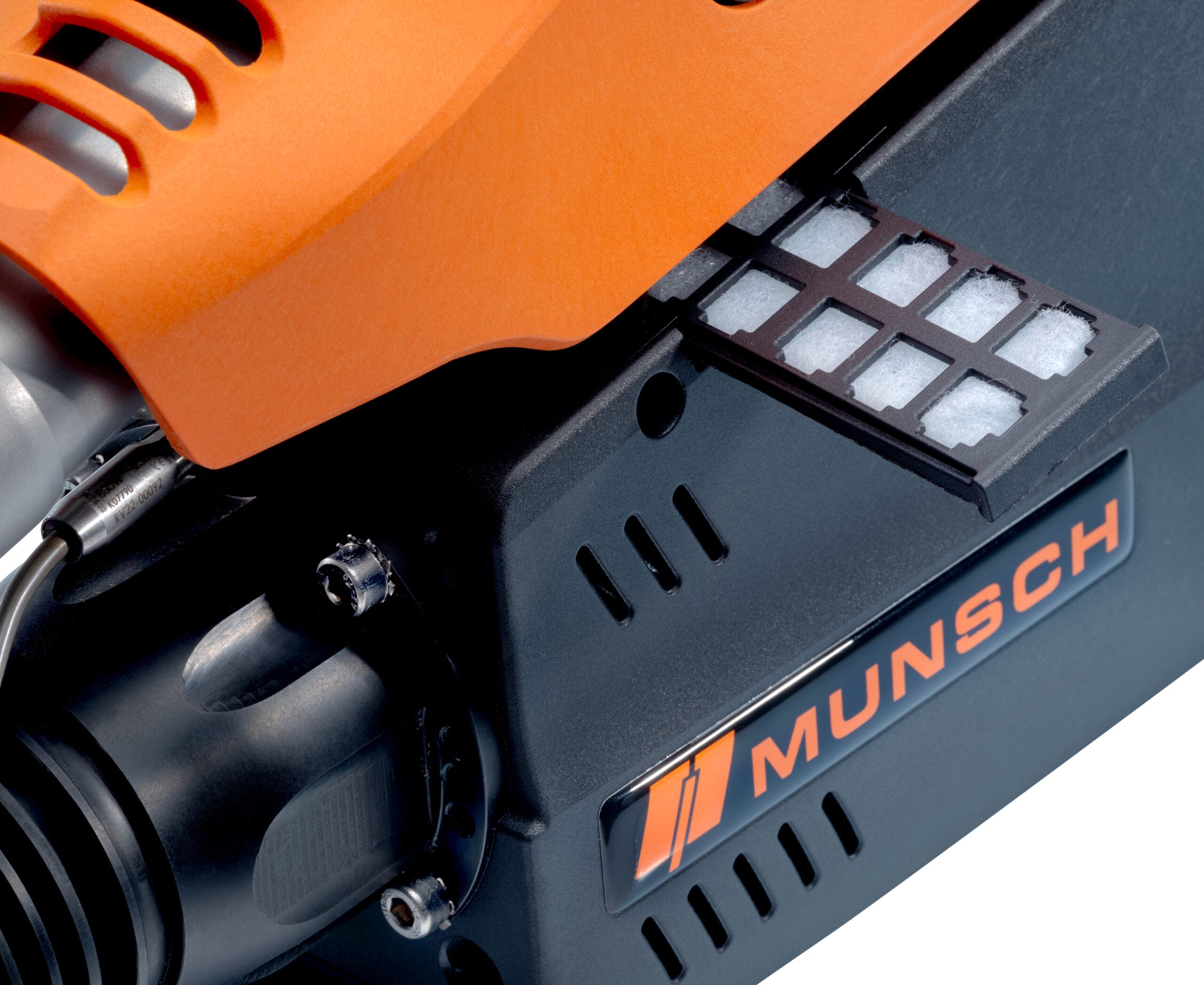

- Integrated dust filter for long-lasting technology
Technical Data
| Max. welding capacity: | 1.8 kg/h, Ø 3mm 3.2 kg/h, Ø 4 mm |
| Welding material: | PP / PE / PVDF |
| Material type: | Round rod Ø 3 / 4 mm |
| Application range: | Thicknesses 8 – 30 mm |
| Weight: | 7.4 kg |
| Length: | 747 mm |
| Electronic Speedcontrol: | Electronic, on the controller |
| Mass heating: | 800 W |
| Powerbox needed: | No |
| Preheating: | 2300 W |
| Frequency: | 50Hz / 60Hz |
This item is available in 115 or 230V.
