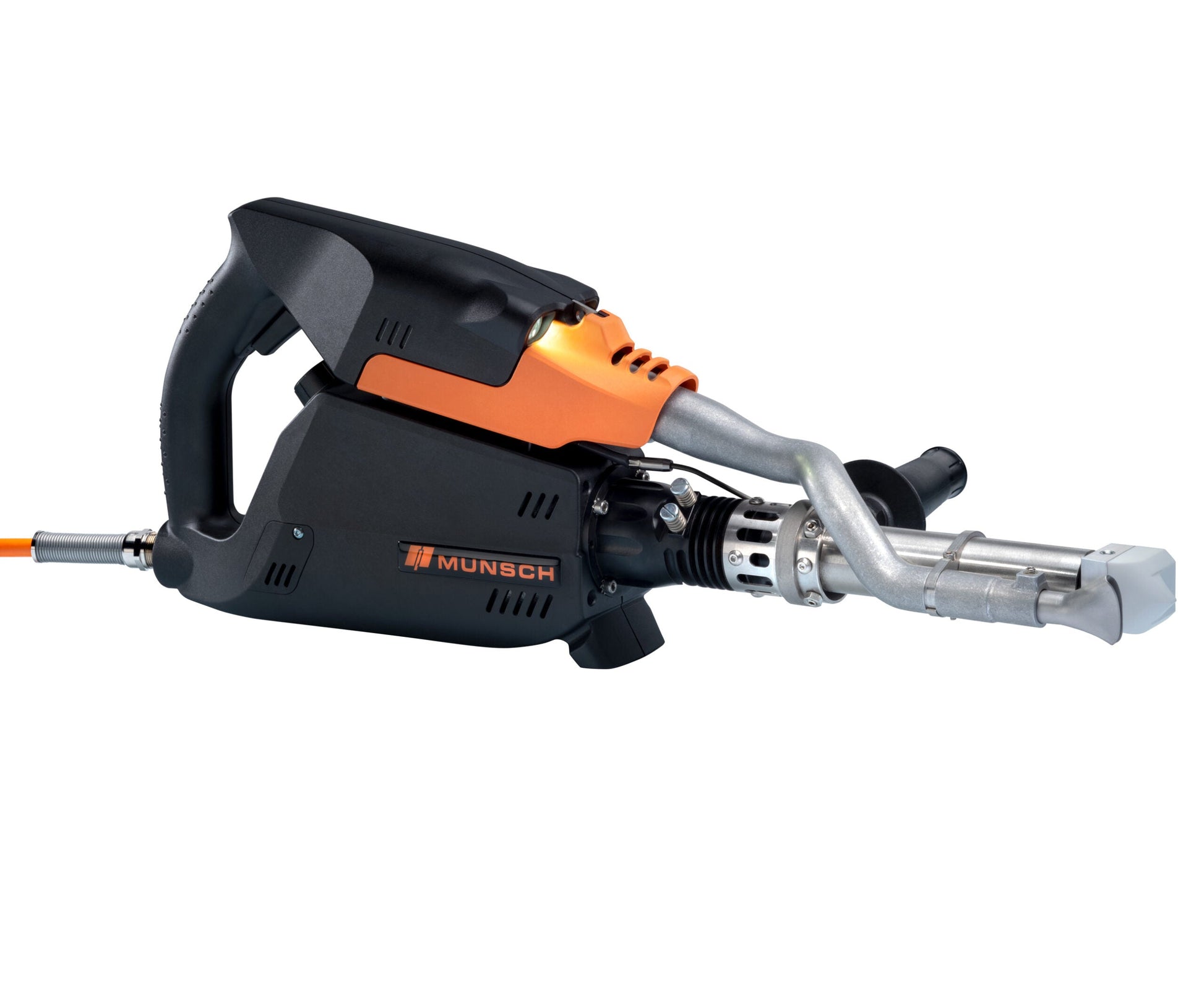

MAX-40-B
More running time. More output. More possibilities.
The MAX-40 is the well-balanced all-rounder among our Runtime Champions – with a brushless extruder motor, brushless blower and an output of up to 4 kg/h (with 5 mm wire), it delivers consistently high performance with minimal maintenance.
Weighing just 7.8 kg, it is significantly lighter than comparable models, but offers more power – and is ideal for long-term welding work in areas such as landfill and civil engineering, where every minute counts on the construction site.
The overhead preheating, ergonomic design, LED lighting and energy-efficient standby function ensure that even demanding weld seams are completed safely and conveniently.
Note: An external power box is required for operation.
Advantages
- Brushless fan with standby function & automatic switch-off
- Brushless drive for maximum running time & minimum wear
- Speed control via power box or appliance switch
- Digital temperature control for air & mass (DVS-compliant)
- 2-beam high-performance LEDs for optimum illumination
- Preset materials + free program slots
- Convenient operating menu with display
- Integrated stand for safe parking
- Dust filter for coarse particles protects components
- WiFi-ready – for future digital features
Technical Data
| Max. welding capacity: |
3.9 kg/h, Ø 5mm 2.5 kg/h, Ø 4 mm |
| Welding material: | PP / PE / PVDF |
| Material type: | Round rod Ø 4 / 5 mm |
| Application range: | Thicknesses 8 – 30 mm |
| Weight: | 7.8 kg |
| Length: | 747 mm |
| Electronic Speedcontrol: | Electronic, on the controller |
| Mass heating: | 800 W |
| Powerbox needed: | No |
| Preheating: | 2300 W |
| Frequency: | 50Hz / 60Hz |
