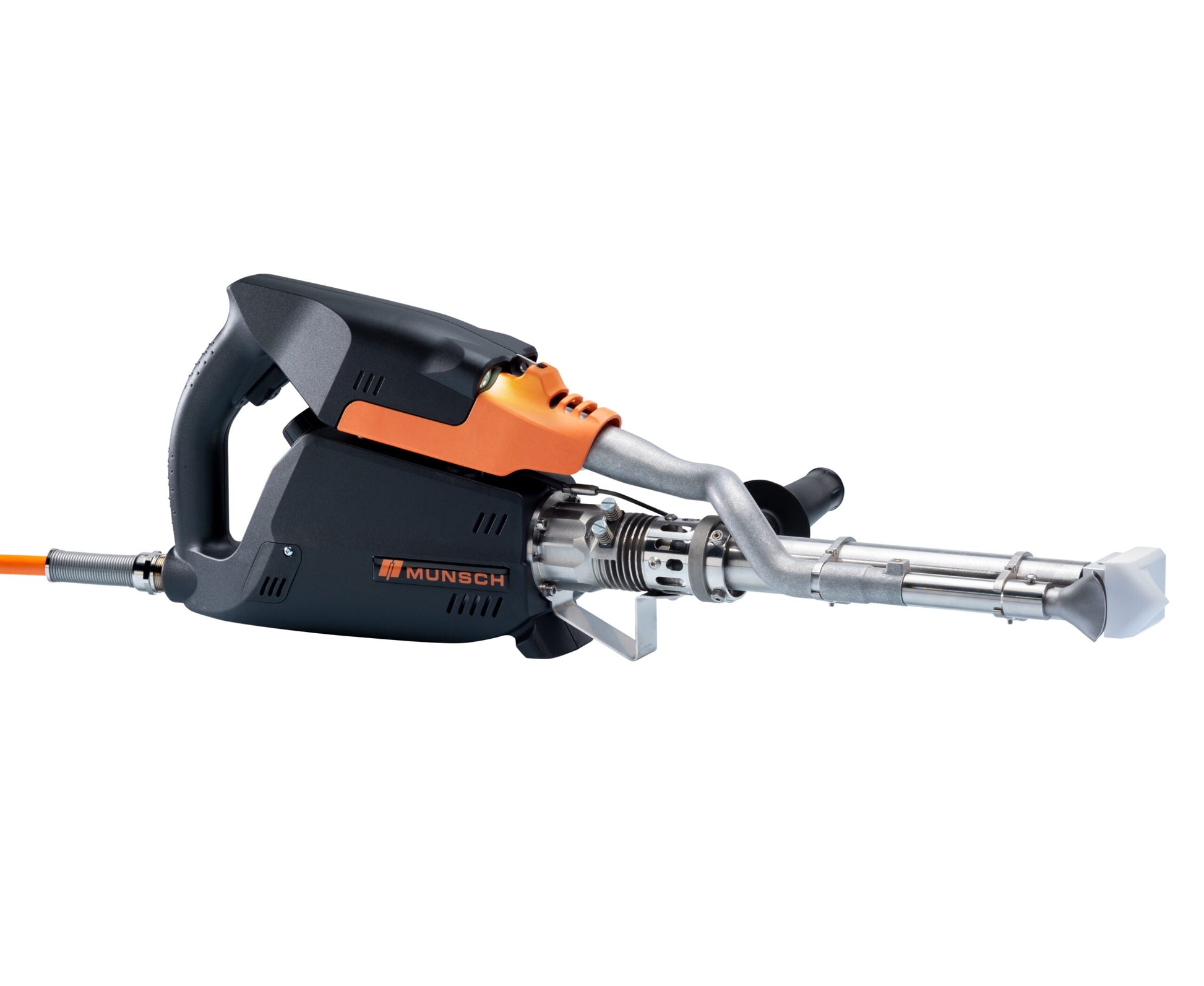

MAX-65-B

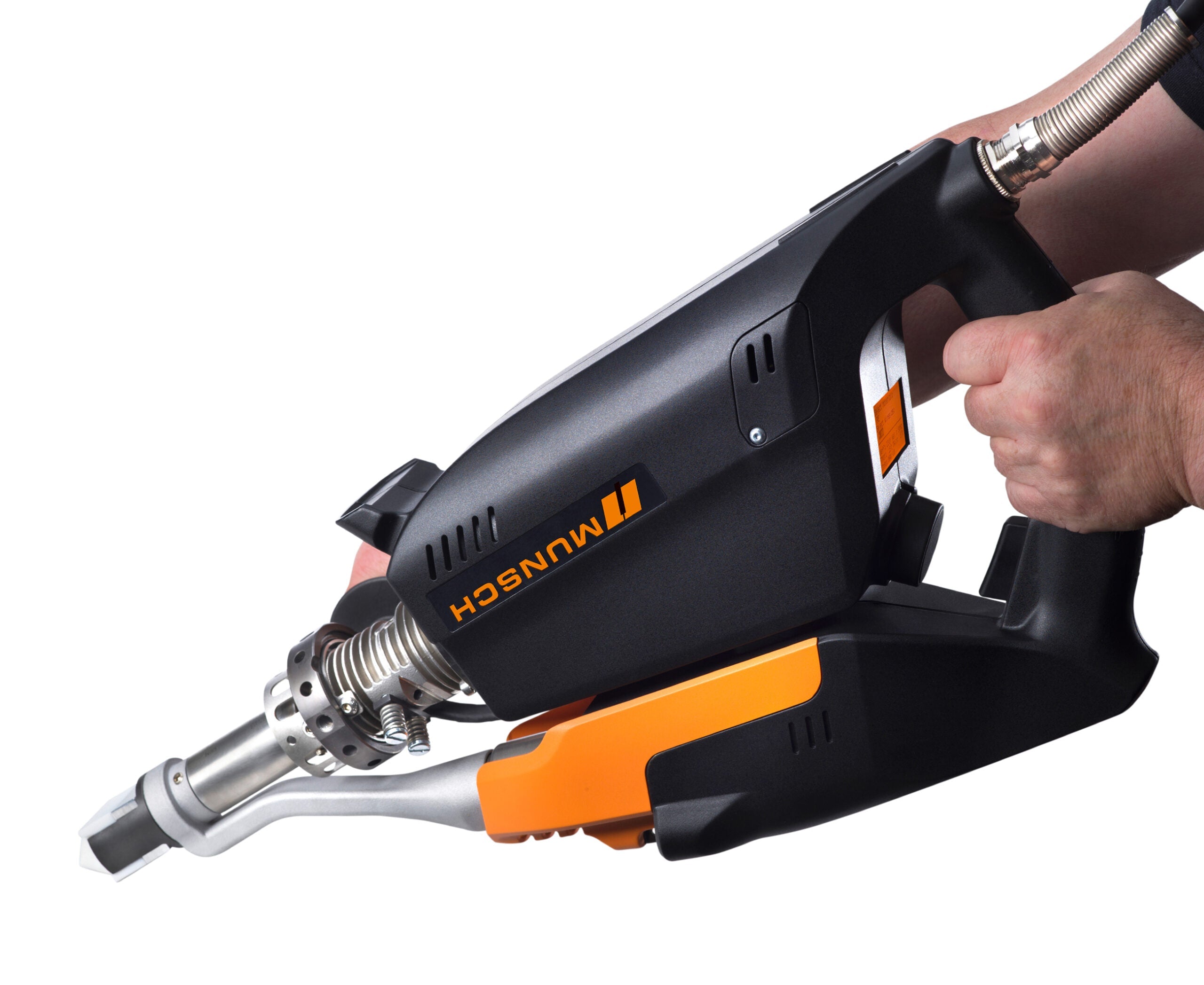

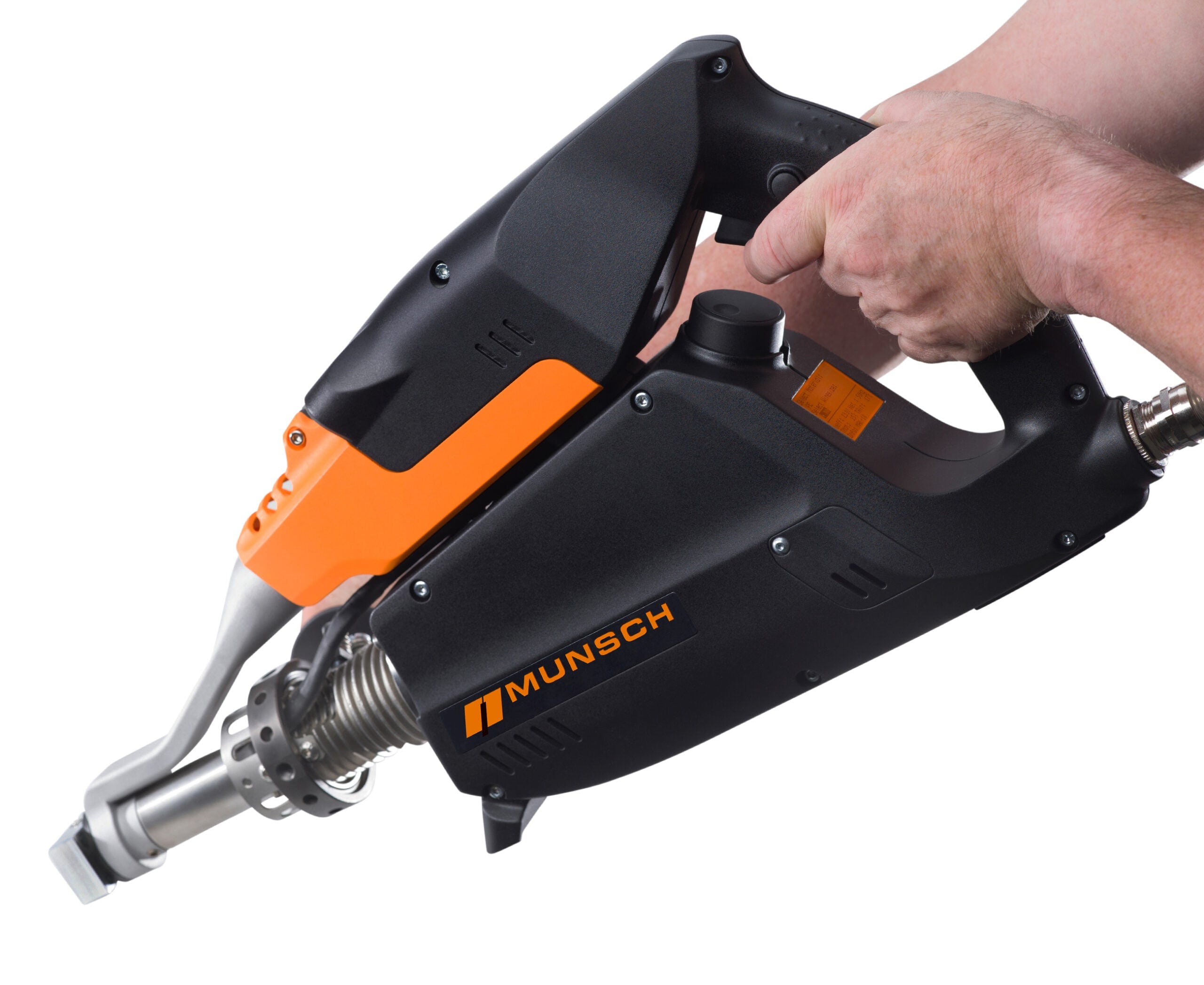

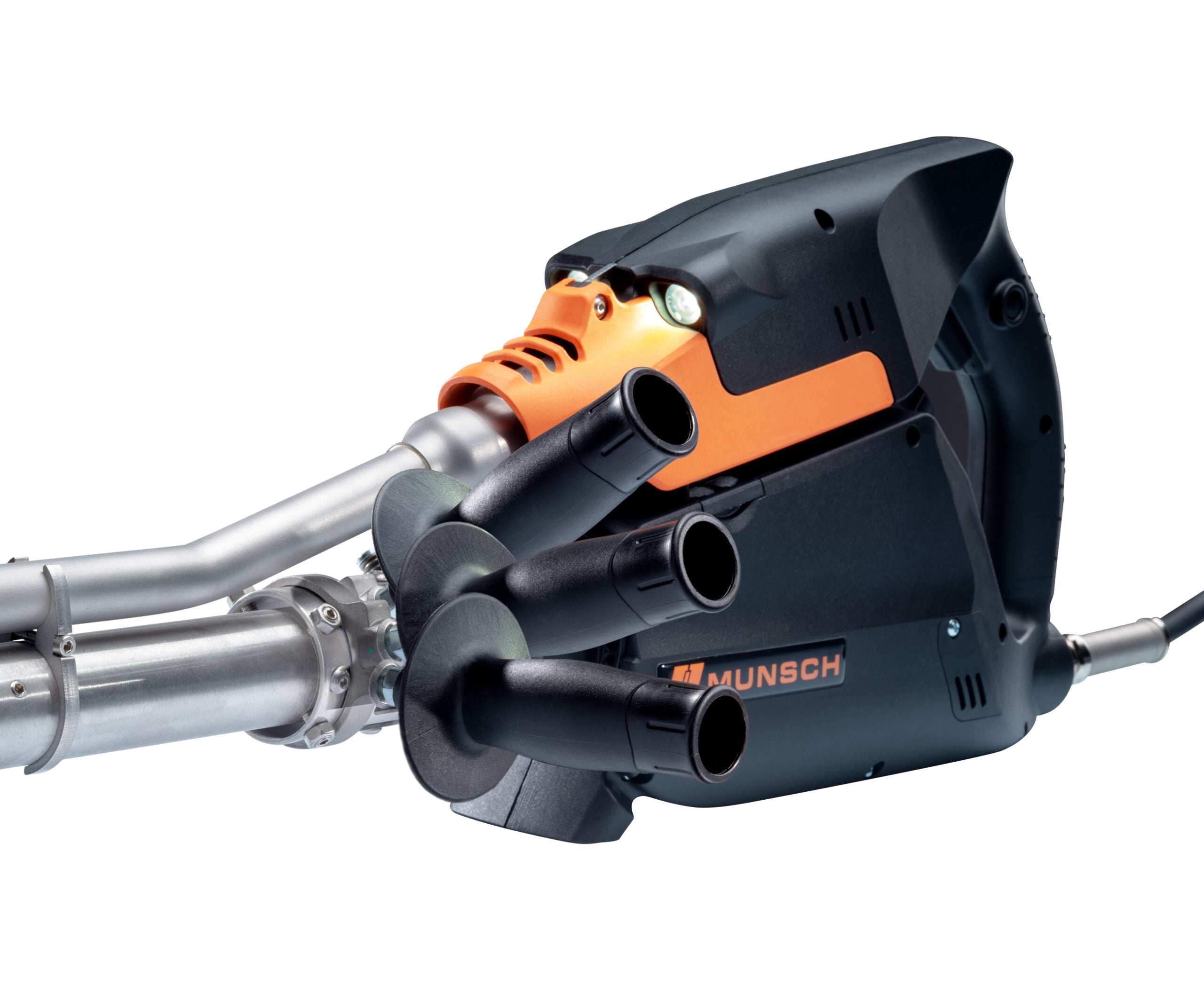

Silent and very powerful. The „great“ workaholic beneath our extruders is completely brushless and therefore very low-wear. Long working times are its speciality. This version is using sideway preheating and therefore is developed for container engineering. This version is using sideway preheating and therefore is developed for container engineering. An infinitely variable handle and numerous holding possibilities make welding of spaces with difficult access. Integrated high-power LEDs ensure good illumination in the work area. In time of non-usage of the machine, it goes into a standby-function, which results in high reduction of noise; in addition, you save up to 60% energy. When the machine has fully cooled down, the blower even switches off. For the usage of this machine a „Powerbox“ is needed.
Advantages
- Brushless preheating blower with standby-function and automatic shut-down
- Brushless drive
- Speed can be varied via Powerbox and / or trigger
- Comfortable user menu with automatic temperature setting

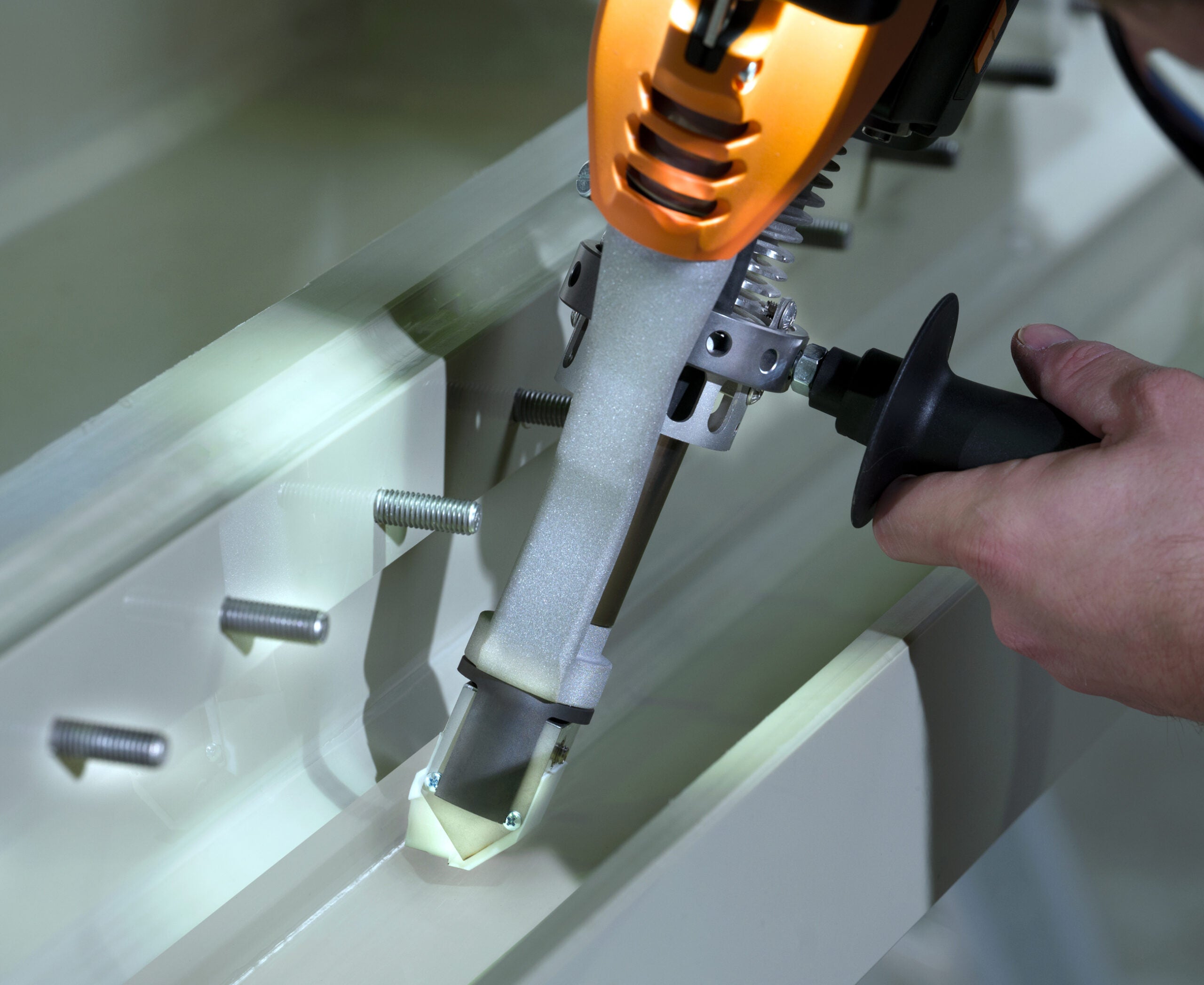

- Dual beam high-power LEDs
- Three materials preset, more program spaces free to set your own material

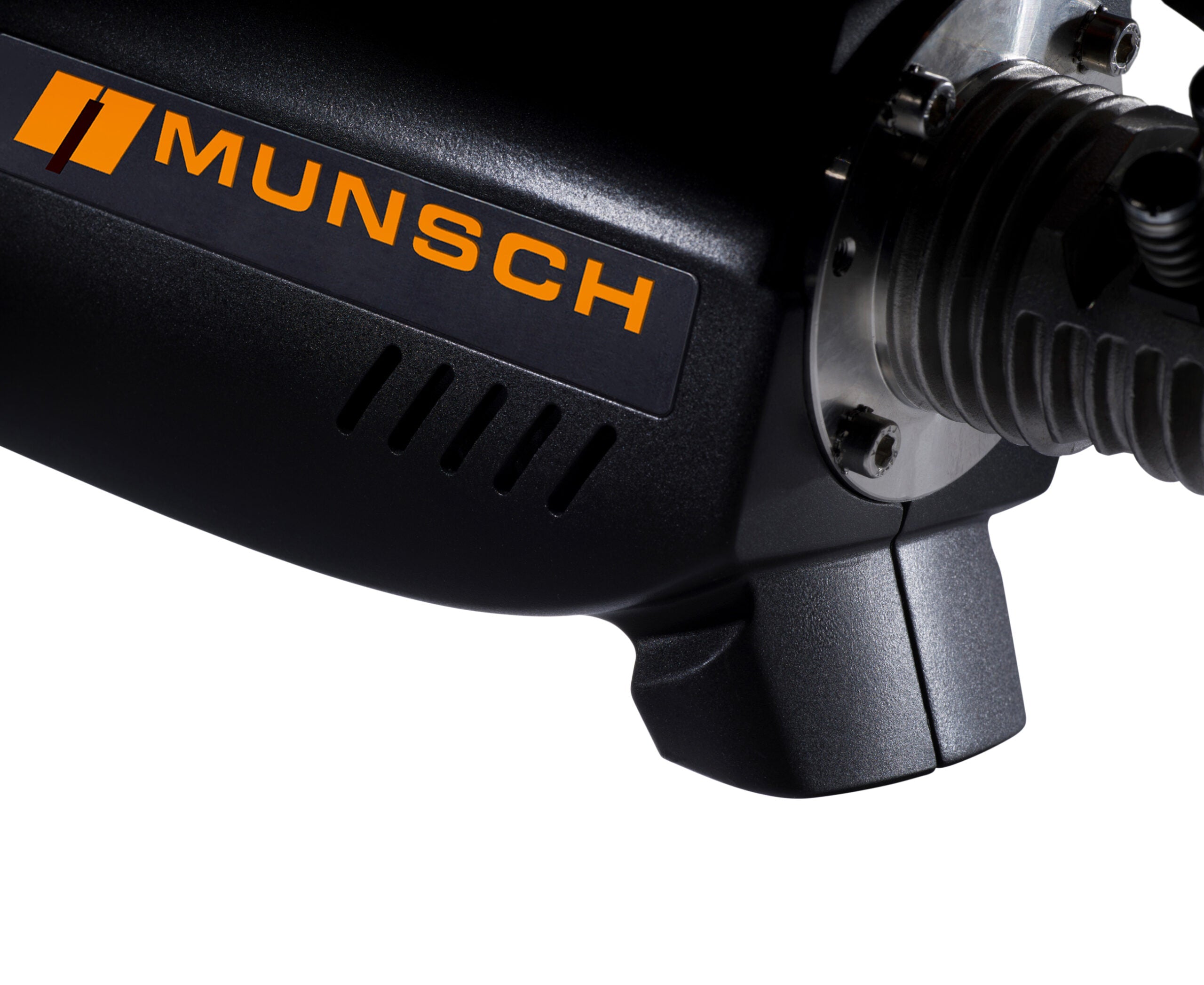

- Integrated machine stand

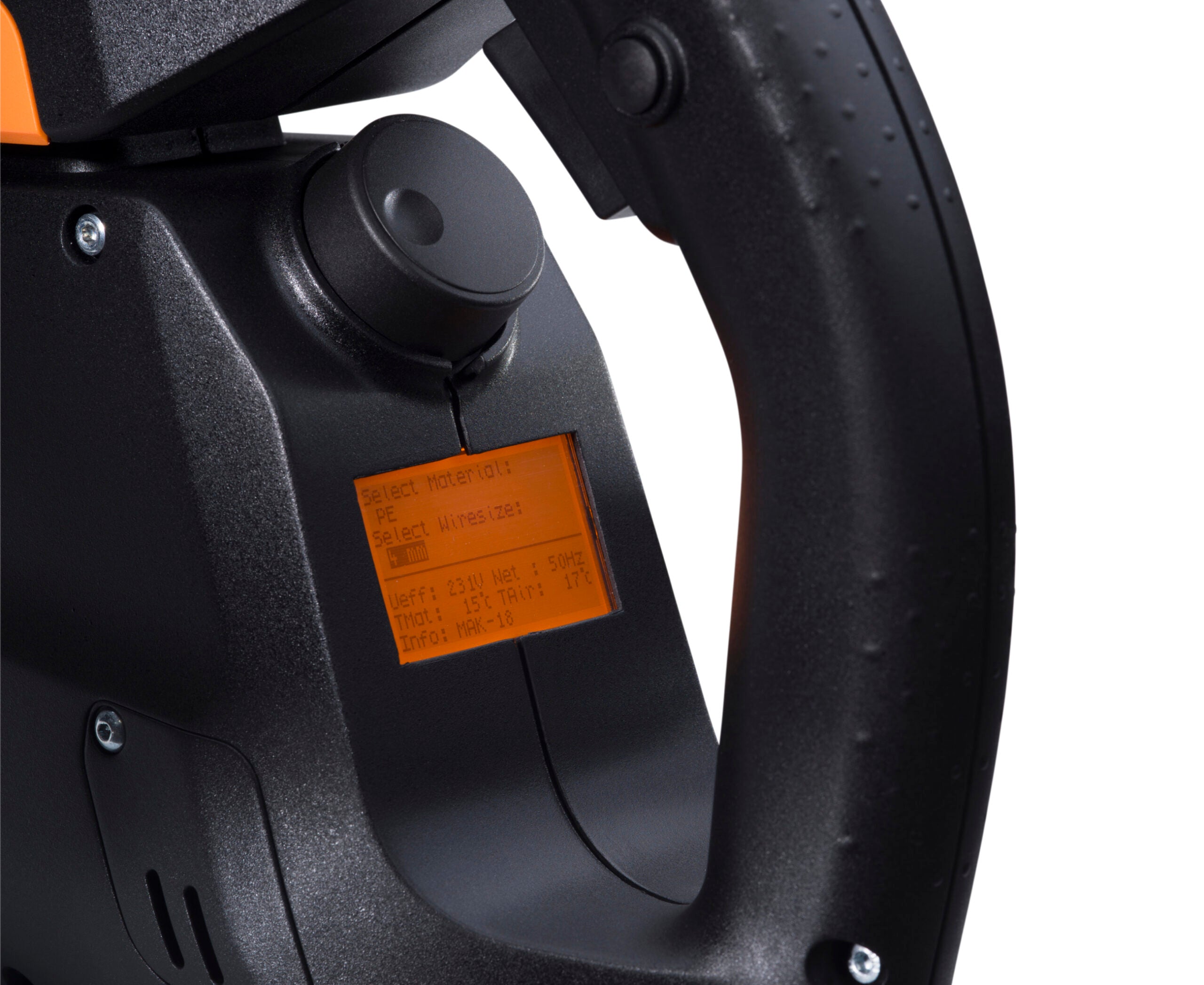

- With display / menu
- Temperatures digitally adjustable
- WiFi-connectivity
Technical Data
Max. welding capacity: |
6.5 kg/h, Ø 5mm 4.0 kg/h, Ø 4 mm |
Welding material: | PP / PE / PVDF |
Material type: | Round rod Ø 4 / 5 mm |
Application range: | Thicknesses from 12 – 40 mm |
Weight: | 8.8 kg |
Length: | 847 mm |
Electronic Speedcontrol: | Yes |
Mass heating: | 800 W |
Powerbox needed: | Yes |
Preheating: | 2300 W |
Frequency: | 50Hz / 60Hz |
