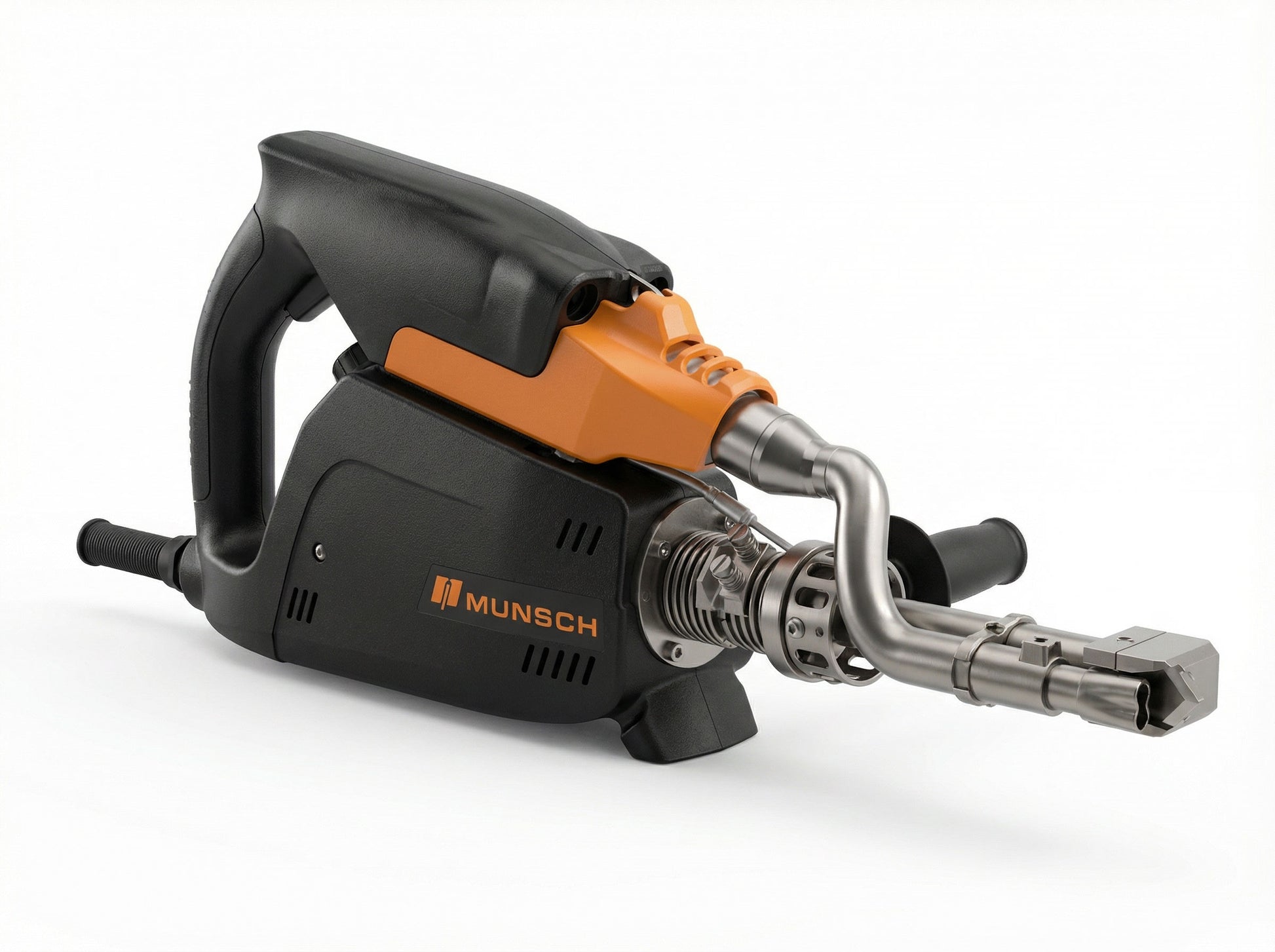

Munsch Plastic Welding
MAX PVC
The PVC-U Taskforce
Welding PVC-U requires precision, patience and the right tool.
This is exactly where our PVC Taskforce comes in: Specially developed for the special material behavior of PVC-U, it offers stable temperature control, maximum seam quality and the good feeling of working with a tool that understands your trade.
A compact powerhouse that transforms PVC challenges into clean results.
- Optimized heating system for PVC-U – stable, precise temperature control
- Balanced extrusion performance for clean seams

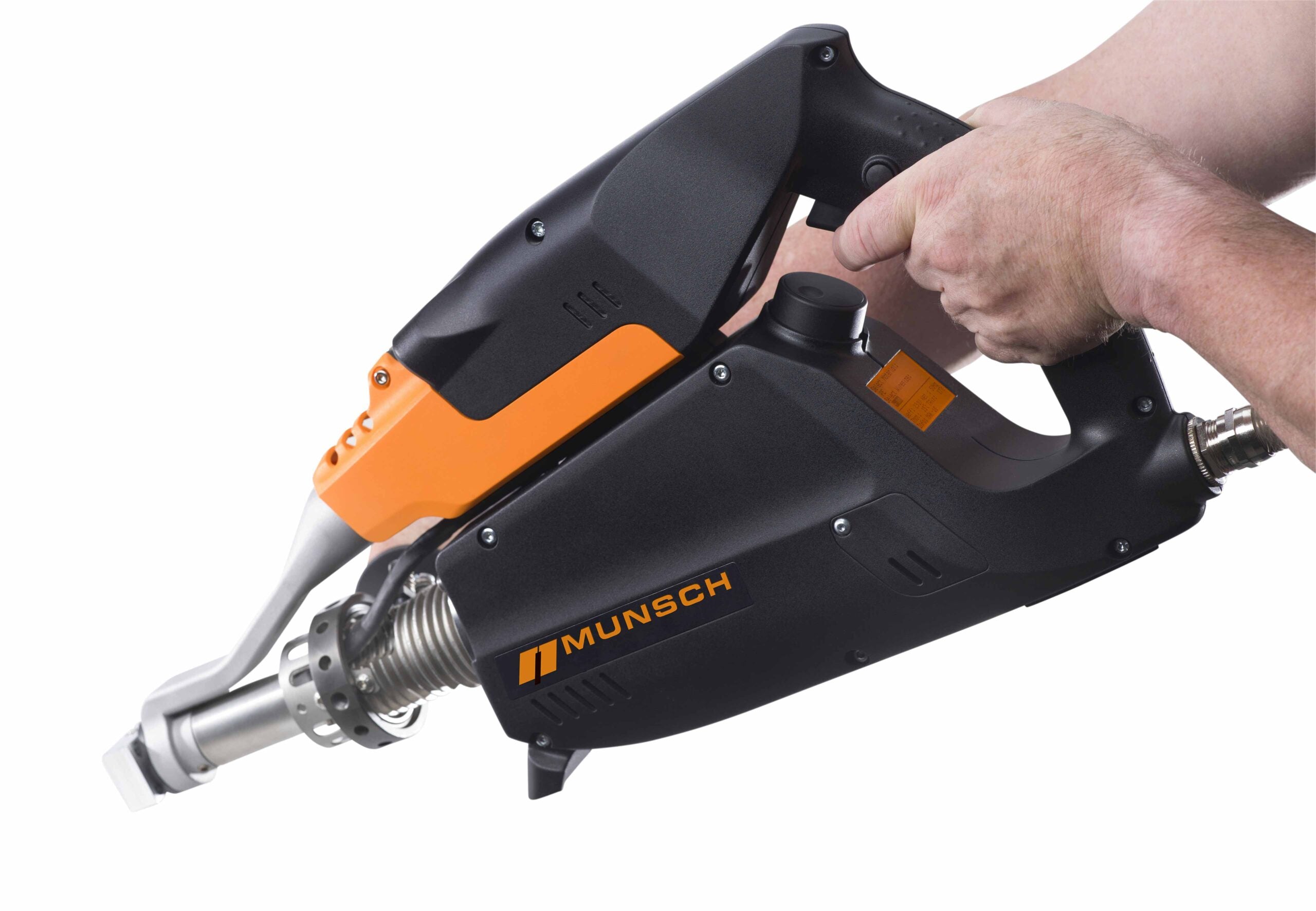

- Ergonomic handling – ideal for controlled movements
- Separate air and melt temperature control for DVS-compliant settings
- High-performance fan – quiet, efficient, durable
- Bright LED lighting for a perfect view of the weld seam
- Intuitive user interface with preset modes for common PVC-U applications
- Robust screw and drive system – designed for the demanding material behavior of PVC

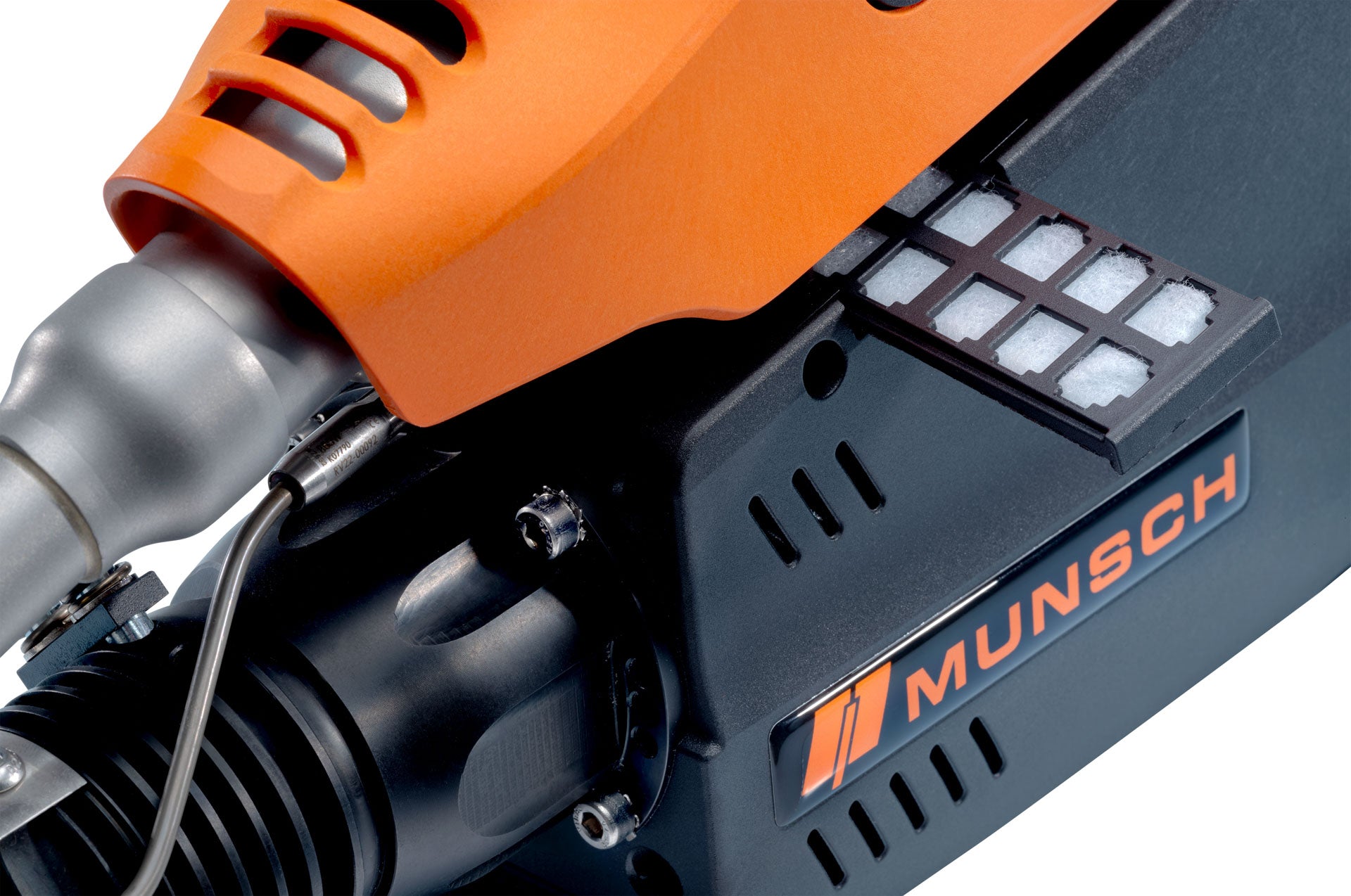

- Integrated stand and dust filter included
Technical Data
| Output Dowlex granulate (kg/h) |
– |
|---|---|
| Output 3mm welding rod (kg/h) |
1.3 |
| Output 4 mm welding rod (kg/h) |
2 *with PVC-U |
| Output 5mm welding rod (kg/h) |
– |
| Wall thickness (mm) |
4 |
| Wall thickness up to (mm) |
20 |
| Material |
PE, PP |
| Available |
115V & 230V |
| Separately controlled mass and air temperature |
Yes, (DVS) |
| Weight (kg) |
5,8 |
| Length (mm) |
698 |
| LED lighting |
Yes |
| 360° welding shoe |
Yes |
| Display |
Yes |
| Drive type extruder motor |
Brushed |
| Fan motor drive type |
Brushless |
| Powerbox |
no |
| Heating tape power (W) |
400 |
| Preheating fan power (W) for 110/230V |
1600/2300 |
| Frequency (Hz) |
50 / 60 |
| Power cord length (m) |
7.5 |
| Approvals |
CE, UKCA |
| Protection class |
I |
| Country of origin |
Germany |
| Scope of delivery |

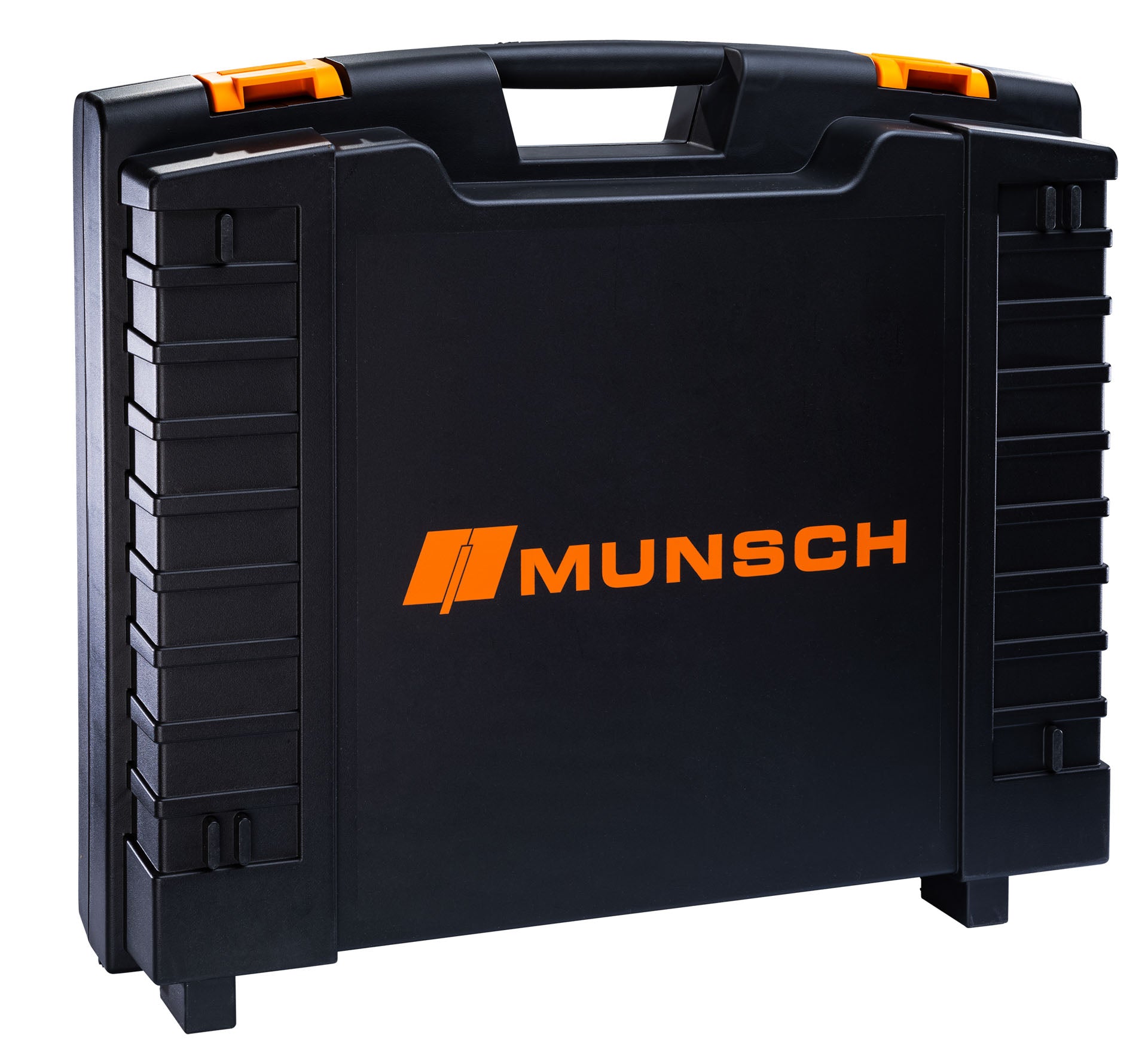

Transport case, Tool set, Welding shoes, Warm air hood |
