Munsch Plastic Welding

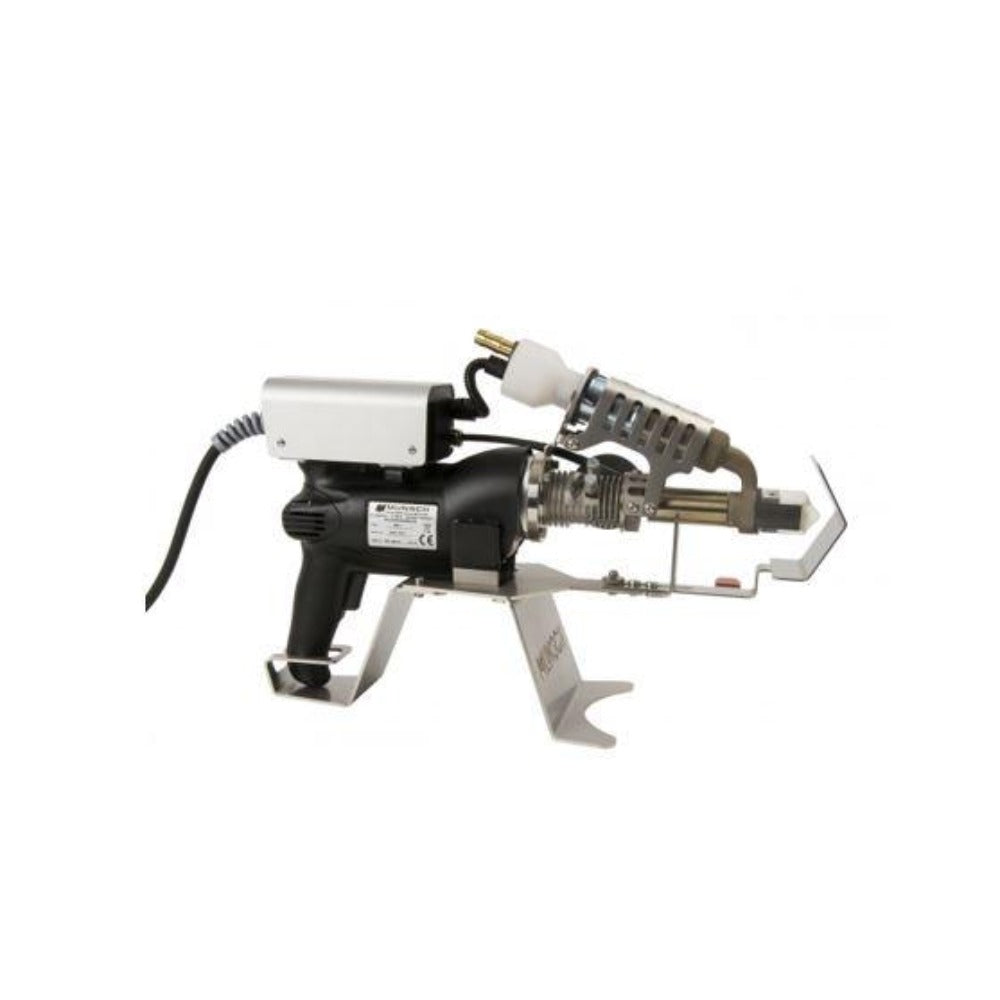

MEK-18
Small, powerful, variable. With this digitally controlled extruder you can easily weld 15mm sheet thickness, or even 20mm sheet thickness. With the 360° turnable welding shoe you nearly enter each corner and the blower can be mounted in 3 different positions (right, top, left).
Advantages

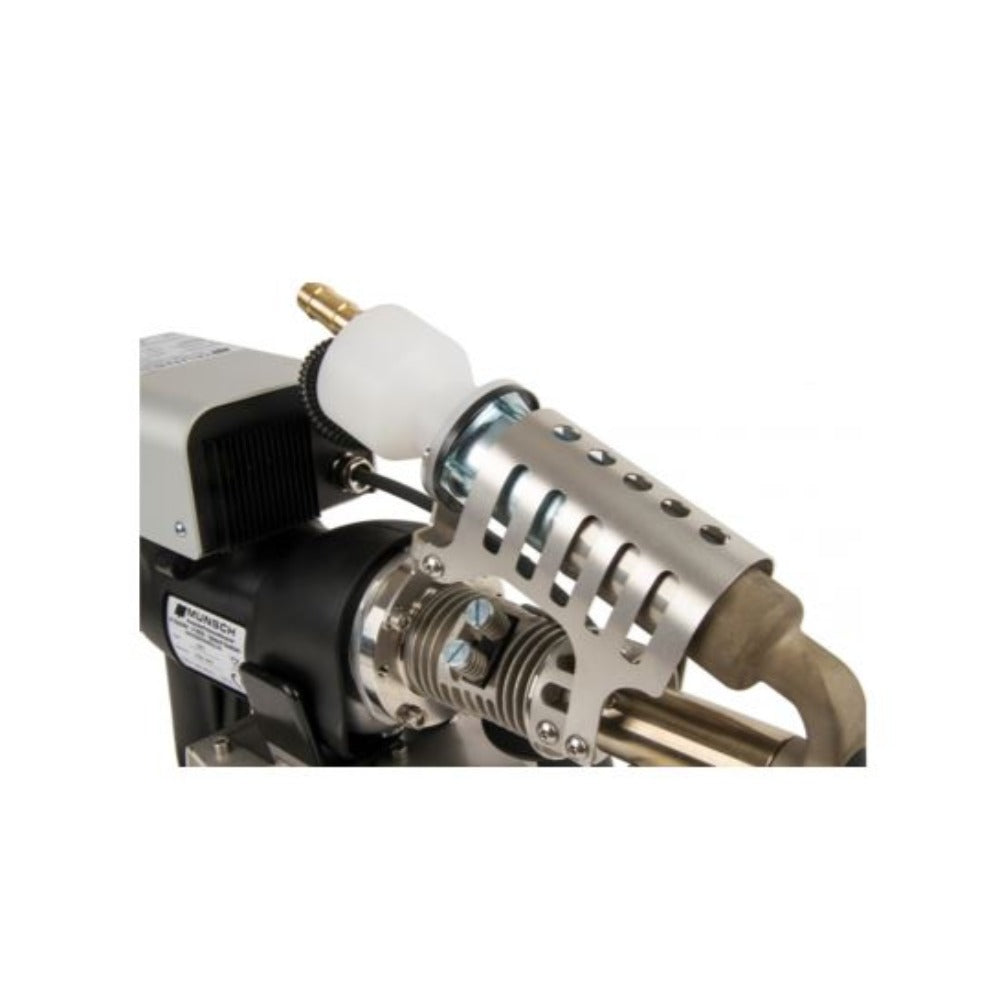

- Brushless preheating blower

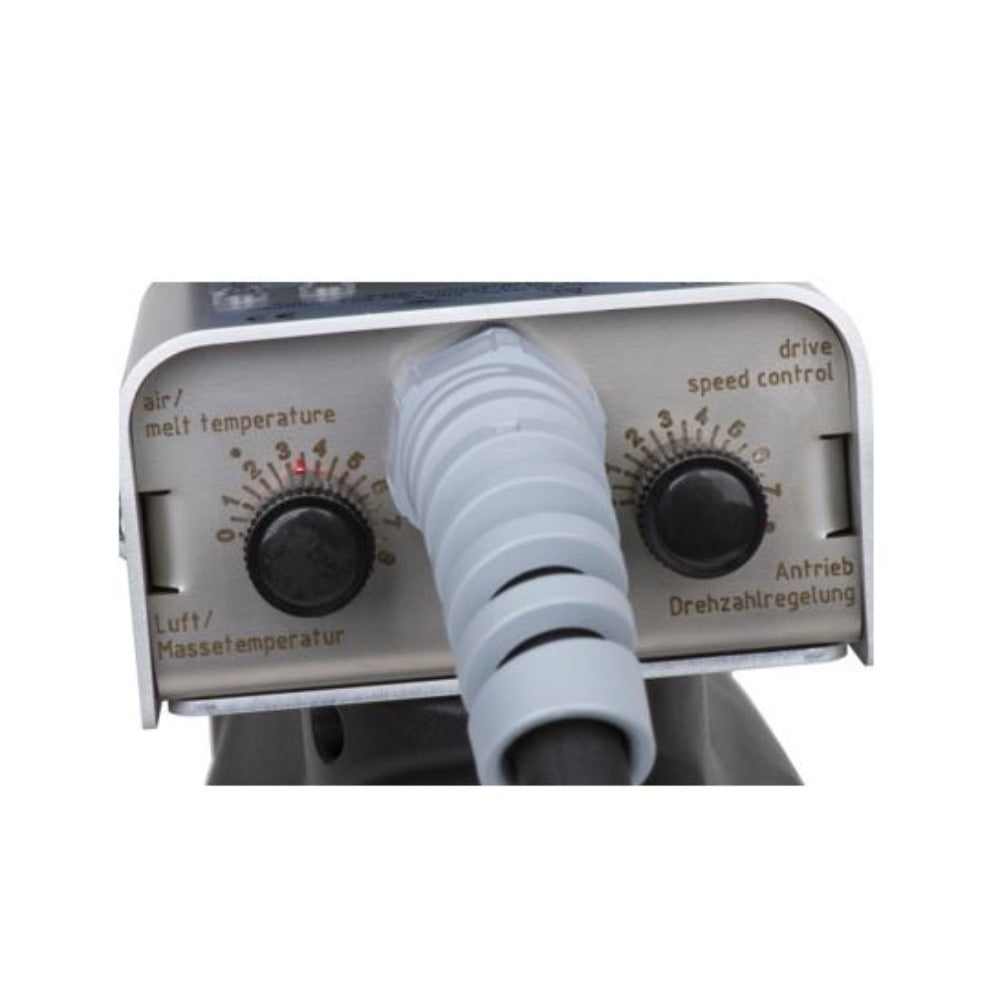

- Comfortable user menu with automatic temperature setting
- Four materials preset, more program spaces free to set your own material

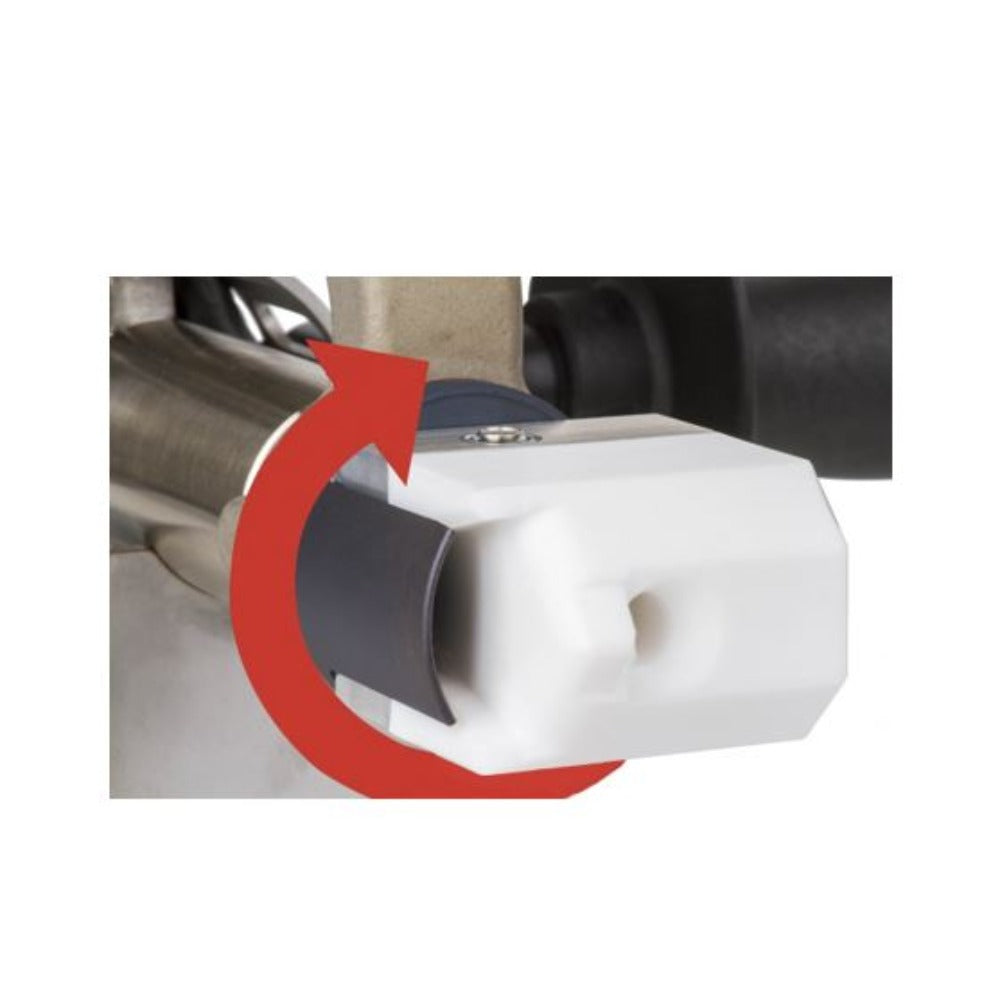

- 360° turnable welding shoe
- Machine stand included
Technical Data
|
Max. welding capacity: |
1.8 kg/h, Ø 4mm |
|
Welding material: |
PP / PE / PVDF |
|
Material type: |
Round rod Ø 3 / 4 mm |
|
Application range: |
Thicknesses from 4 – 15 mm |
|
Weight: |
5.5 kg |
|
Length: |
470 mm |
|
Electronic Speed control: |
Yes |
|
Powerbox needed: |
No |
|
Preheating: |
2300 W, for use with external air supply |
We include for free:
- 1 welding shoe (shaped to customers’ needs)
- Tool and maintenance kit
- Machine stand
