Munsch Plastic Welding

MEK-25 c/w Powerbox

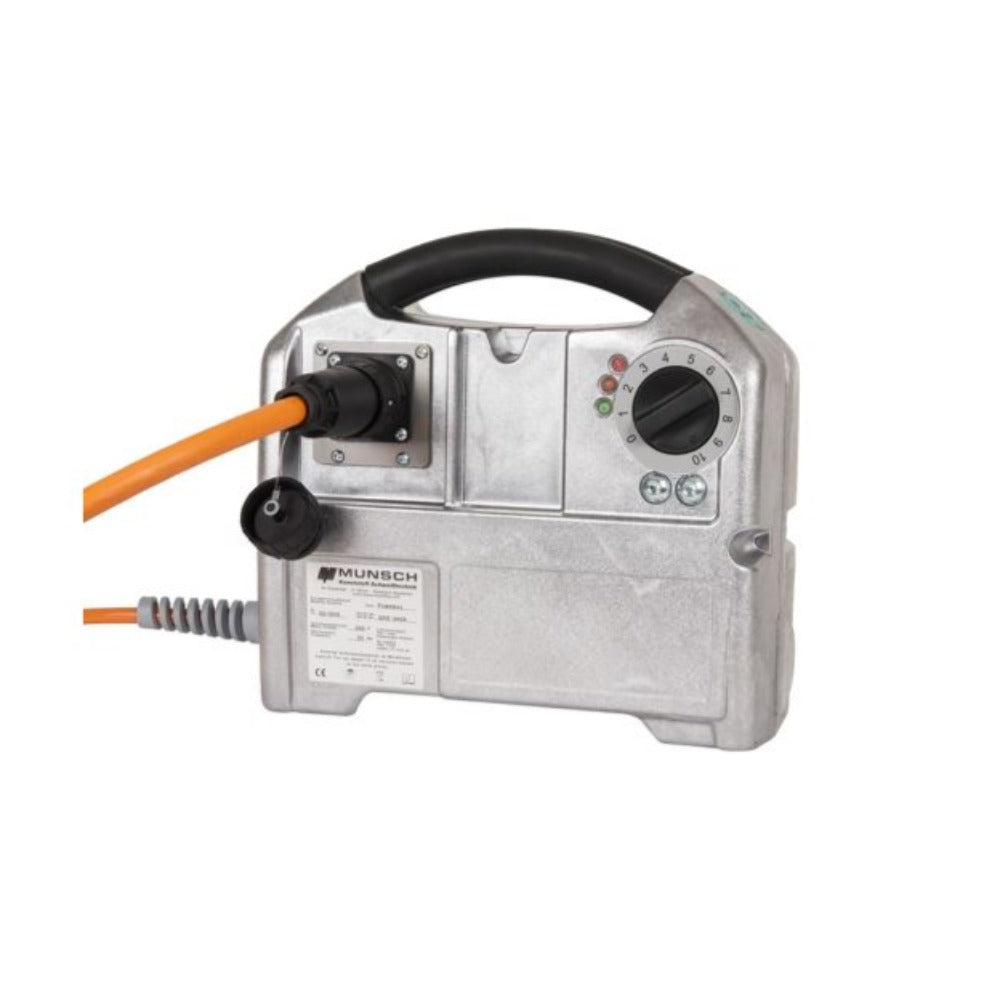

The "small" workaholic beneath our extruders is completely brushless and therefore very low-wear. Long working times are its speciality. With the same dimensions as MEK-18, this extruder has an output of 2.5kg/h instead of 1.8kg/h. For the use of this machine a "Powerbox“ is needed.

Advantages

  • Brushless drive

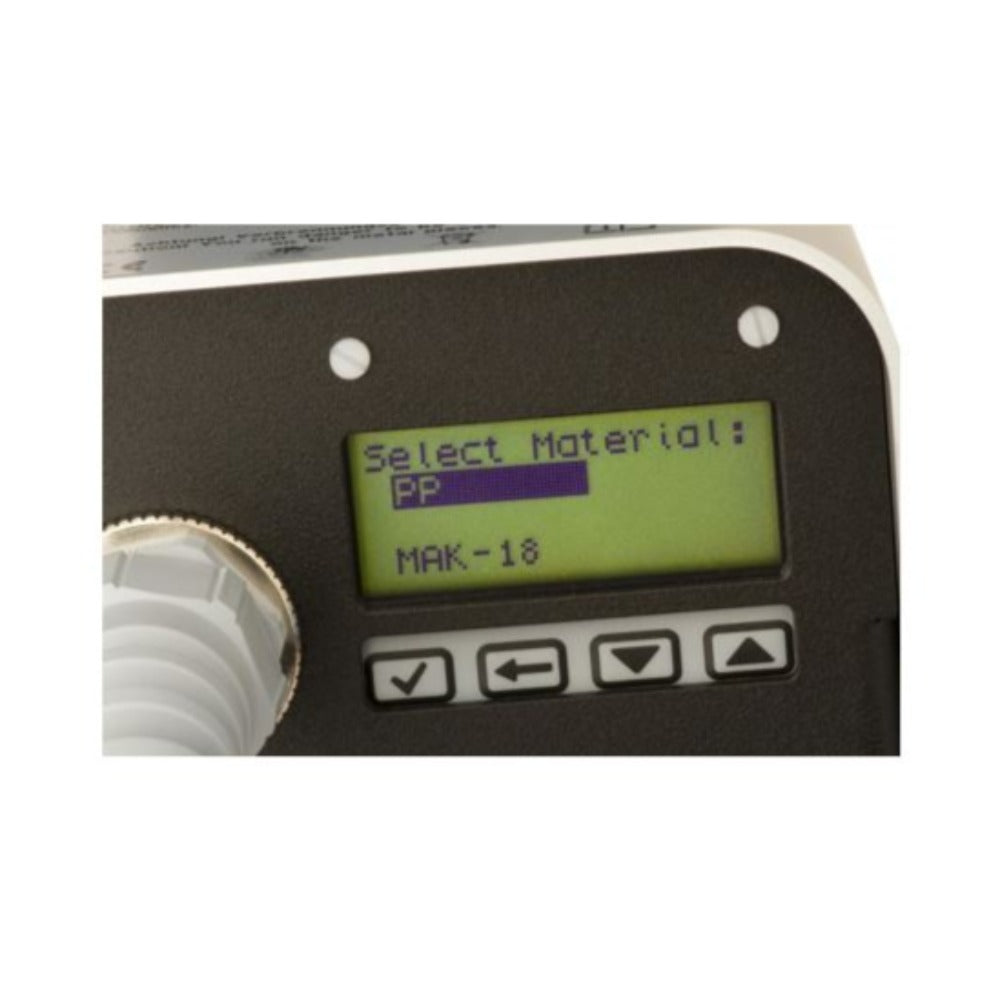

  • Comfortable user menu with automatic temperature setting
  • Three materials preset, more program spaces free to set your own material

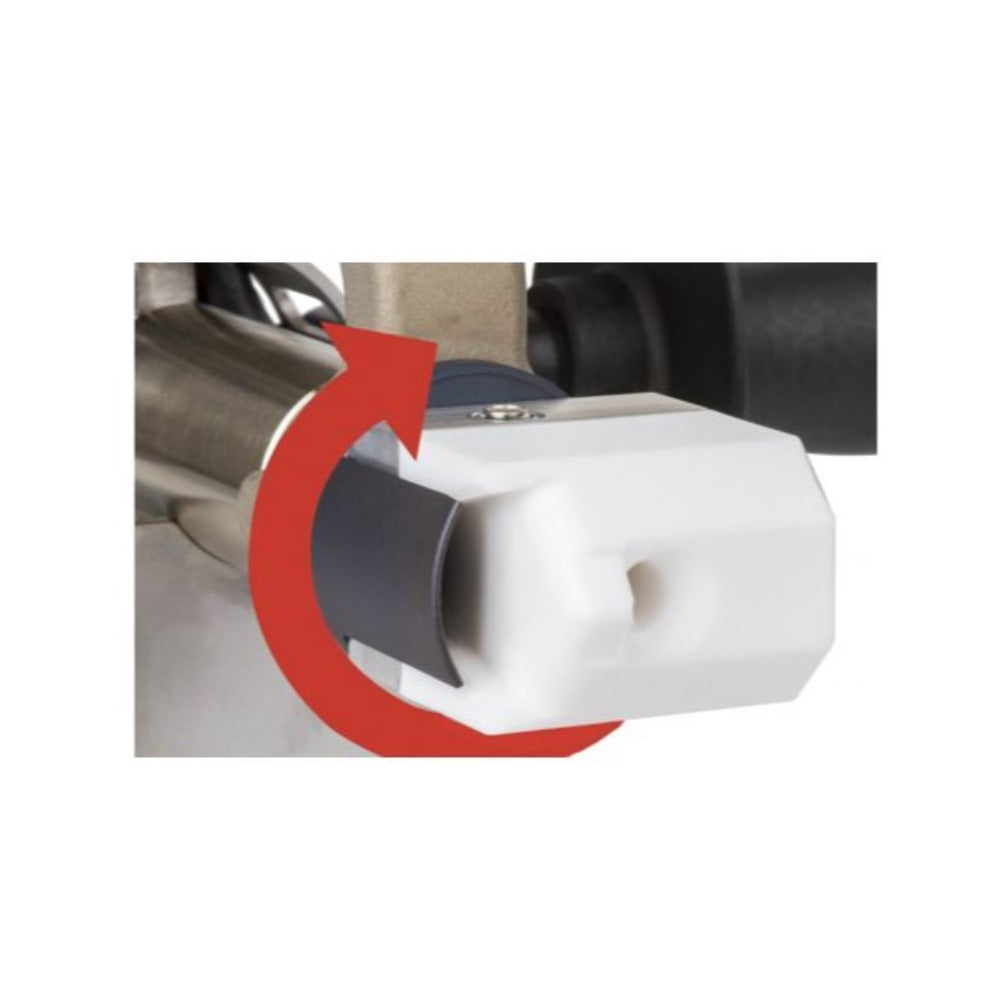

  • 360° turnable welding shoe

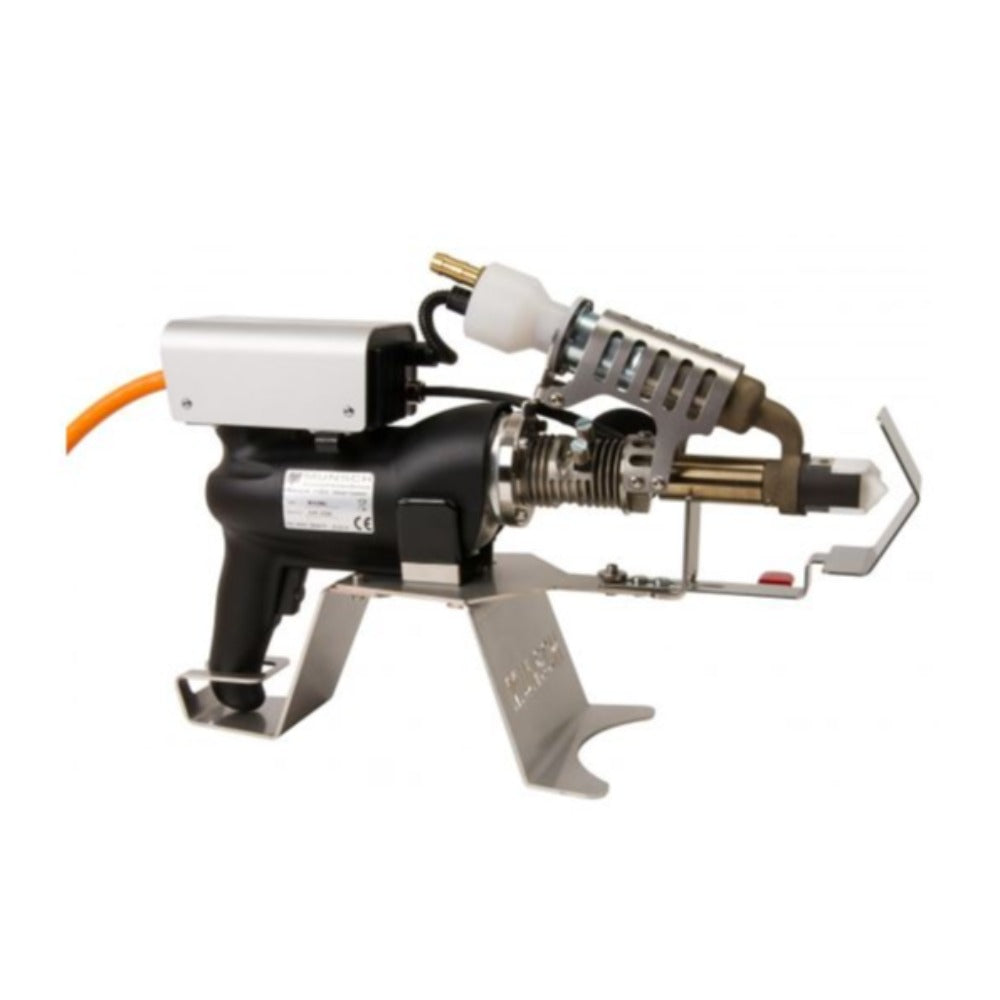

  • Machine stand included
  • Speed can be varied via Powerbox and / or trigger

Technical Data

Max. welding capacity:

2.5 kg/h, Ø 4mm
1.4 kg/h, Ø 3 mm

Welding material:

PP / PE / PVDF

Material type:

Round rod Ø 3 / 4 mm

Application range:

Thicknesses from 4 – 15 mm

Weight:

5.5 kg

Length:

470 mm

Electronic Speedcontrol:

yes

Mass heating:

400 W

Powerbox needed:

Yes

Preheating:

2300 W, for use with external air supply

We include for free:

  • 1 welding shoe (shaped to customers’ needs)
  • Tool and maintenance kit
  • Machine stand
