Munsch Plastic Welding
MEK-36-B
The "small powerful“. This extruder is driven by a powerful 2000W drive. With an output of 3.6kg per hour it is perfect for usage of sheet thicknesses from 8 to 30mm. By non-simultaneous heating of mass and air temperature, this machine can be used on normal house connection.
Advantages
- Brushless preheating blower

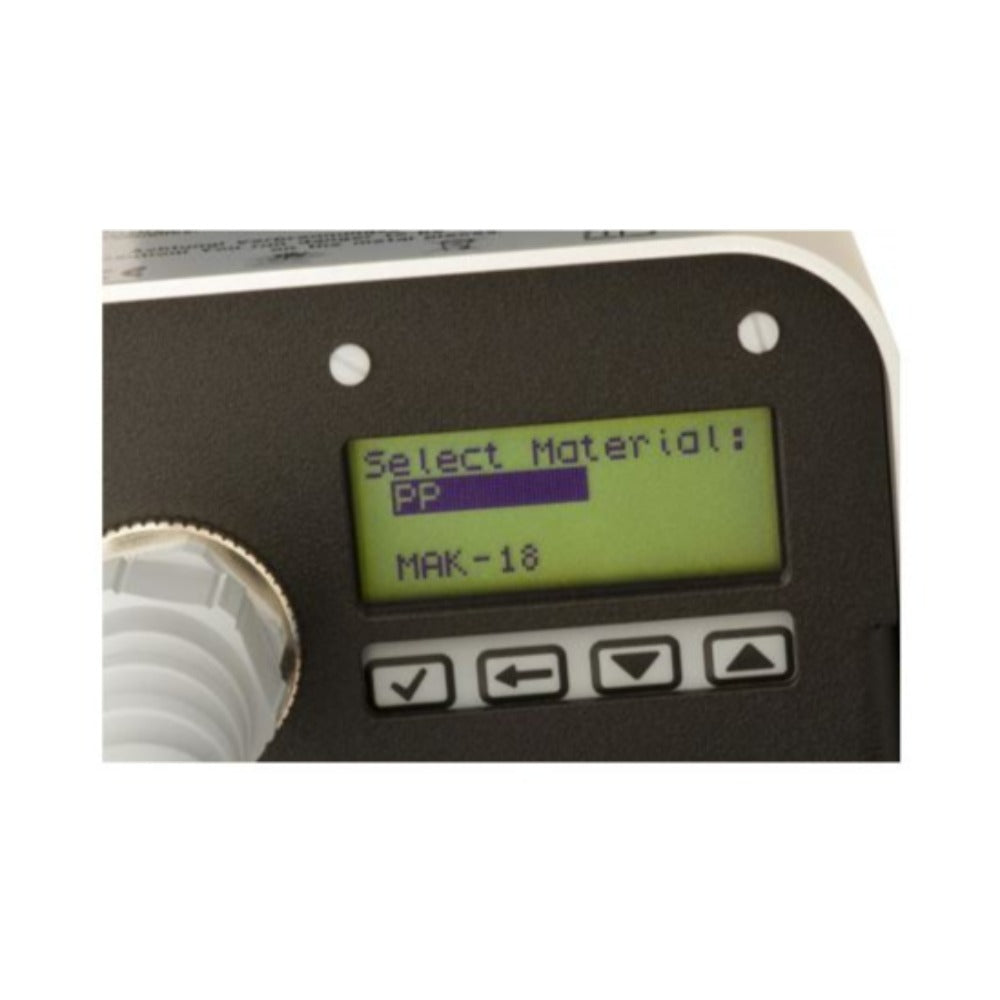

- Comfortable user menu with automatic temperature setting
- Three materials preset, more program spaces free to set your own material
- Machine stand included, mounted
Technical Data
|
Max. welding capacity: |
3.6 kg/h, Ø 5mm |
|
Welding material: |
PP / PE / PVDF |
|
Material type: |
Round rod Ø 4 / 5 mm |
|
Application range: |
Thicknesses from 8 – 30 mm |
|
Weight: |
7.5 kg |
|
Length: |
570 mm |
|
Electronic Speedcontrol: |
yes |
|
Mass heating: |
650 W |
|
Powerbox needed: |
No |
|
Preheating: |
2300 W, for external air supply |
We include for free:
- 1 welding shoe (shaped to customers’ needs)
- Tool and maintenance kit
