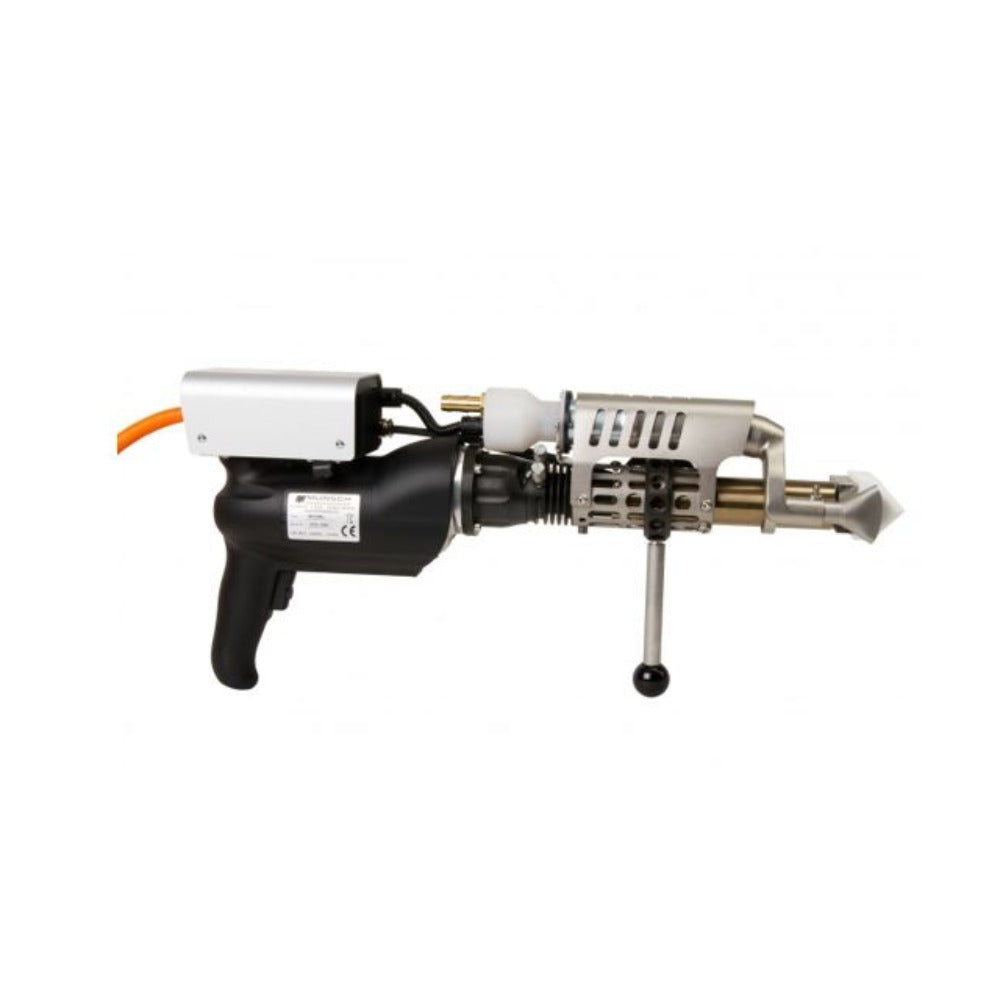

MEK-40-B c/w Powerbox
The "medium“ workaholic beneath our extruders is completely brushless and therefore very low-wear. Long working times are its speciality. A little bit smaller than the MAK-36, but more output, that’s the great advantage of this extruder. This version is using sideway preheating and therefore is developed for container engineering. For the usage of this machine a "Powerbox“ is needed.
Advantages
- Brushless drive

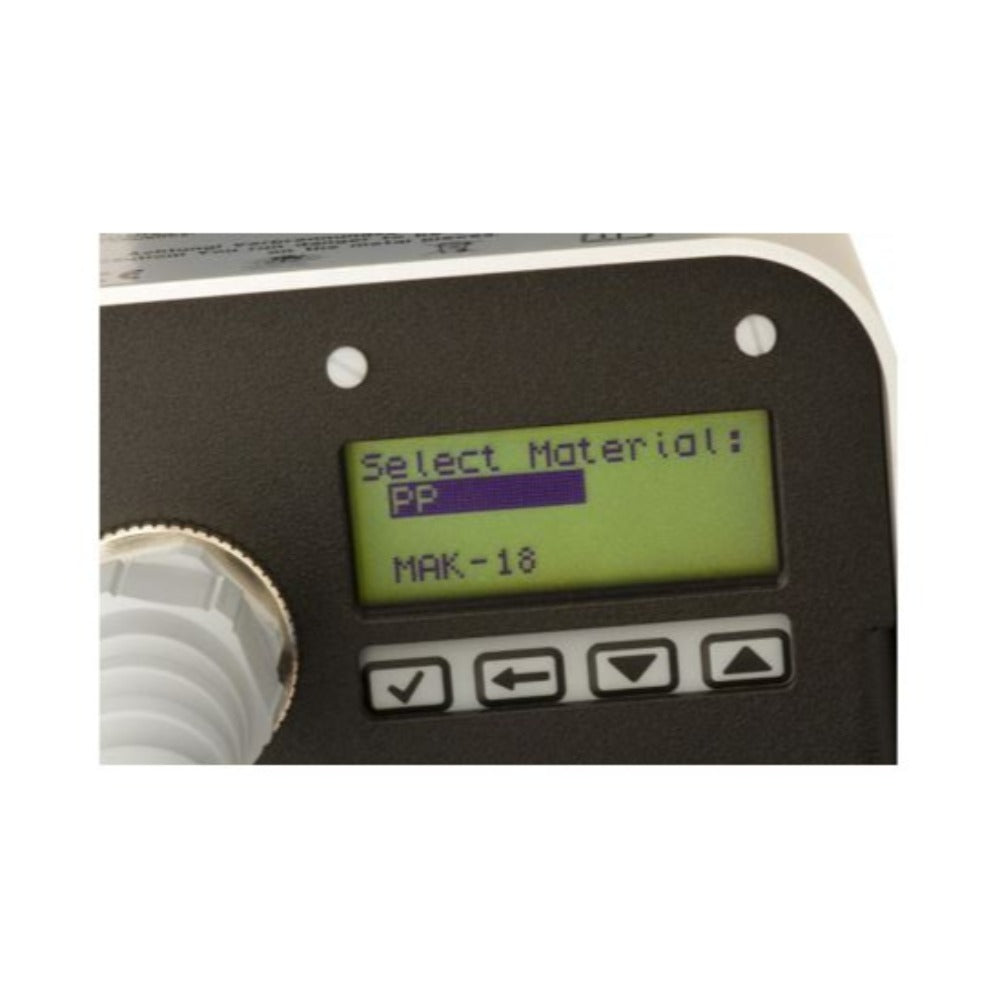

- Comfortable user menu with automatic temperature setting
- Three materials preset, more program spaces free to set your own material
- Machine stand included, mounted
- Speed can be varied via Powerbox and / or trigger
Technical Data
Max. welding capacity: |
3.9 kg/h, Ø 5mm |
Welding material: |
PP / PE / PVDF |
Material type: |
Round rod Ø 4 / 5 mm |
Application range: |
Thicknesses from 8 – 30 mm |
Weight: |
8.0 kg |
Length: |
570 mm |
Electronic Speedcontrol: |
Yes |
Mass heating: |
650 W |
Powerbox needed: |
Yes |

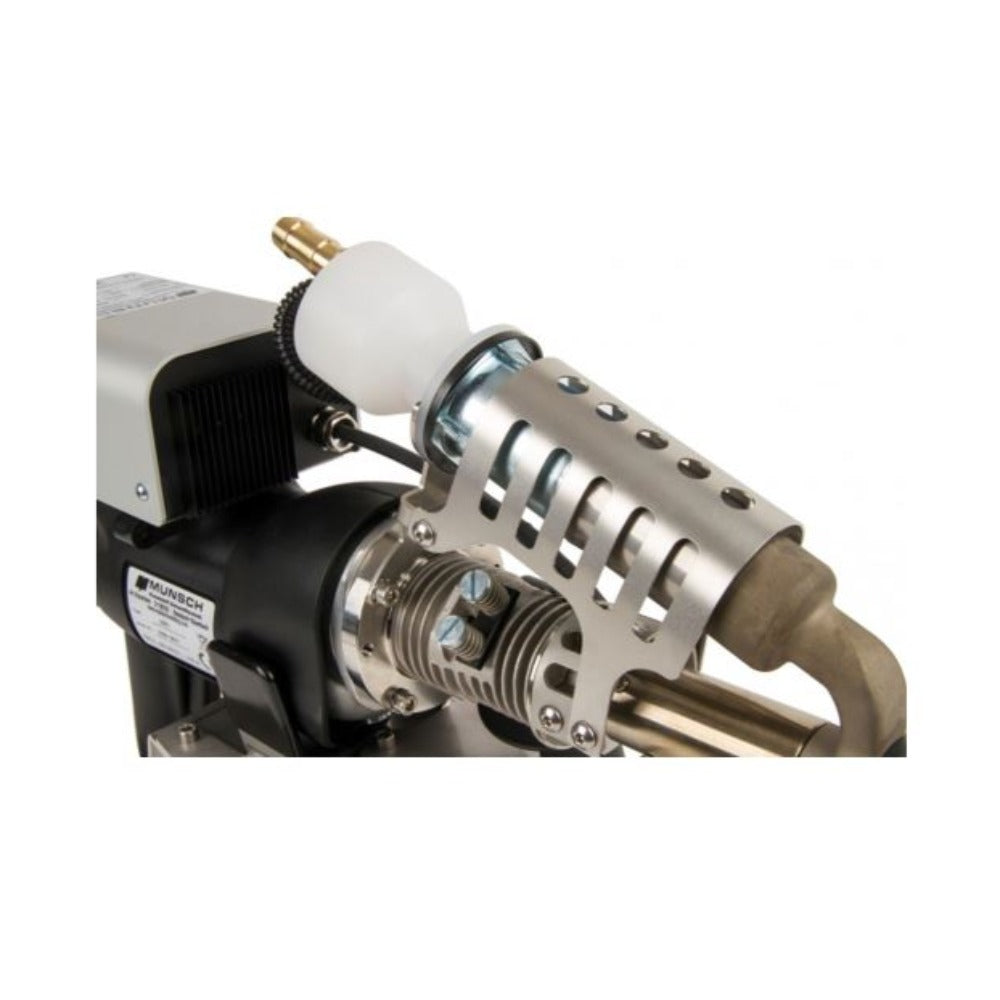

Preheating: |
2300 W, for external air supply |
We include for free:
- 1 welding shoe (shaped to customers’ needs)
- Tool and maintenance kit
