Munsch Plastic Welding

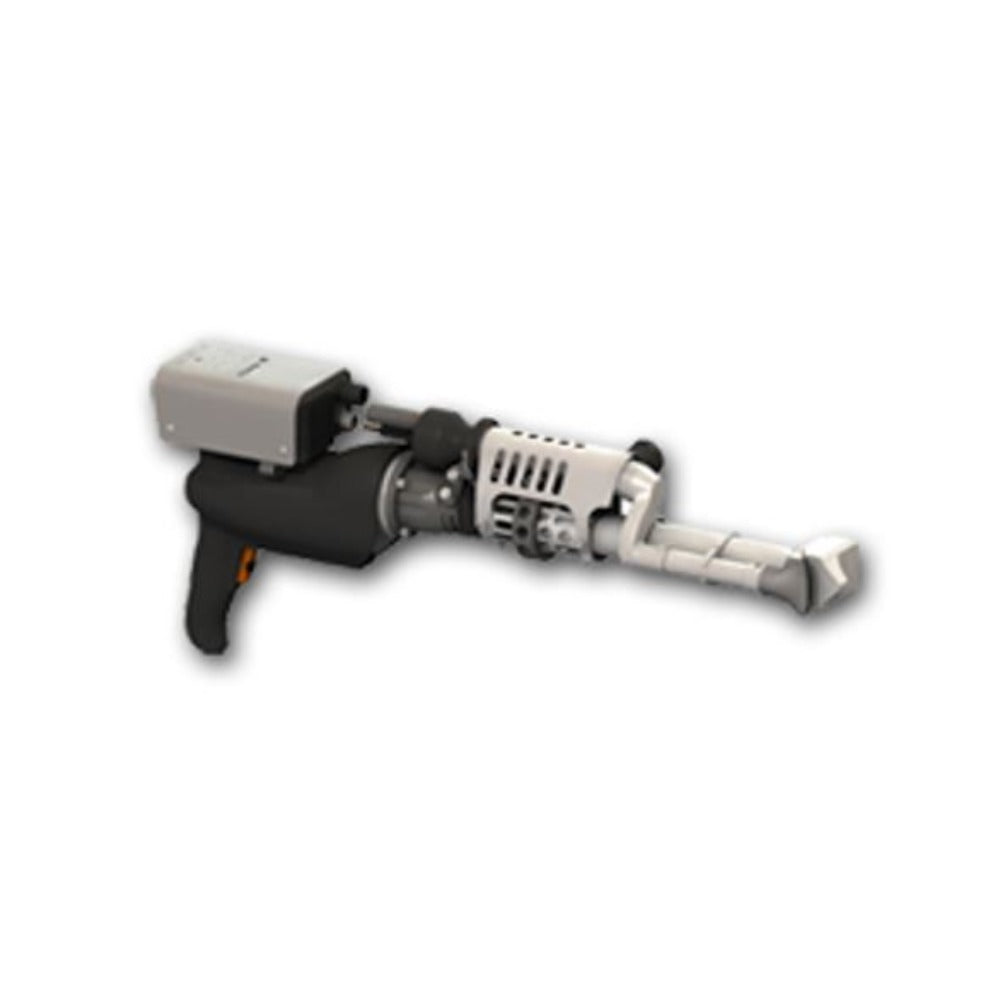

MEK-65-B c/w Powerbox

The "great“ workaholic beneath our extruders is completely brushless and therefore very low-wear. Long working times are its speciality. This version is using sideway preheating and therefore is developed for container engineering. For the usage of this machine a "Powerbox“ is needed.

Advantages

  • Brushless blower
  • Brushless drive

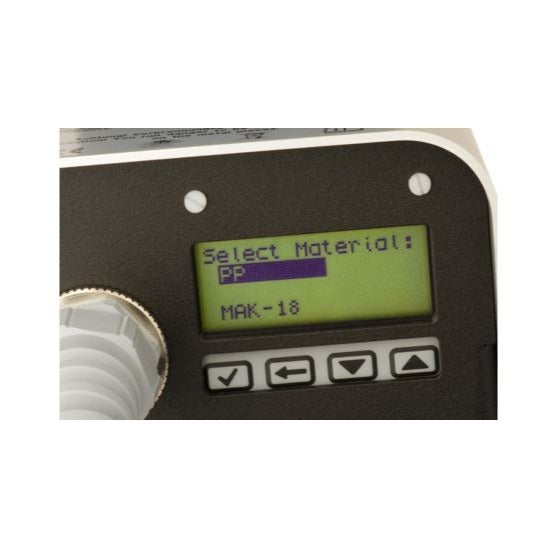

  • Comfortable user menu with automatic temperature setting
  • Three materials preset, more program spaces free to set your own material
  • Machine stand included, mounted
  • Speed can be varied via Powerbox and / or trigger

Technical Data

Max. welding capacity:

6.5 kg/h, Ø 5mm
4.0 kg/h, Ø 4 mm

Welding material:

PP / PE / PVDF

Material type:

Round rod Ø 4 / 5 mm

Application range:

Thicknesses from 12 – 40 mm

Weight:

9.4 kg

Length:

700 mm

Electronic Speedcontrol:

Yes

Mass heating:

800 W

Powerbox needed:

Yes

Preheating:

2300 W, for use with external air supply


We include for free:

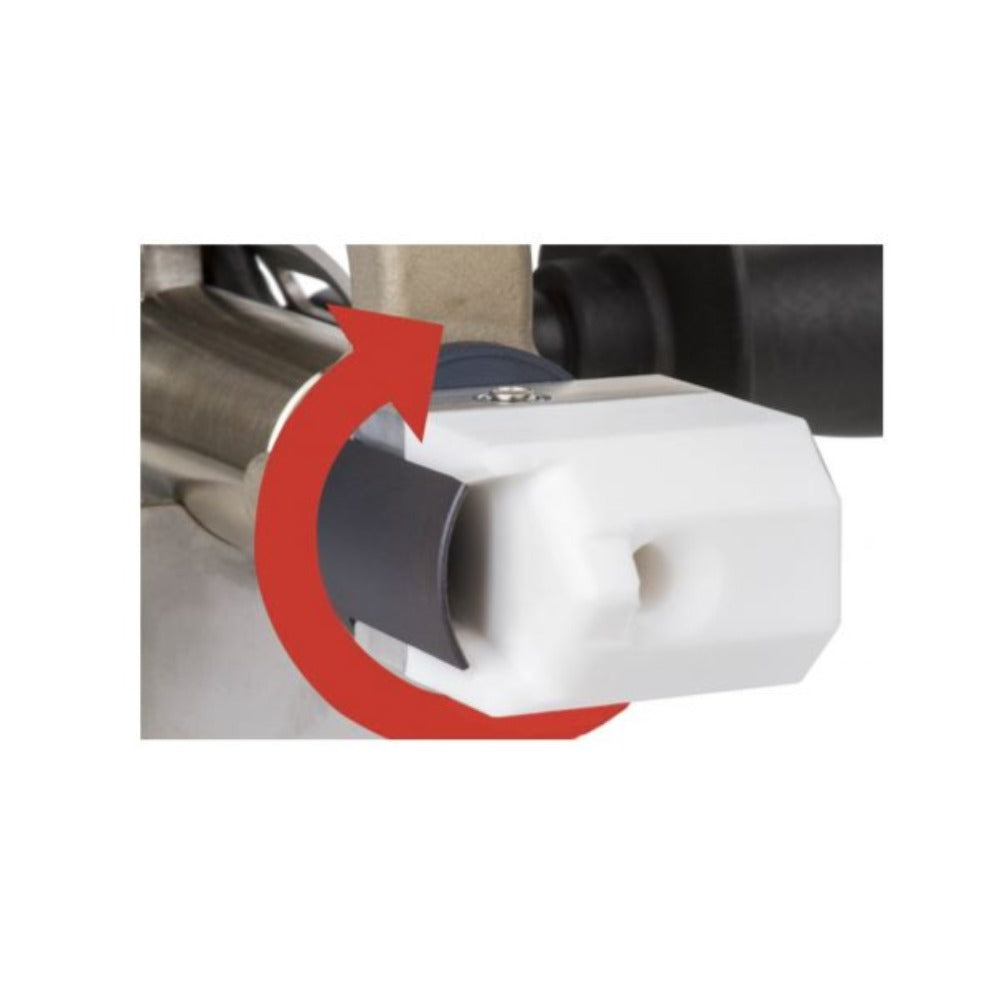

  • 1 welding shoe (shaped to customers’ needs)
  • Tool and maintenance kit
