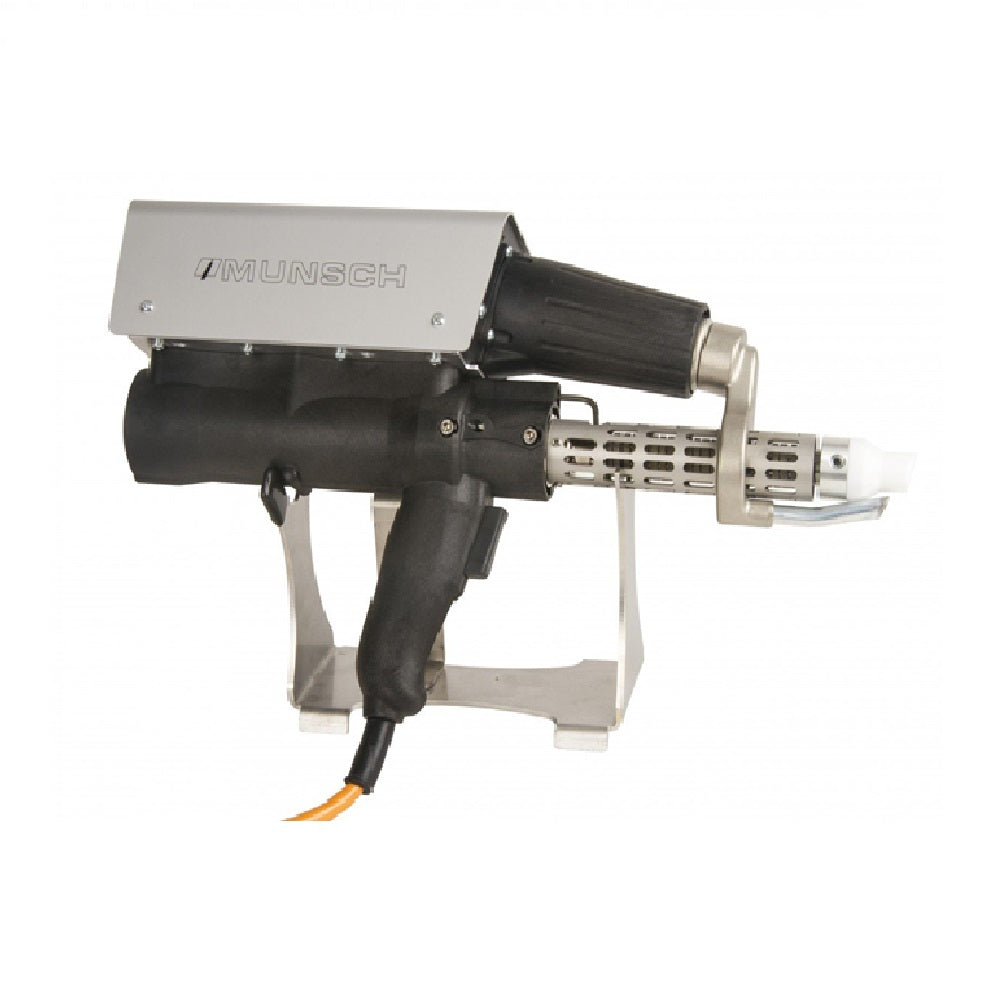

Mini Extruder
Small, light, reliable – the perfect partner for flexible plastic welding work.
The MUNSCH Mini is our most compact hand extruder – developed for maximum freedom of movement with a wide range of materials. Weighing just 3.5 kg, it is perfect for one-handed operation, especially in confined or overhead areas.
Despite its size, the Mini has impressive inner values: a precisely controllable heating system (DVS-compliant), separate temperature control for earth and air and a brushless fan for a long service life. Ideal for many common materials such as PP, PE, PVDF, PVC – even PFA and ECTFE in the special version.
Whether container construction, apparatus production or repair work – the Mini Extruder shows that true greatness is in the detail.
Features
- Compact & lightweight – only 3.5 kg for effortless working with one hand
- Ideal for tight spaces & precise handling
- DVS-compliant temperature control for reliable weld seams
- Suitable for numerous materials – incl. PFA / ECTFE (special model)
- Brushless blower – durable and low-maintenance
- User-friendly menu with 4 material presets + free memory locations
- Optional: folding side handle for even more ergonomics
- Delivery incl. device stand & transport box
Technical Data
| Max. welding capacity | 0.6 kg/h, Ø 3mm |
| Welding material | PP/PE/PVDF |
| Material type | Round rod Ø 3mm |
| Application range | Thicknesses up to 10mm |
| Weight | 3.5kg |
| Length | 450mm |
| Electronic Speedcontrol | Electronically, on controller |
| Mass heating | 875 W |
| Drive | Brushed type |
| Preheating | 2300W |
