Munsch Plastic Welding

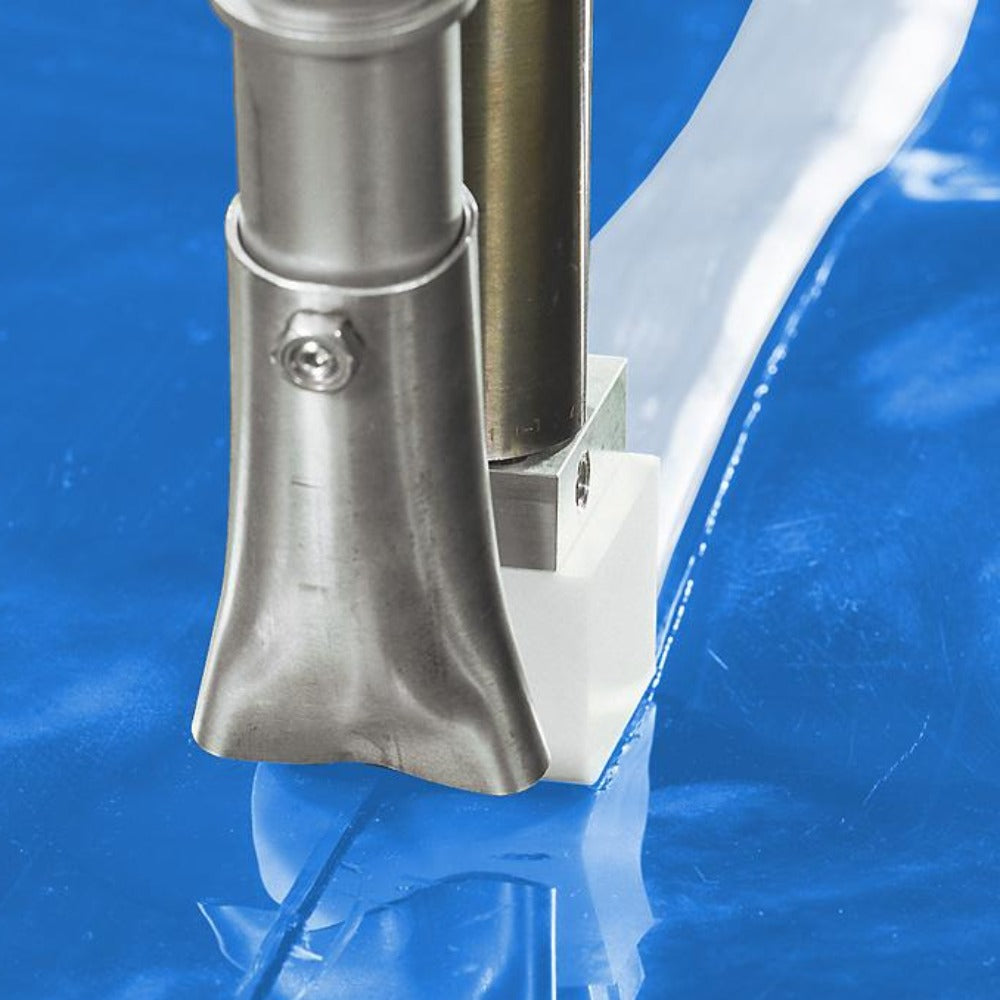

Overlap Film Welding shoe to MUNSCH Extruder Series 32 to 65
Application |
Overlap-Weld and for welding foils |
Geometrix |
0° |
max. material measurement a |
20, 25, 30 or 40 mm |
Length of the welding shoe |
40 mm |
Manufacturer Item No. |
43.01xx F |
Matching for Extruders: |
MAK 32, 36-B, 36-D, 40-B, 48-D, 58-B, 58-D and 65-B |
Holder included: |
yes |

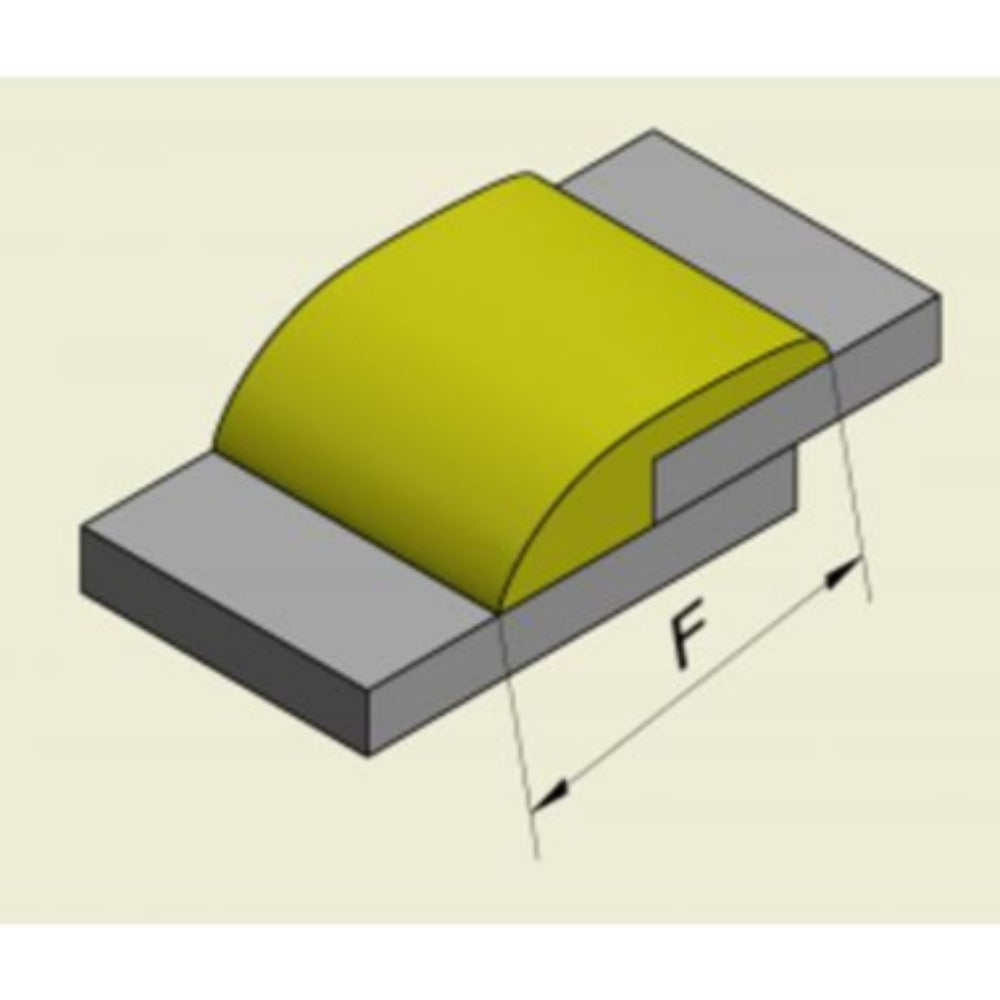

Please choose the desired material strength a.
Assistance to measure "a":
To determine the dimension "a", you can multiply the plate thickness by 0.7. For example, 20 mm plate x 0.7 = 14 mm for the dimension a.
