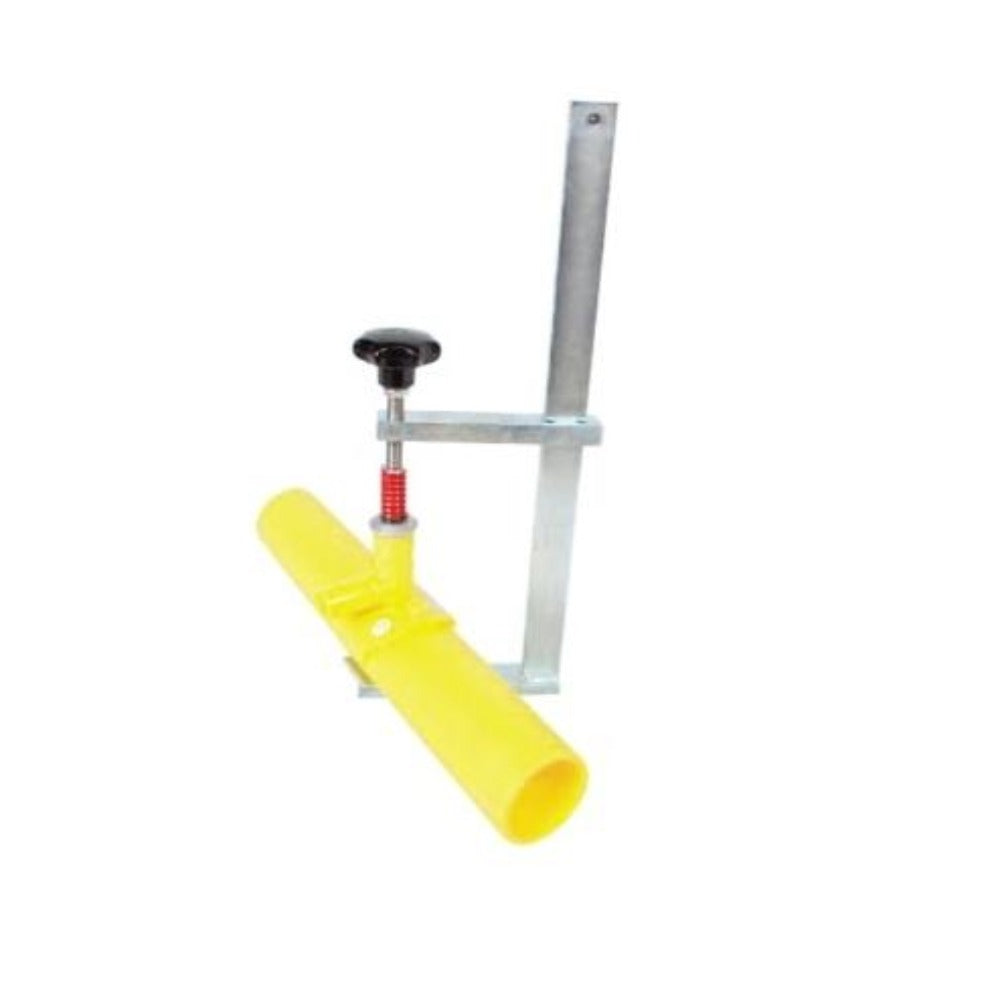

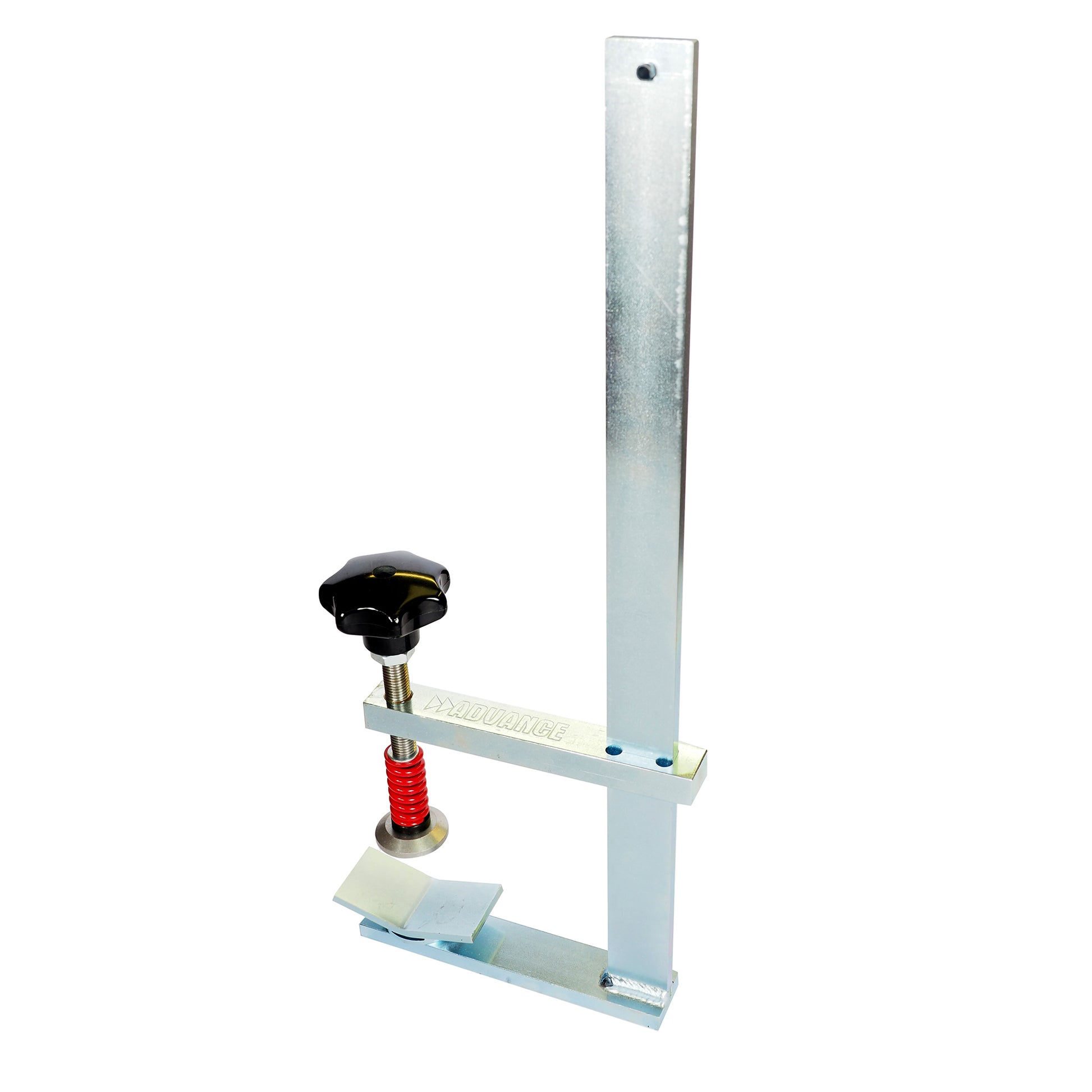

Saddle Clamp, 32 - 250mm

Saddle Clamp has been designed to hold saddles onto the pipe at the correct pressure, before and during the electrofusion process.

It works with tapping saddles, branch saddles, and purge saddles.

The tool has been designed to work on saddles that have a 32mm stack. Saddles with stacks of 63mm, 90mm, and 125mm can be held using a special adapter foot.

Features

• The arm automatically locks into position when pressure is applied to the saddle.
• An indicator button in the middle of the handle shows when the tool is loaded to the correct pressure.
• The pipe holding foot will rotate to allow the tool to be used in a narrow trench.

Technical Data
