Rob-Extruder
Less weight. More Power. Made for Robots.
MUNSCH Rob-Extruder – Automated plastic welding, rethought.

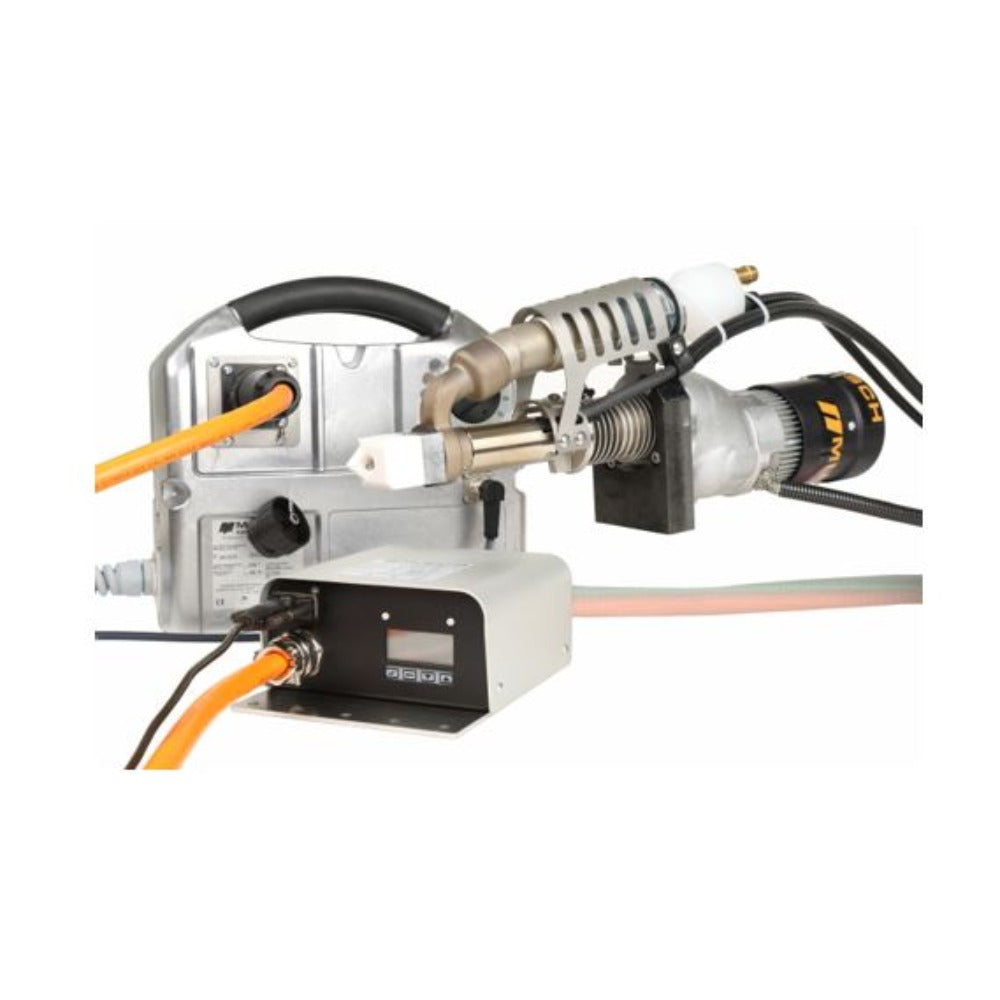

Our Rob extruders have been specially developed for use on robot arms: particularly light, precise and robust. By separating the extruder unit and control unit, the weight on the robot can be drastically reduced – for smaller robots, higher speeds and better maneuverability.

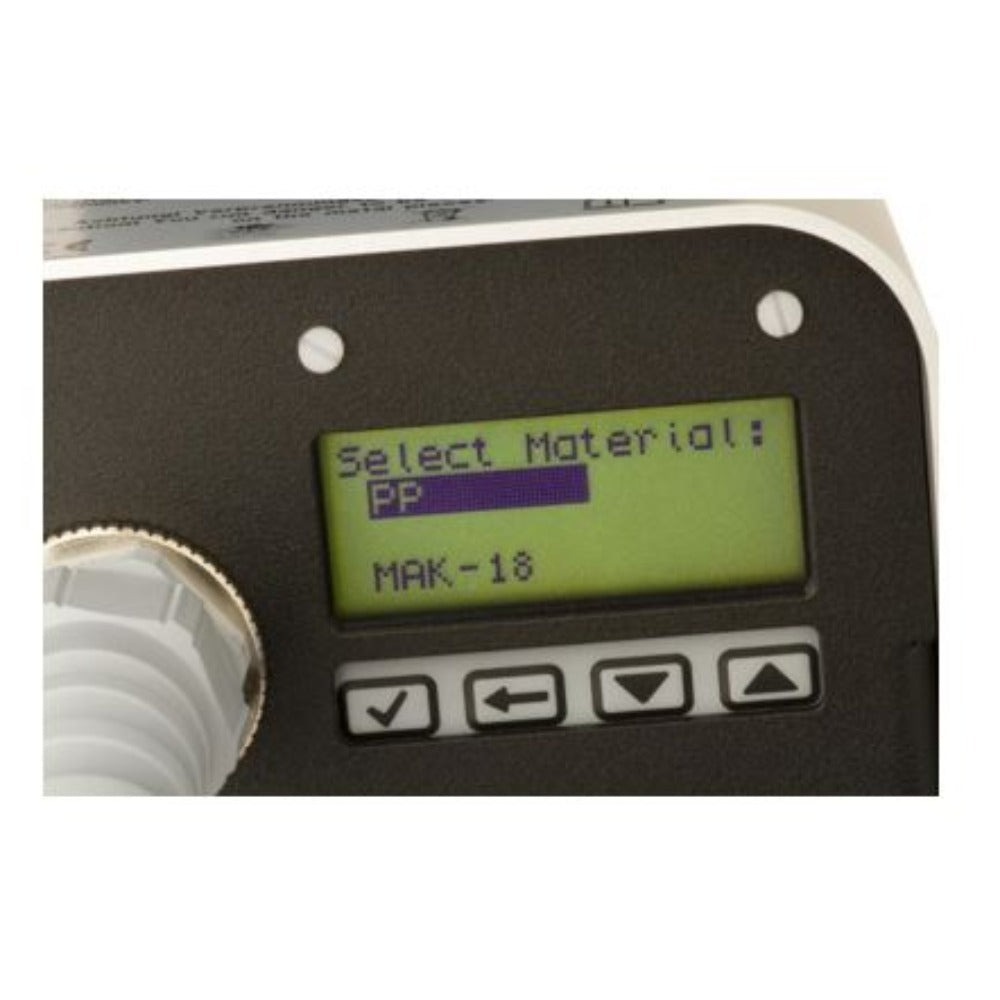

Whether as a wire or pellet version, the Rob extruder delivers constant welding performance – reliably, efficiently and with low maintenance. It is conveniently controlled via RS232 interface and 5V DC signal, ideal for integration into modern automation solutions.
Automate repetitive welding processes – with proven MUNSCH technology for the highest quality.
Advantages
- Low weight on the robot arm
- Brushless drives – low-maintenance & durable
- Wire and granulate version available
- Compatible with external air system
- Simple control via RS232 / 5V DC
- Including 3D models for system integration
Technical Data
| Max. welding rate: | 7.3 kg/h* |
| Welding material: | PP / PE / PVDF |
| Material type: | Granulate / Rod |
| Application range: | Thicknesses 10 – 50 mm |
| Weight: | max. 16.3 kg |
| Electronic Speedcontrol: | yes |
| Mass heating: | 400 / 800 W |
| Powerbox needed: | yes |
| Preheating: | 2300 W** |
* On Granulate Extruders depending on type and size of the granulate
** Extruder also available without preheating
