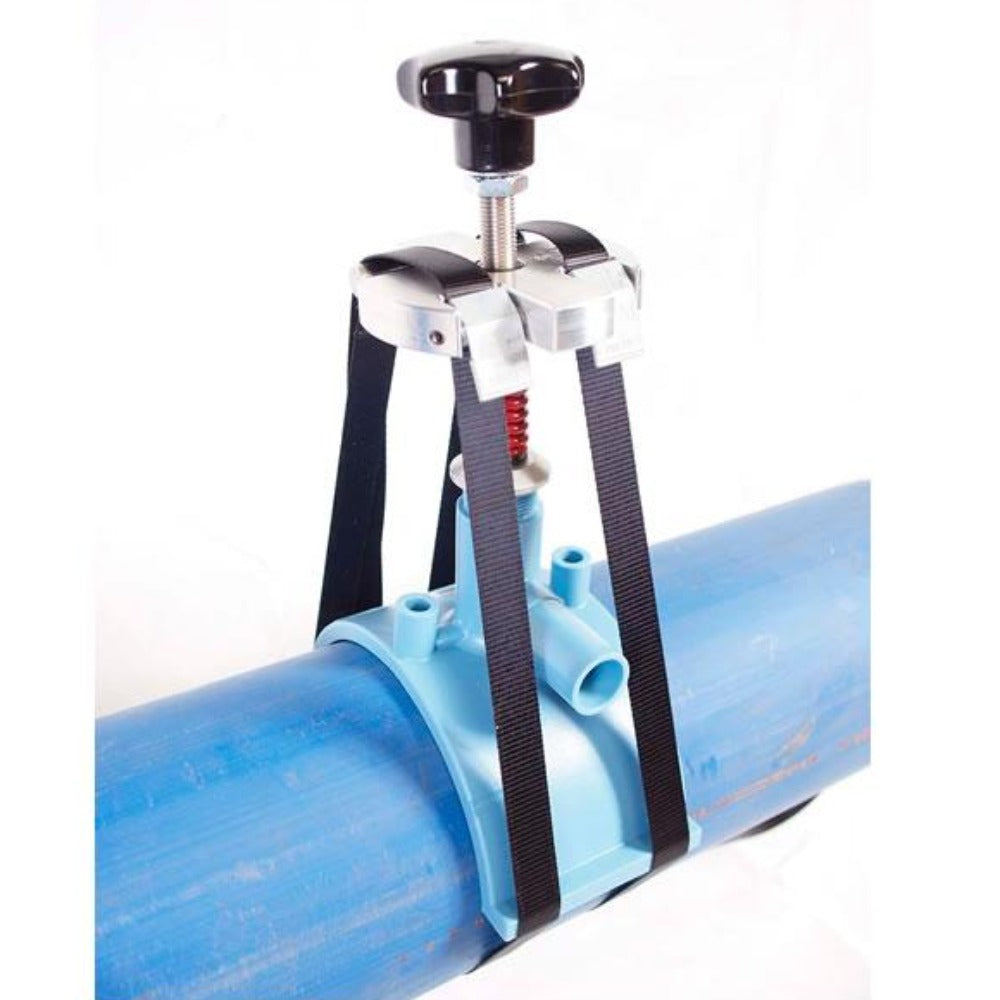

Saddle Clamp, 32 - 500mm
Saddle Clamp has been designed to hold saddles onto the pipe at the correct pressure, before and during the electrofusion process.
It works with tapping saddles, branch saddles, and purge saddles.
The tool has been designed to work on saddles that have a 32mm stack. Saddles with stacks of 63mm, 90mm, and 125mm can be held using a special adapter foot.
Features
- Quick release straps hold the tool onto the pipe with minimal obstructions.
- Any size of pipe can be clamped up to 500mm.
- An indicator button in the middle of the handle shows when the tool is loaded to the correct pressure
Technical Data
Operating Range | 32mm to 500mm |
Operating Type | Top loading clamp |
Size | 23 x 13 x 13cm |
Weight | 1.2kg |
Operating Temperature | -50C to +60C |
