Munsch Plastic Welding

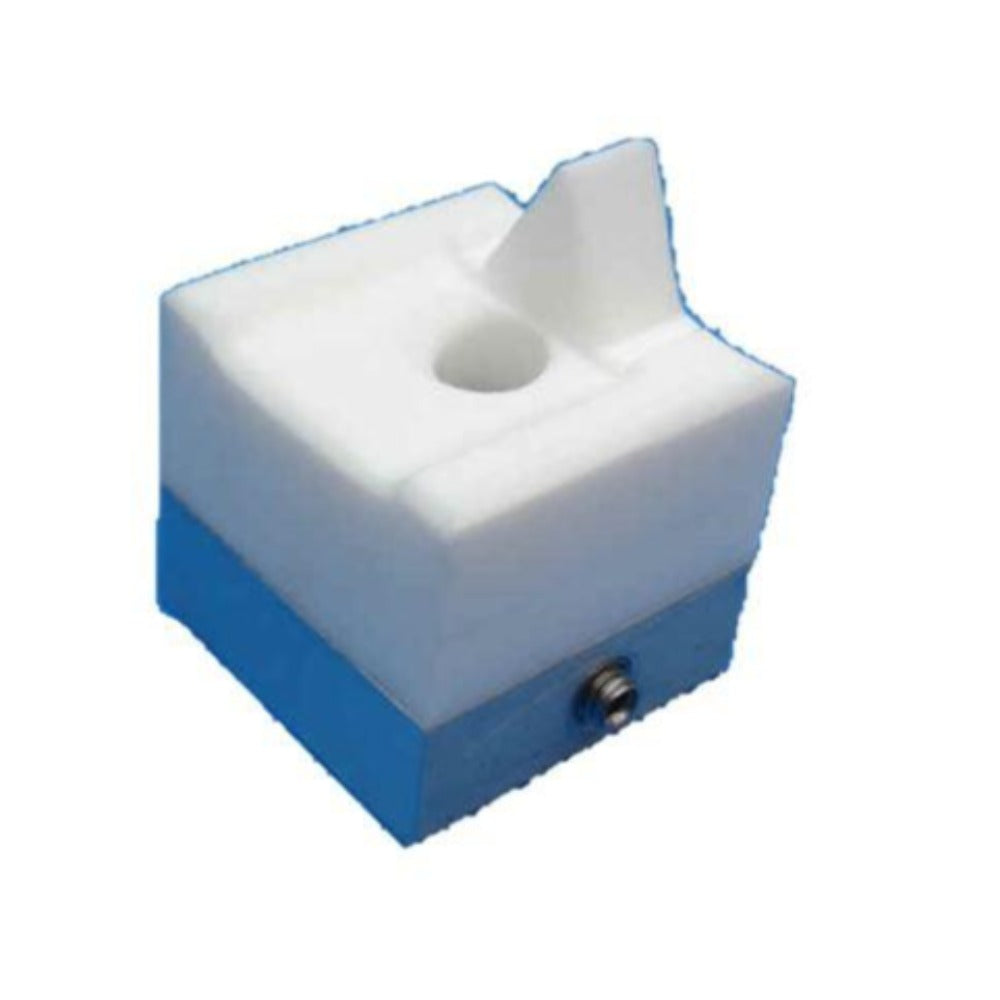

V Welding shoe to MUNSCH Extruder Series 32 to 65
Application |

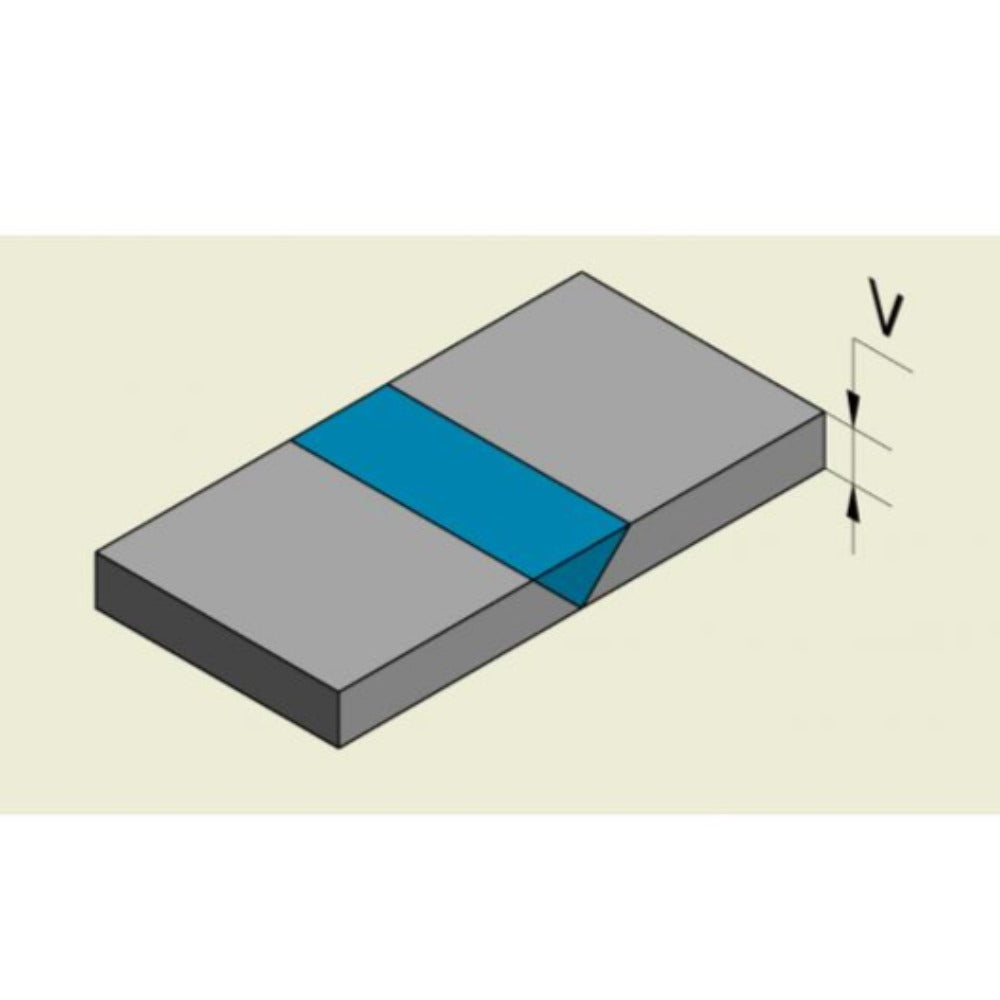

V-Weld or X-Weld |
Geometrix |
45° |
max. material measurement a |
8. 10. 12. 15. 20 or 25 mm |
Length of the welding shoe |
40 mm |
Manufacturer Item No. |
43.01xx V |
Matching for Extruders: |
MAK32, MAK 36-B, 36-D, 40-B, 48-D, 58-B, 58-D und 65-B |
Holder included: |
yes |
Please choose the desired material strength a.
Assistance to measure "a":
To determine the dimension "a", you can multiply the plate thickness by 0.7. For example, 20 mm plate x 0.7 = 14 mm for the dimension a.
