Munsch Plastic Welding

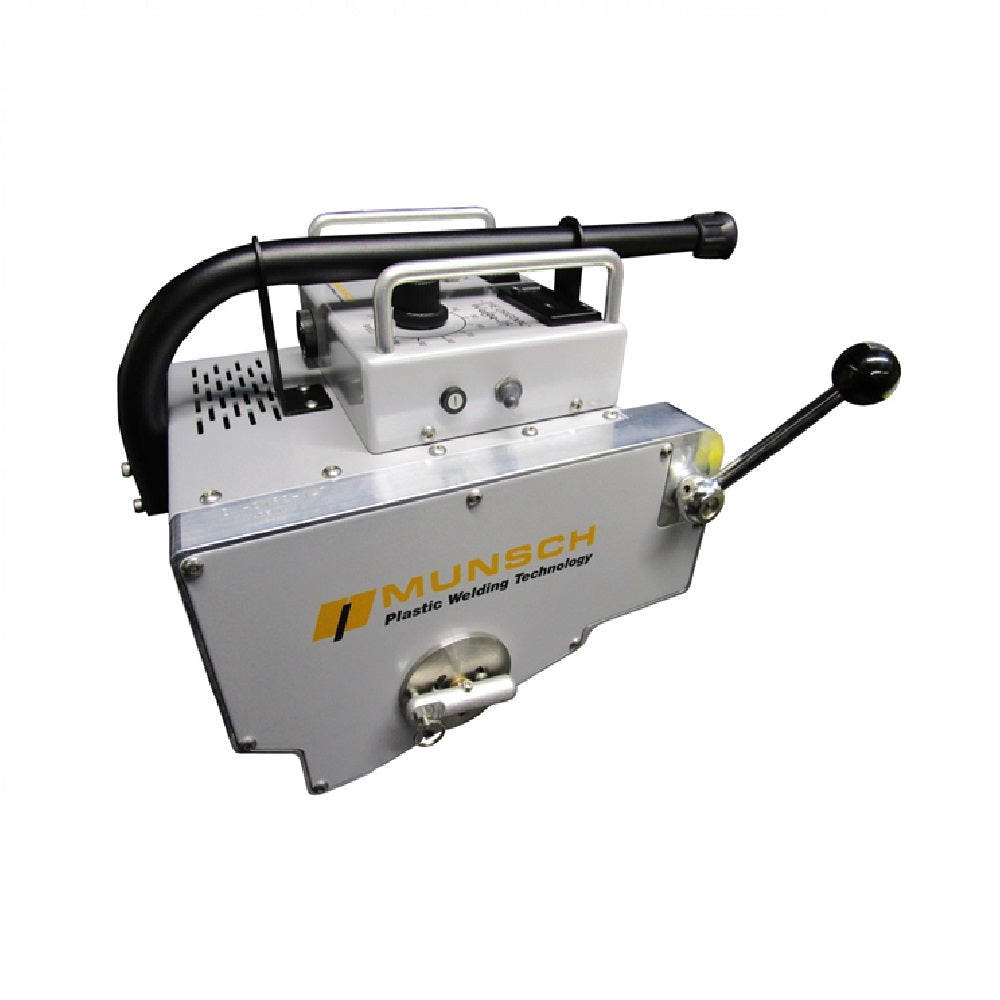

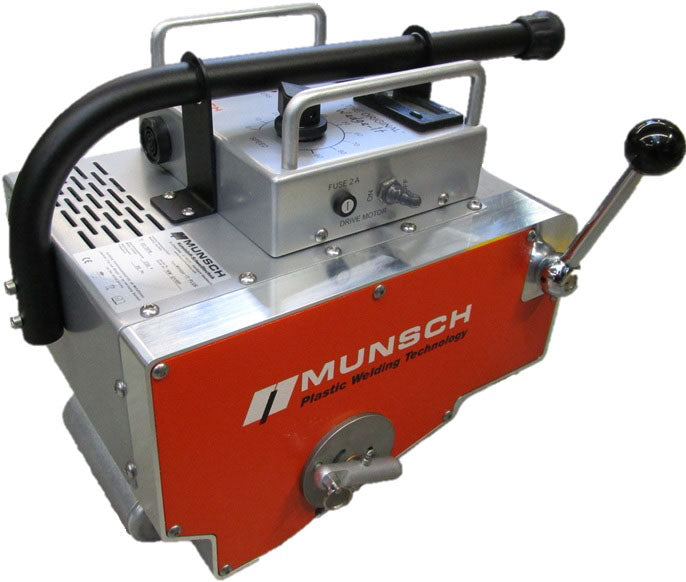

Wedge-It-PLUS

The logical further development of the Wedge-It-2000. This “giant” among our automatic film machines can easily process films between 1.0mm and 2.5mm and is equipped with 12 pressure rollers. It works with a copper heating wedge as standard, but can be converted to stainless steel (for PVC welding) on request. The special feature of this machine: you can switch between 220V and 110V.

Features
  • Simple and robust design
  • All parameters can be set in advance
  • Enormous heat output and therefore high welding speed
  • Up to 30% faster than Wedge-It-2000 due to better contact pressure
  • Transport box included

Technical Data

Welding speed 0 - 6m/min
Welding material PP/ PE-HD/ PVC
Material thicknesses 1.0 - 2.5mm
Weight 24.0kg
Power consumption 2500W
