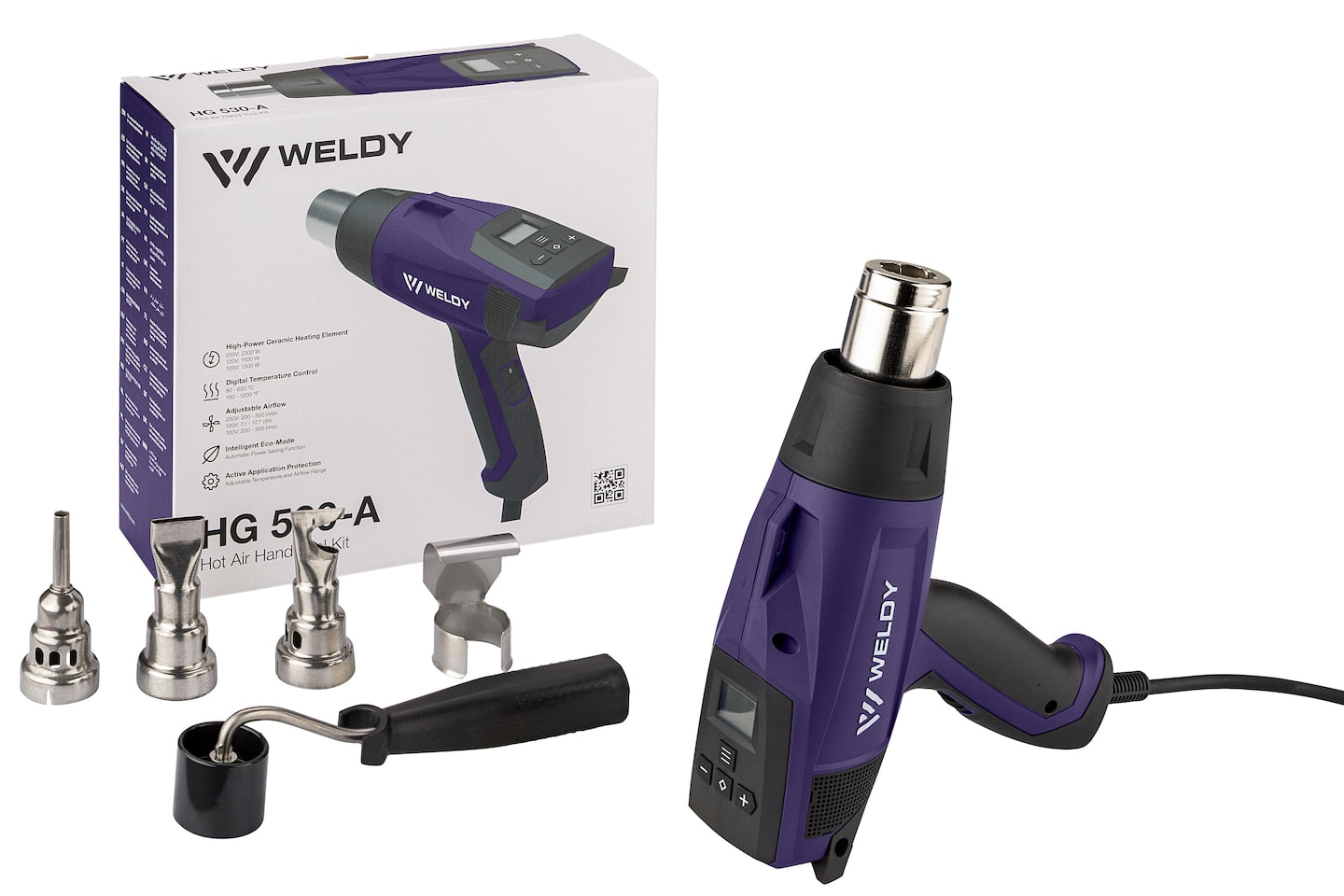

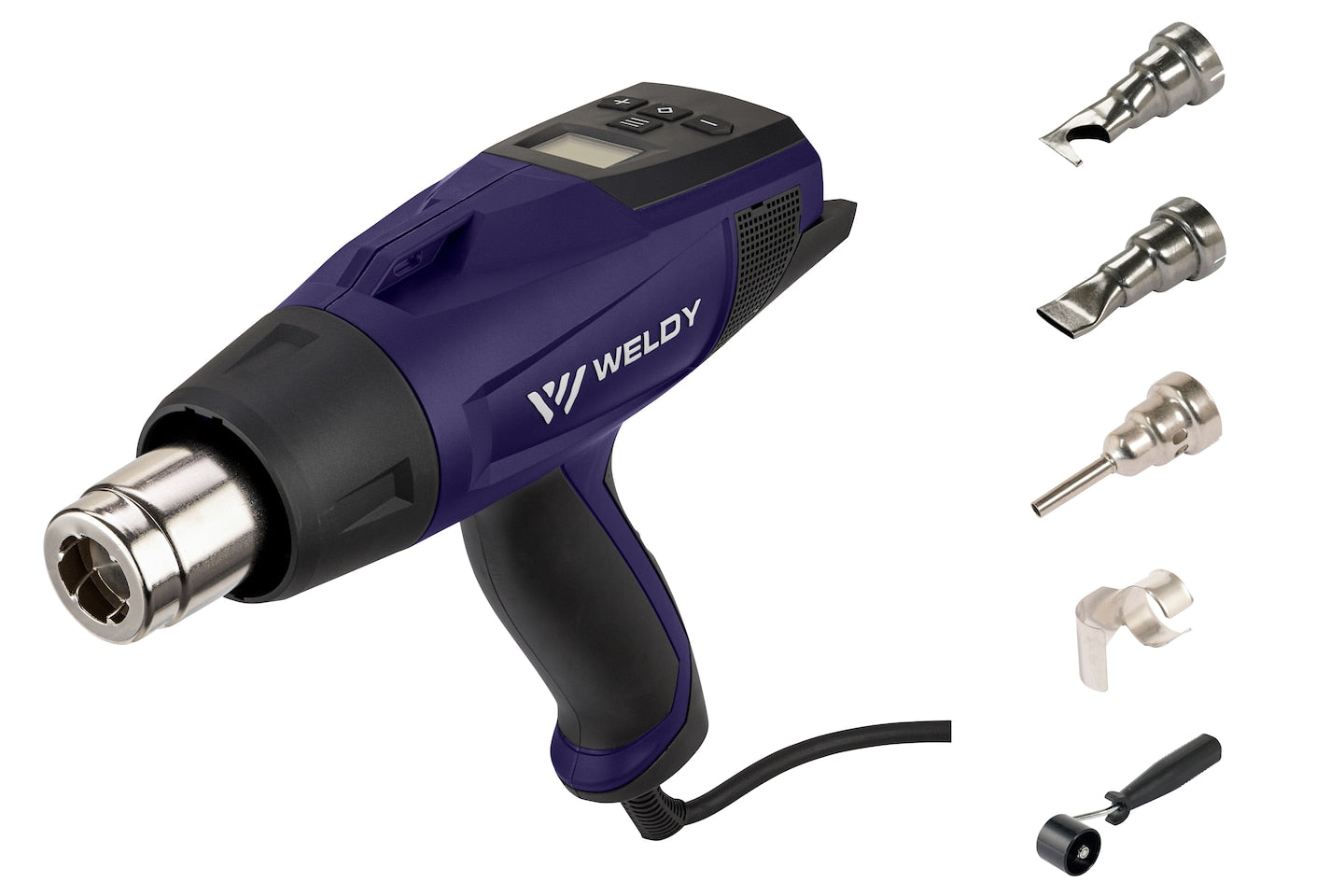

Weldy HG 530-A, 230V/2300W, UK-plug, kit (4 nozzles and pressure roller)

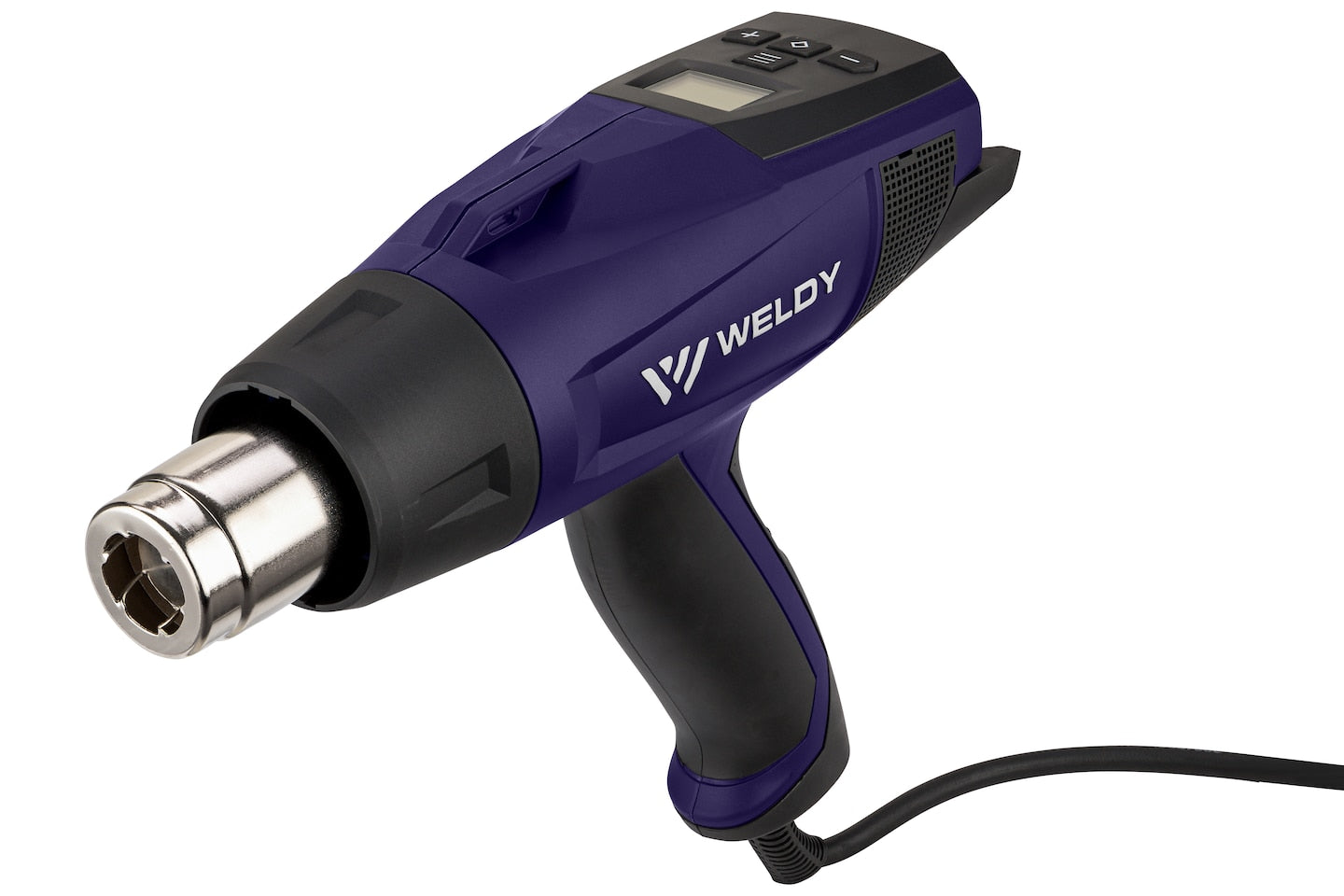

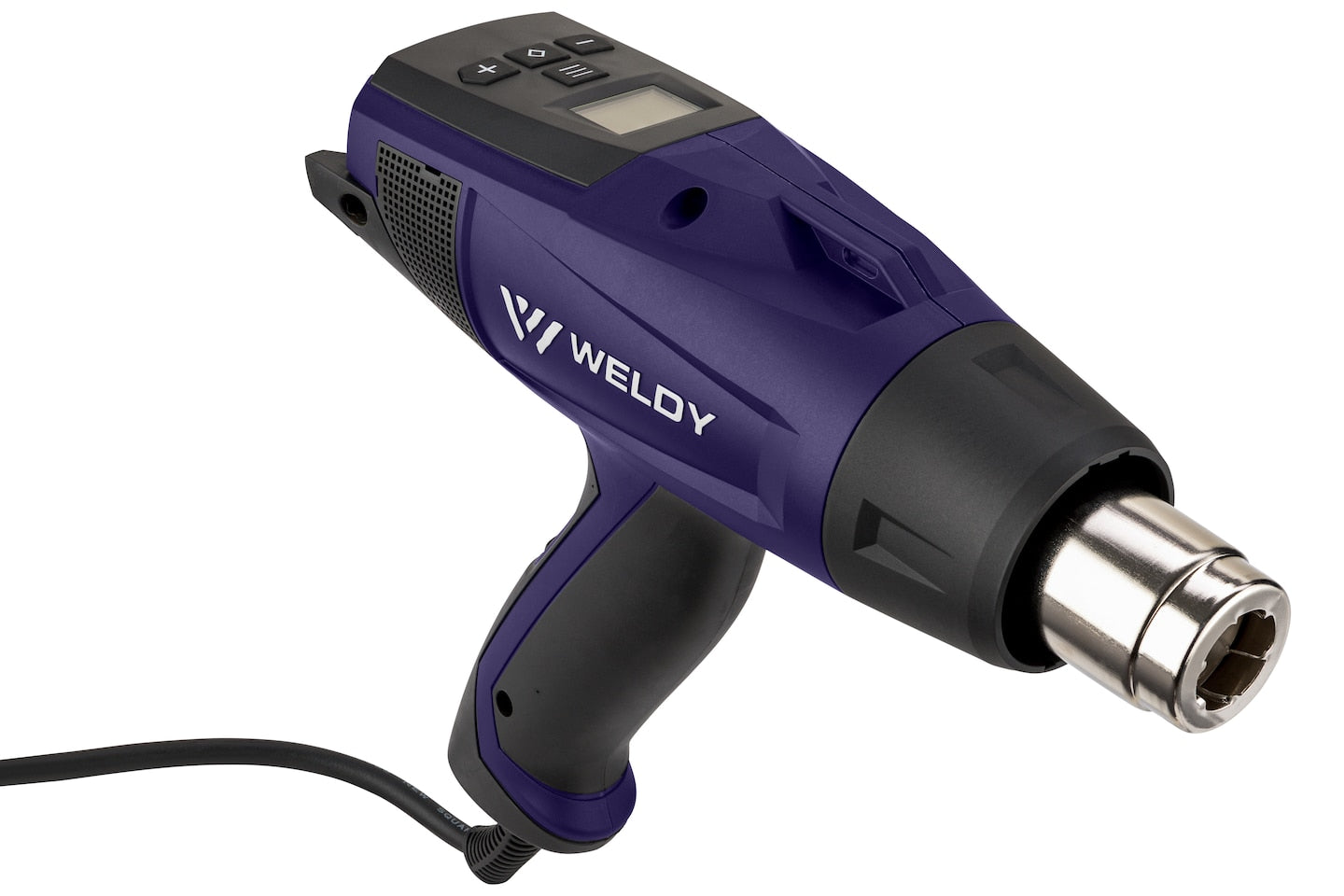

The HG 530-A is a compact, lightweight, and ergonomic Weldy heat gun. Due to its high heating and blower capacity, it is one of the more powerful heat guns from Weldy. Infinitely variable, digital temperature control keeps a constant operating temperature between 80 °C to 650 °C respectively 176 °F and 1202 °F regardless of the air quantity setting and the nozzle accessory used. The multifunctional HG 530-A heat gun is suitable for wide variety of industrial applications, including car wrapping, cable shrinkage, loosening screws or fittings, etc.


The configurable energy-saving eco mode is activated via its sensor as soon as the operator puts the heat gun down. Weighing just 750 g / 1.65, the HG 530-A can be used for prolonged periods in hot-air applications without fatigue. Its soft-touch handle and well-balanced design ensure that it can be held securely and comfortably for any hot-air application. Additional functions including digital temperature control and eco mode set it apart from other products on the market, as well as the HG 530-S heat gun.

Highlights
  • high heat and blowing performance
  • Constant working temperature
  • For industrial use

Applications

  • Cable shrinking
  • Colour removal
  • Foil shrinking
  • Plastic forming
  • Vehicle body upholstering

Technical Data

VOLTAGE 230 V
FREQUENCY
 50/60 Hz
POWER 3000 W
TEMPERATURE
 80 - 650 °C
TEMPERATURE SETTING STEPLESS
 Yes
AIR FLOW (20°C) 200 - 550 l/min
STEPLESS AIR VOLUME ADJUSTMENT Yes
ECO-MODE Yes
DISPLAY No
OUTDOOR USE No
NOZZLE CONNECTION Ø 35.5 mm / 1.4 in
DIMENSION (L x W x H) 250 x 80 x 230 mm
HANDLE DIAMETER 45 mm
WEIGHT 0.75 KG
POWER CABLE LENGTH 2.0 M
PLUG UK, 3 poles, 13A
NOISE EMISSION LEVEL
 67 dB (A)
CONFORMITY MARK
CE
PROTECTION CLASS
 II
COUNTRY OF ORIGIN
 CN
