Weldy roof40, 230V/3450W, CEE 3/16
The universal welding machine roof40 from Weldy is designed to handle various requirements, making it suitable for all roofing applications and overlap welding of technical textiles or industrial fabrics. Whether you need to weld close-to-the-edge on roofs, in narrow areas down to 100 mm, or overlap welding tarpaulins, banners, or films, the roof40 is the ideal choice. The patented drive allows the roof40 to handle inclines up to 30 degrees with ease.
It stands out from the crowd thanks to its intuitive, display-based operation and ability to easily set all welding parameters such as speed, air flow range and temperature. Its well-balanced, ergonomic design and low weight also make it easy to operate. With all of this in mind, the roof40 from Weldy is a universally usable overlap welding machine that’s suitable for a wide range of requirements and applications.
Highlights
- Can be used universally from the roofs to advertising banners

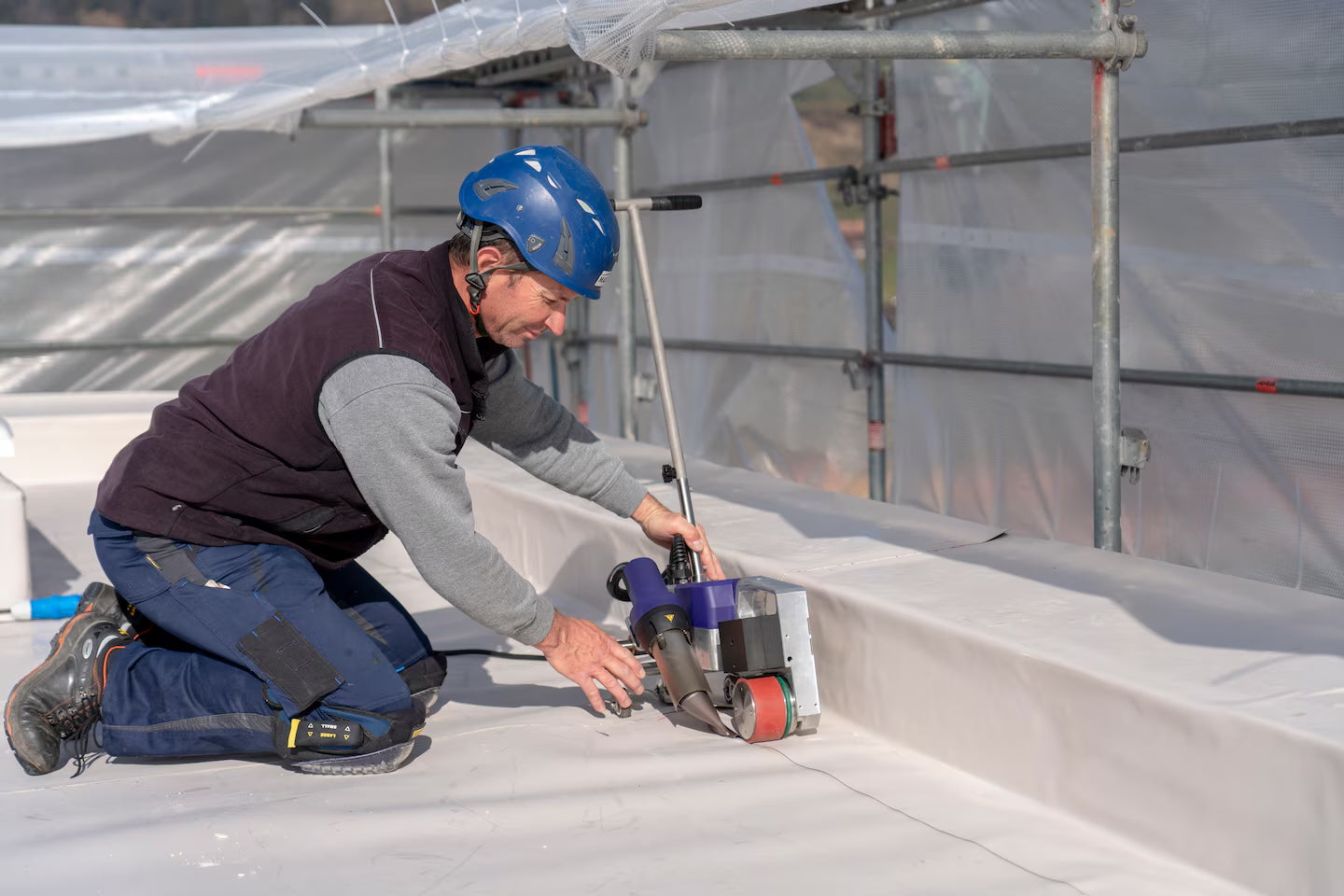

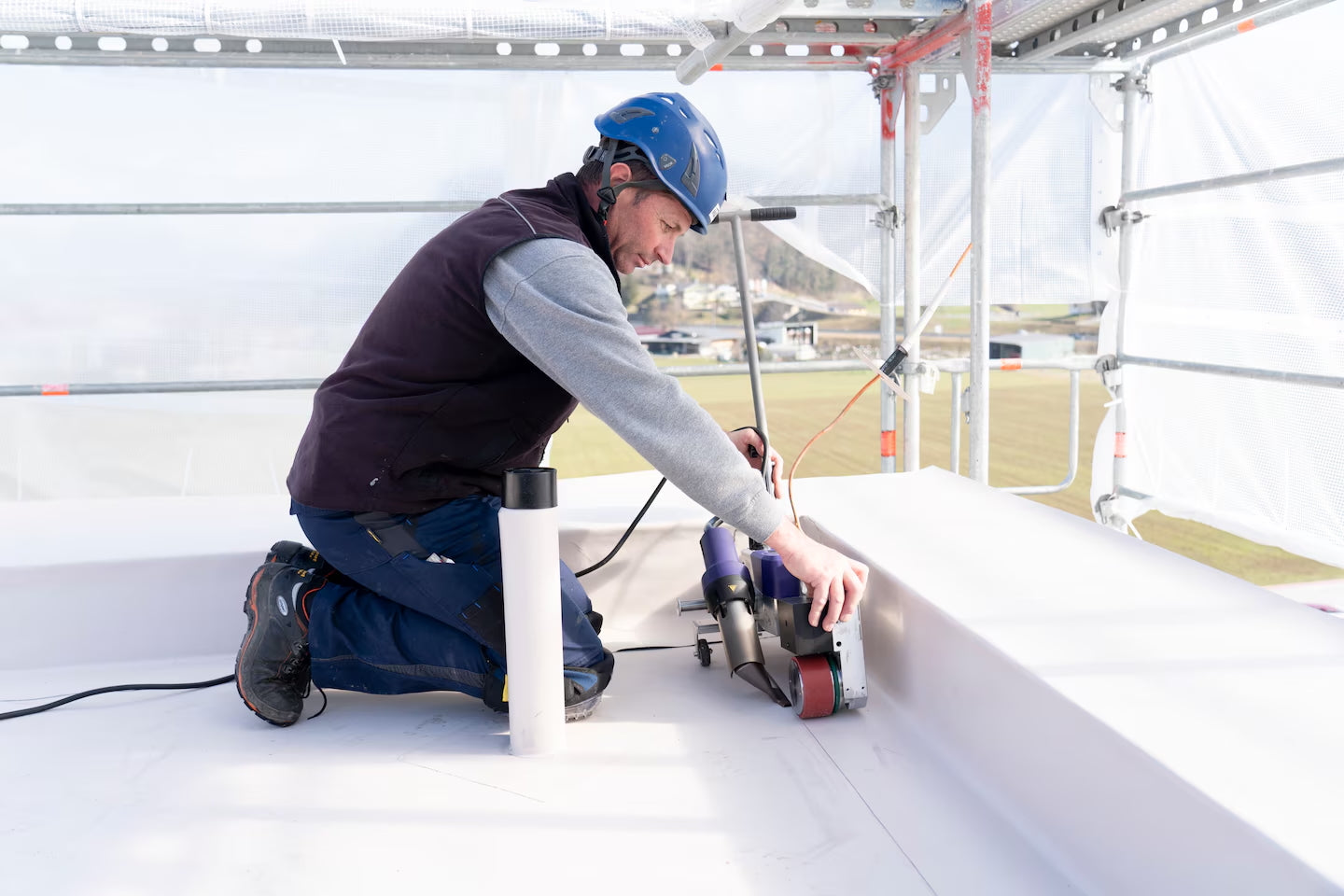

- For close–to-the-edge welding up to 100 mm
- Low-maintenance, brushless drive
- Ergonomic and only 16 kg

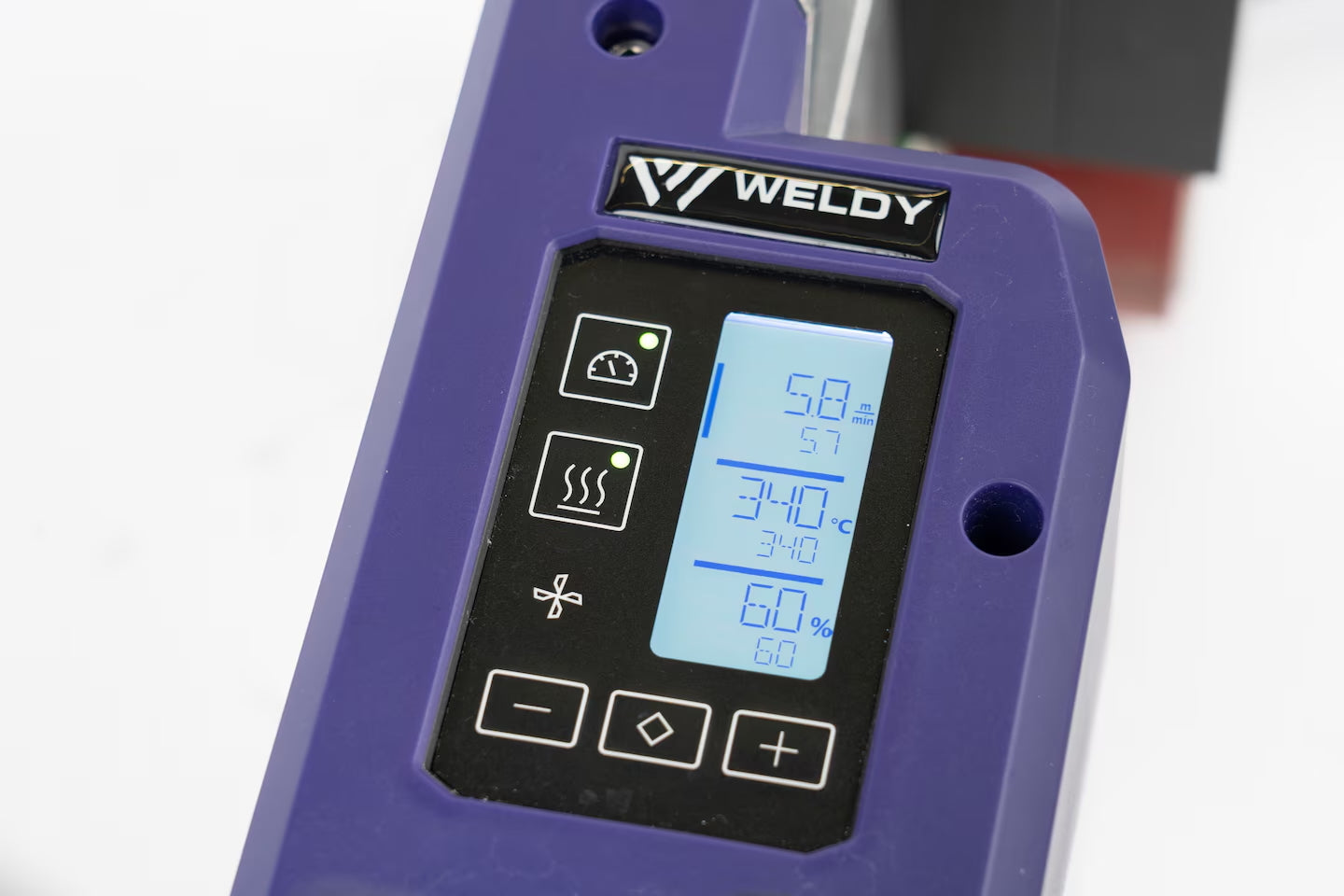

- Welding parameters intuitively adjusted via display
Applications
- Bitumen Welding
- Flat ROof Membrane Welding
- Pitched Roof Membrane Welding
- Pool Waterproofing
Technical Data
Frequency | 50/60 Hz |
Power | 3450 W |
Speed | 1 - 10 m/min |
Temperature | 100 - 600 °C |
Air Volume Adjustable | Yes |
Welding Nozzle / Seam Width | 40 mm |
Welding Materials | ECB; EPDM; EVA; FPO; PIB; PVC; TPE; TPO; TPU |
LQS | No |
Brushless Blower Motor | No |
Length | 475 mm |
Width | 244 mm |
Height | 260 mm |
Weight | 15.5 kg |
Plug | CEE Blue, 3 poles, 16A |
Power Cable Length | 3 m |
Protection Class | I |
Additional Description | No CE – no use in Europe |
Country of Origin | P.R. China |
