WIDOS Maxiplast (OD 50 to OD 160mm)

OD 50 up to OD 160 mm | construction site | workshop | PE, PP, PVDF | butt welding | manual

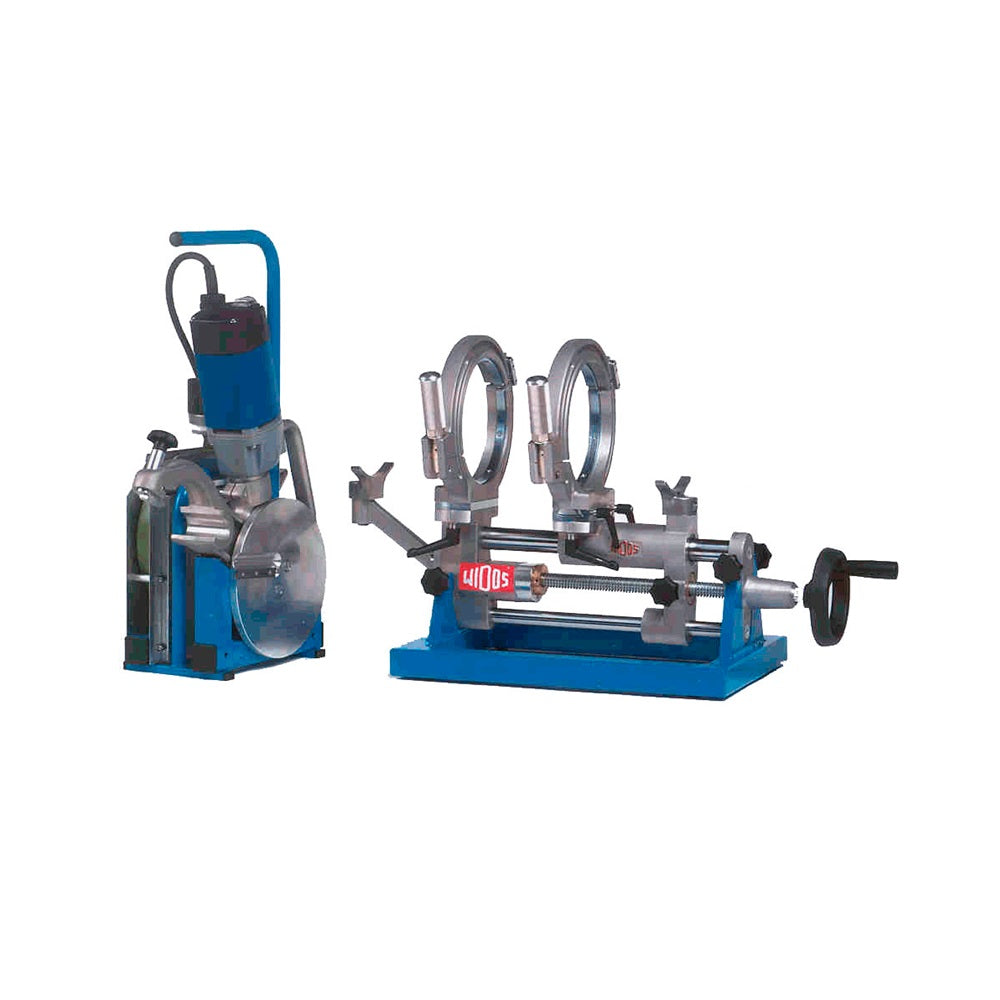

The WIDOS Maxiplast is a welding machine for the heating element butt welding of PE, PP and PVDF pipes and fittings from OD 50 to OD 160. Due to the compact and solid design, the machine is ideally suitable for the usage at places with difficult access under on-site conditions. For the stationary usage, an additional base frame is available which enables to use the machine as table set. The solid basic machine has two aluminum clamping tools swiveling each for 15° for the fabrication of segmented bends. By using different reducer inserts of a small, large or extra-large type, all clamping options can be realized. For fittings with extremely short legs, solid steel clamping tools in small version are available. The solid base with ball-bearing guidings, spindle and power input damped by springs enables quick movements for short change-over times as well as a soft pressure build-up.

The WIDOS Maxiplast can be used in the workshop, on the construction site, and for the installation. The 13.3 kg make handling the WIDOS Maxiplast very easy and the machine can be used in many ways. Pipes and fittings from OD 50 up to OD 160 can be welded. By using different reducer inserts of a small, large or extra-large type, all clamping options can be realized. For fittings with extremely short legs, solid steel clamping tools in small version are available. The solid base with ball-beared guidings, spindle and power input damped by springs enables quick movements for short change-over times as well as a soft pressure build-up. The solid planer with electric drive has been optimized with respect to a most simple handling. The electronically controlled heating element features an anti-stick coating of high quality, an external mains switch and a control lamp for interval checking. The exact temperature control meets all requirements of DVS 2208. For the safe storage of heating element and planer, a solid and easily portable heat protected box is available. The complete machine can be transported and stored in a transport case with additional compartments for all reducer inserts.

Including the following accessories:

  • Basic machine with 2 clamping tools OD 160mm
  • Table support
  • Heating element 230V/ 800W
  • Planer 230V/ 950W
  • Heat-protected box
  • Reducer inserts (1 set = 4 half shells and 2 pipe support): OD 50, OD  63, OD 75, OD 90, OD 110, OD 125 , OD 140 (half shells and pipe support), OD 160 (pipe support only)
  • Allen key, size 3
  • Allen key, size 4
  • Transport case (78 x 52 x 63cm)
